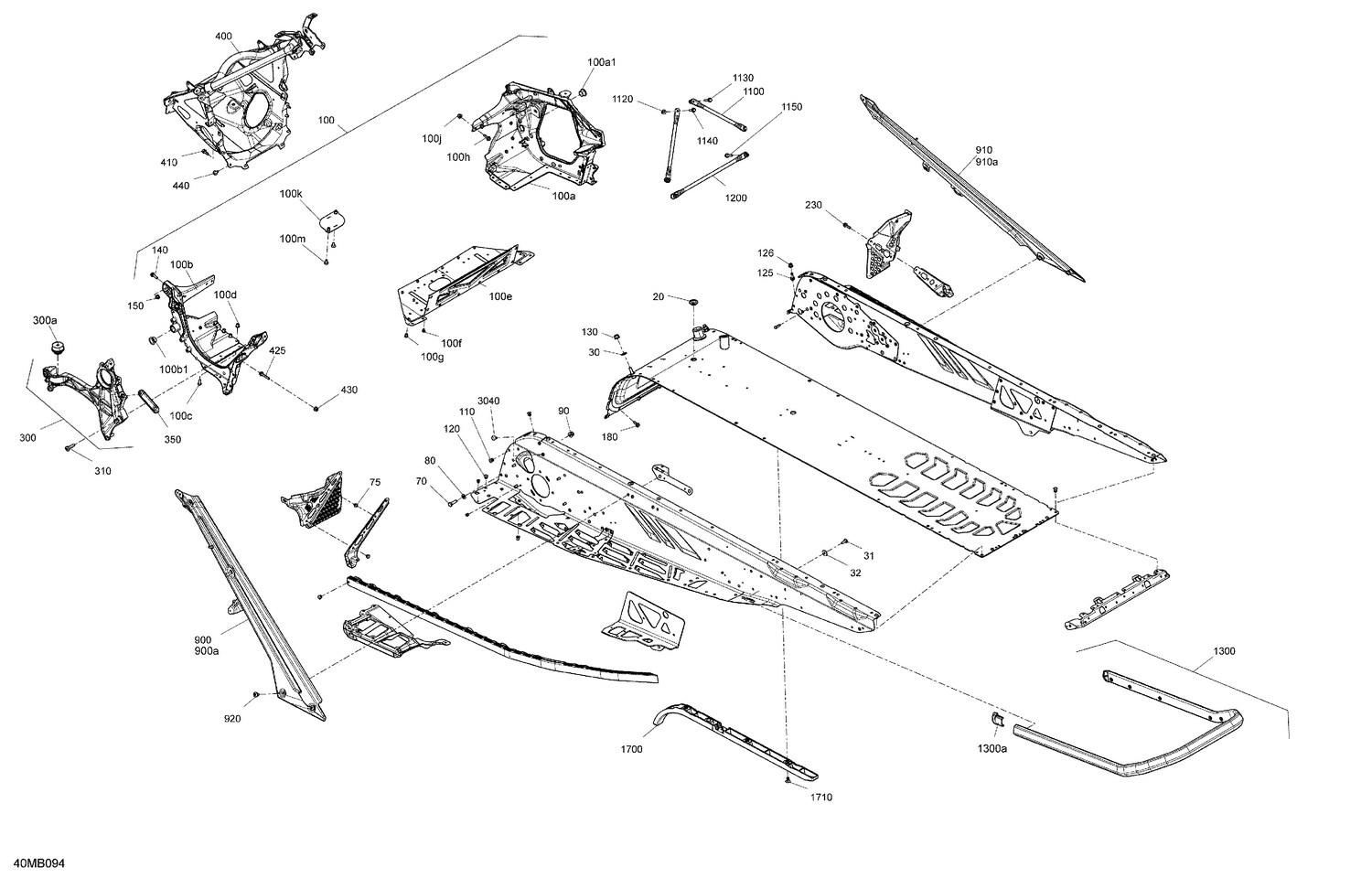

06- Frame - System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293730052 | Black, Plug |
| 30 | 250200146 | Conical Spring Washer M8 |
| 31 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 | 224061201 | Flat Washer |
| 70 | 250000942 | Hex Screw M8 X 30 |
| 75 | 293150096 | Hemlock Rivet, 6.5 mm |
| 80 | 234081410 | Flat Washer 8 mm |
| 90 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100a1 | 505072690 | Leg Bushing |
| 100b1 | 505072690 | Leg Bushing |
| 100c | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 100d | 293150149 | Collar Huck Magna-Grip 6.4 |
| 100e | 518332715 | Bottom Plate |
| 100f | 390909100 | Avex Rivet |
| 100g | 293450268 | Insert M5 X 0.8 |
| 100h | 207662046 | Hex. Flange Screw M6 X 20 |
| 100j | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100k | 518332276 | Oil Plate |
| 100m | 250000767 | Torx Truss Screw M6 X 12 |
| 110 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 | 293150174 | Hemlock Rivet, 6.4 mm |
| 125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 126 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 130 | 233281414 | Hex. Flange Elastic Nut M8 |
| 140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 150 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 180 | 207661646 | Hex. Flange Screw M6 X 16 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 300a | 512061516 | Vibration Damper This part replaces 512060295. |
| 310 | 250001060 | Screw-Pan HD.Torx M8X30 |
| 350 | 518331740 | LH Front Chassis Reinforcement |
| 400 | 518334551 | Chassis Suspension Module Ass'y This part replaces 518332098. |
| 410 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 440 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 900a | 518333356 | LH Rear Diagonal Cross Member This part replaces 518333264. |
| 910a | 518332559 | RH Rear Diagonal Cross Member This part replaces 518333265. |
| 920 | 250000887 | Pan Head Torx Screw M8 X 12 |
| 1100 | 518329370 | Upper Colomn Support |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1130 | 207662556 | Hex. Flange Screw M6 X 25 |
| 1140 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1150 | 207662056 | Hex. Flange Screw M6 x 20 |
| 1200 | 518329755 | Center Column Support |
| 1300a | 520001629 | Bumper Cap |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
