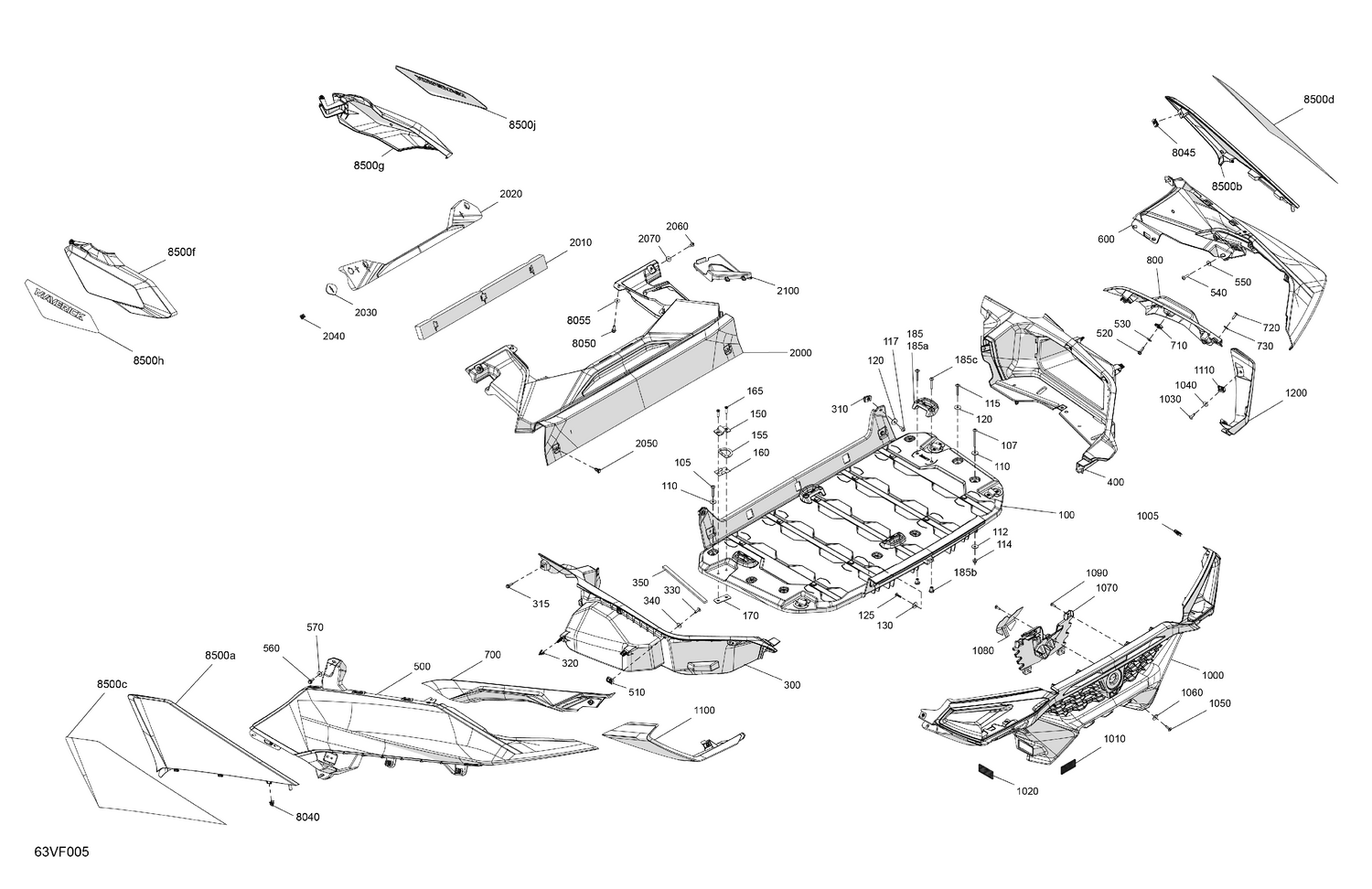

07- Body - Cargo
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708303769 | Luggage Rack |
| 105 | 250001003 | Torx-Truss M/S M6 X 40 |
| 107 | 250000954 | Torx Screw M6 X 70 |
| 110 | 250200162 | Flat Washer M6.6 X 22 |
| 112 | 250200162 | Flat Washer M6.6 X 22 |
| 114 | 233261494 | Hex. Flange Elastic Nut M6 |
| 115 | 250001003 | Torx-Truss M/S M6 X 40 |
| 117 | 250000722 | Torx Screw M6 X 20 |
| 120 | 250200162 | Flat Washer M6.6 X 22 |
| 125 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 150 | 708302992 | Tie-Down Ring Bracket |
| 155 | 708302990 | D-Ring |
| 160 | 708302991 | Tie-Down Ring Spring |
| 165 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 170 | 708304337 | Retaining Plate |
| 185a | XXX | Not Available As Spare Parts |
| 185b | 511000822 | Threaded Insert |
| 185c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 300 | 705016220 | LH Box Panel |
| 310 | 250100208 | Panel Nut M6 X 1.0 |
| 315 | 207662054 | Hex. Flange Screw M6 X 20 |
| 320 | 517306478 | Clip |
| 330 | 250000722 | Torx Screw M6 X 20 |
| 340 | 234062670 | Stainless Steel Flat Washer |
| 350 | 219704386 | Seal 3000MM Long |
| 400 | 705016221 | RH Box Panel |
| 500 | 708304847 | Dusty Navy, LH Rear Fender |
| 510 | 250100208 | Panel Nut M6 X 1.0 |
| 520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 540 | 250000807 | Torx Truss Screw M6 X 25 |
| 550 | 234062670 | Stainless Steel Flat Washer |
| 560 | 207662054 | Hex. Flange Screw M6 X 20 |
| 570 | 234062670 | Stainless Steel Flat Washer |
| 600 | 708304848 | Dusty Navy, RH Rear Fender |
| 700 | 705015534 | LH Rear Mud Guard |
| 710 | 250100208 | Panel Nut M6 X 1.0 |
| 720 | 250000722 | Torx Screw M6 X 20 |
| 730 | 234062670 | Stainless Steel Flat Washer |
| 800 | 705015535 | RH Rear Mud Guard |
| 1000 | 708304481 | Rear Fascia |
| 1005 | 250100208 | Panel Nut M6 X 1.0 |
| 1010 | 520001820 | Red Reflector |
| 1020 | 520001820 | Red Reflector |
| 1030 | 250000722 | Torx Screw M6 X 20 |
| 1040 | 234062670 | Stainless Steel Flat Washer |
| 1050 | 250000722 | Torx Screw M6 X 20 |
| 1060 | 234062670 | Stainless Steel Flat Washer |
| 1070 | 708304335 | Camera Support |
| 1080 | 708304271 | Heat Shield |
| 1090 | 250000720 | Torx Screw K50 X 16 |
| 1100 | 708303788 | Deep Black, LH Taillight Trim |
| 1110 | 250100208 | Panel Nut M6 X 1.0 |
| 1200 | 708303789 | Deep Black, RH Taillight Trim |
| 2000 | 715010919 | Intercooler Cover Kit |
| 2010 | 708304244 | Lower Acoustic Insulation Cover |
| 2020 | 708304322 | Upper Acoustic Insulation Cover |
| 2030 | 705003841 | Support Plate |
| 2040 | 517302785 | Edge Clip |
| 2050 | 293150230 | Tuflok Plastic Rivet |
| 2060 | 250000722 | Torx Screw M6 X 20 |
| 2070 | 234062670 | Stainless Steel Flat Washer |
| 2100 | 705017038 | Access Cover |
| 8040 | 517306478 | Clip |
| 8045 | 250100208 | Panel Nut M6 X 1.0 |
| 8050 | 207662054 | Hex. Flange Screw M6 X 20 |
| 8055 | 234062670 | Stainless Steel Flat Washer |
| 8500a | 708303784 | Deep Black, LH Exterior Body Panel |
| 8500b | 708303785 | Deep Black, RH Exterior Body Panel |
| 8500c | 704910658 | LH Rear Decal |
| 8500d | 704910659 | RH Rear Decal |
| 8500f | 705017027 | LH Front Cage Panel Ass'y |
| 8500g | 705017028 | RH Front Cage Panel Ass'y |
| 8500h | 704910355 | Dusty Navy, LH Maverick R XRS Decal |
