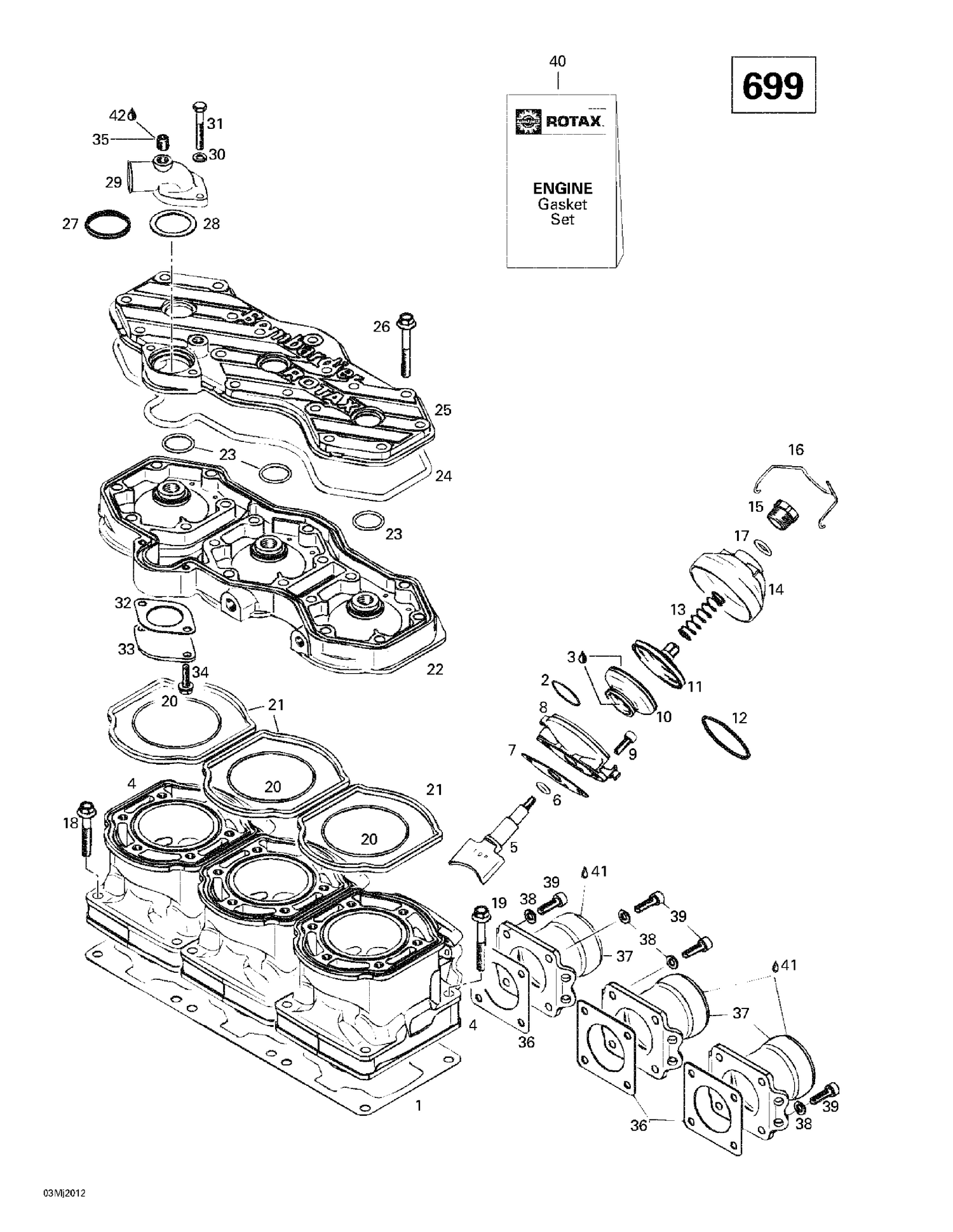

| Ref | Part Number | Description |
|---|
| 1 |
420931572 |
GASKET 0.6 MM - Call your local BRP dealership |
| 2 |
420838255 |
Hose Spring This part replaces 420838253. |
| 3 |
413707000 |
Dow Corning 111, 150 g |
| 4 |
420923420 |
CYLINDER (NICASIL COATED) - Call your local BRP dealership |
| 4 |
421000064 |
REBUILD-CYLINDER NICASIL REP. 699 - Call your local BRP dealership |
| 5 |
420854307 |
Exhaust Valve |
| 6 |
420430110 |
O-Ring |
| 7 |
420250239 |
Gasket |
| 8 |
420854265 |
Valve Housing |
| 9 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 10 |
420260723 |
Exhaust Bellows |
| 11 |
420854449 |
Exhaust Valve This part replaces 420854448. |
| 12 |
420939281 |
Hose Spring This part replaces 290239048. |
| 13 |
420239954 |
Spring This part replaces 420239944. |
| 14 |
420911552 |
Valve Cover This part replaces 420911551. |
| 15 |
420241221 |
Adjuster Screw |
| 16 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 17 |
420430220 |
O-Ring |
| 18 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 19 |
420640441 |
Collar Hex. Screw M8 x 53.5 |
| 20 |
420831792 |
O-Ring |
| 21 |
420931320 |
SEAL RING - Call your local BRP dealership |
| 22 |
420923128 |
Cylinder Head (Silver) |
| 23 |
420430782 |
O-Ring |
| 24 |
420931330 |
O-Ring |
| 25 |
420923134 |
Cylinder Head Cover (Silver) |
| 26 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 27 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 28 |
420927745 |
RETAINING DISK - Call your local BRP dealership |
| 29 |
420922485 |
Exhaust Socket |
| 30 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 31 |
207064044 |
Hex. Screw M6 X 40 |
| 32 |
420850339 |
Gasket This part replaces 420850336. |
| 33 |
420926260 |
COVER - Call your local BRP dealership |
| 34 |
420240580 |
TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 35 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 36 |
420850552 |
Gasket |
| 37 |
420978818 |
Exhaust Socket |
| 38 |
234161471 |
Lock Washer M6, Black |
| 39 |
205062544 |
Socket Head Screw M6 X 25 |
| 40 |
420886313 |
Gasket Set |
| 41 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
