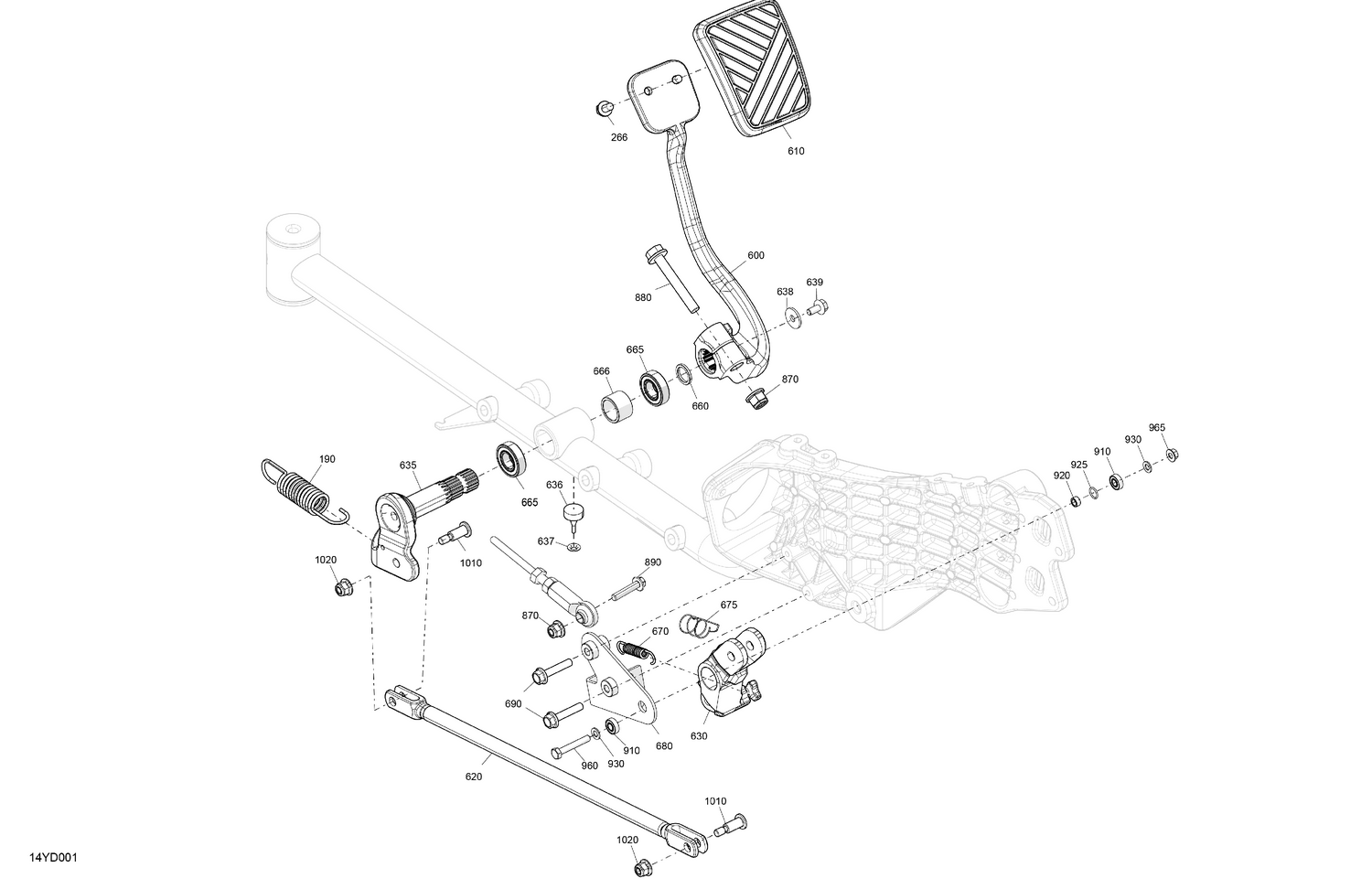

03- Mechanic - Brake Pedal
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 190 | 705503085 | Tension Spring |
| 266 | 210261250 | Hex. Flange Screw M6 X 12 |
| 600 | 705602008 | Brake Pedal |
| 610 | 705014023 | Rubber Pad |
| 620 | 705601847 | Link Rod Assembly |
| 630 | 705601994 | Rocker |
| 635 | 705601982 | Rocker |
| 636 | 708003414 | Rubber Stopper |
| 637 | 250001189 | Push Nut |
| 638 | 224061201 | Flat Washer |
| 639 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 660 | 705602010 | Spacer |
| 665 | 705602007 | Ball Bearing |
| 666 | 705602011 | Spacer |
| 670 | 705601584 | Brake Switch Spring |
| 675 | 705602204 | Compression Spring |
| 680 | 705601968 | Axle Rocker |
| 690 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 870 | 233281466 | Elastic Flange Nut M8 |
| 880 | 207685554 | Hex. Flange Screw M8 X 55 |
| 890 | 207684056 | Hex Flange Screw M8 X 40 |
| 910 | 705601974 | Ball Bearing |
| 920 | 705602003 | Spacer |
| 925 | 293300191 | O-Ring |
| 930 | 503183800 | Washer |
| 960 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 965 | 233101414 | Hex. Flange Nut M10 |
| 1010 | 250000714 | Flange Screw M6 X 26 |
