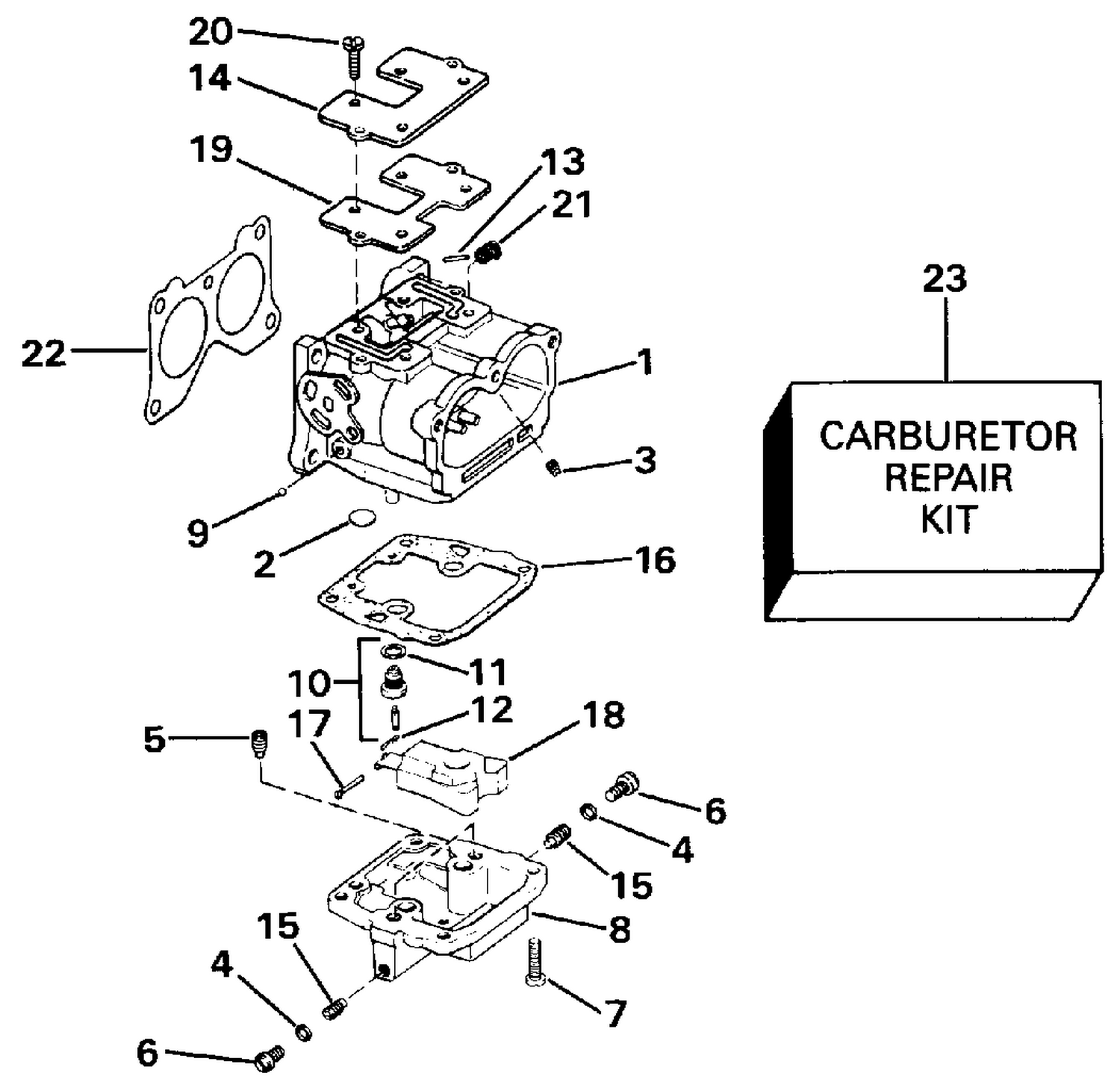

CARBURETOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432119 | CARB ASSY., 175, middle & lower |
| 1 | 0432120 | CARB ASSY., 175, Upper |
| 1 | 0432124 | CARB ASSY., 150 |
| 5 | 0333461 | ORIFICE, 150 No. 29 |
| 5 | 0333464 | ORIFICE, 175 No. 36 |
| 8 | 0398544 | FLOAT CHAMBER ASSY. |
| 12 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 14 | 0334352 | COVER, Idle channel |
| 15 | 0320661 | ORFICE PLUG (61C) |
| 16 | 0338884 | GASKET, Float bowl This part replaces 0333418. |
| 18 | 0383437 | FLOAT ASSEMBLY |
| 19 | 0334353 | GASKET, Cover |
| 20 | 0333750 | SCREW, Cover |
| 22 | 0327707 | GASKET, Air silencer |
