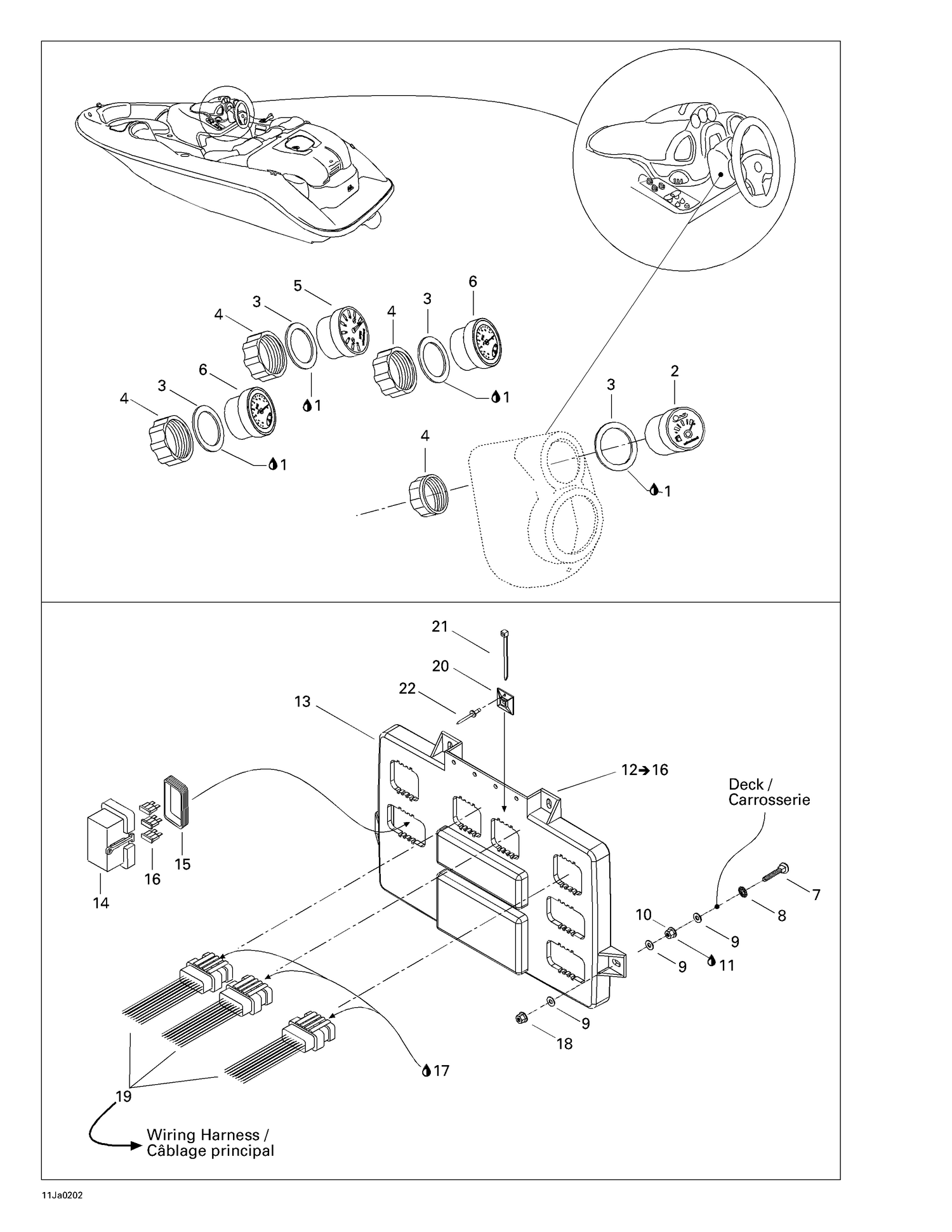

10- Electrical Accessories 1
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 2 | 204470319 | Fuel/Oil Gauge |
| 3 | 204470308 | Gasket |
| 4 | 204470146 | Gauge Nut |
| 5 | 204470322 | Speedometer Gauge |
| 6 | 204470321 | Tachometer Gauge |
| 7 | 204000130 | Elevator Bolt |
| 8 | 234381608 | TOOTHED LOCK WASHER - Call your local BRP dealership |
| 9 | 234062600 | Flat Washer M6, Stainless |
| 10 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 11 | 293800005 | Loctite 271, 10 ml |
| 13 | 204470201 | Module Housing |
| 14 | 278002102 | FUSE COVER - Call your local BRP dealership This part replaces 278001069. |
| 15 | 278001070 | Cover Seal |
| 16 | 278001197 | Fuse, 10 Amperes |
| 18 | 212000005 | NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 19 | 204470284 | Harness Ass'y |
| 20 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 21 | 914115200 | Tie Rap |
