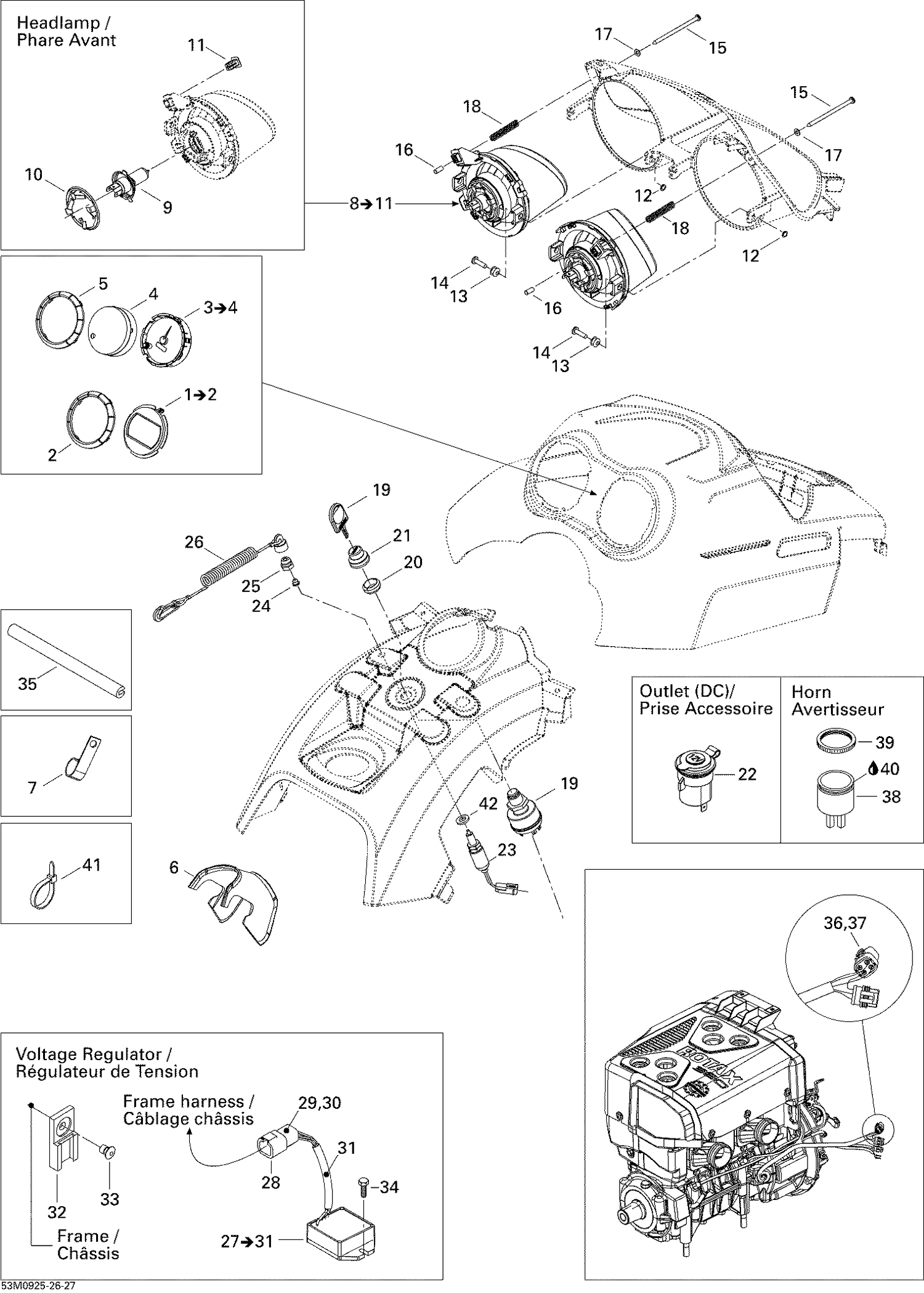

10- Electrical Accessories
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515179005 | Gauge Ring This part replaces 515176242. |
| 4 | 415129319 | LENS - Call your local BRP dealership |
| 5 | 515179005 | Gauge Ring This part replaces 515176242. |
| 6 | 515176321 | PROTECTOR - Call your local BRP dealership |
| 7 | 515176457 | Clamp |
| 9 | 515176274 | Halogen Bulb, 60/55 W, 12 V |
| 10 | 515176385 | BULB HOLDER - Call your local BRP dealership |
| 11 | 515176339 | Plastic Insert |
| 12 | 389804300 | Push Nut |
| 13 | 515176289 | HEADLAMP BUSHING - Call your local BRP dealership |
| 14 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 15 | 250000244 | PHILLIPS SCREW #8 X 3 - Call your local BRP dealership |
| 16 | 515176370 | Cap |
| 17 | 234051600 | Flat Washer M5 |
| 18 | 515176353 | SPRING - Call your local BRP dealership |
| 19 | 515176548 | IGNITION SWITCH - Call your local BRP dealership |
| 20 | 410112100 | FACE NUT - Call your local BRP dealership |
| 21 | 570013700 | Switch Boot |
| 22 | 710001248 | Outlet DC |
| 23 | 515175653 | Brake Switch |
| 24 | 570151100 | Plunger Cap |
| 25 | 515145900 | Switch Nut |
| 26 | 515178283 | Cap Ass'y This part replaces 515176463. |
| 28 | 278001477 | FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 29 | 515175568 | Male Terminal |
| 30 | 278001478 | MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 31 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 32 | 270000141 | Clip This part replaces 515175917. |
| 33 | 293150037 | Avdel Rivet 3/16" |
| 34 | 210261250 | Hex. Flanged Screw M6 X 12 This part replaces 210261280. |
| 35 | 271000110 | Protection Trim |
| 35 | 509000263 | TRIM - Call your local BRP dealership |
| 36 | 278001473 | Female Terminal Housing, 4 Circuits |
| 37 | 278001474 | Female Lock, 4 Circuits |
| 38 | 515176035 | HORN - Call your local BRP dealership |
| 39 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 40 | 293800086 | Silicone Sealant 5150, 300 ml |
| 41 | 293750002 | Tie-Rap 142 mm |
| 41 | 293750008 | Tie-Rap 368 mm |
| 41 | 414115200 | Tie-Rap 180 mm |
| 42 | 503183500 | WASHER - Call your local BRP dealership |
