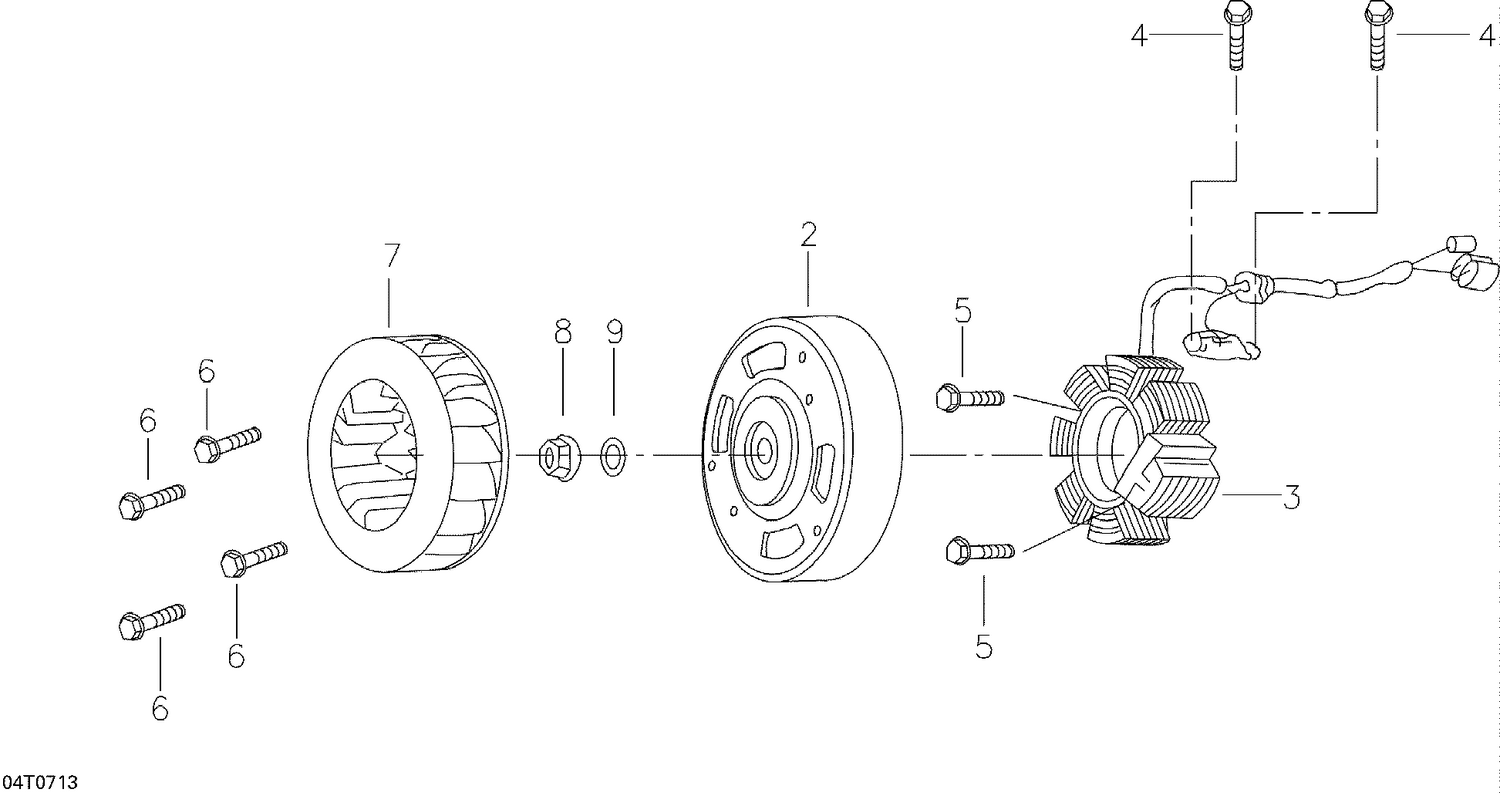

03- Magneto
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A31110133000 | FLYWHEEL COMP. - Call your local BRP dealership |
| 3 | A31120133000 | STATOR COMP - Call your local BRP dealership |
| 4 | A9200005012 | HEX BOLT - Call your local BRP dealership |
| 5 | A960000602008 | HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
| 6 | A960000601808 | HEXAGONAL WASHER FACE BOLT M6X18 - Call your local BRP dealership |
| 7 | A19510133000 | FAN - Call your local BRP dealership |
| 8 | A9405010000 | HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership |
