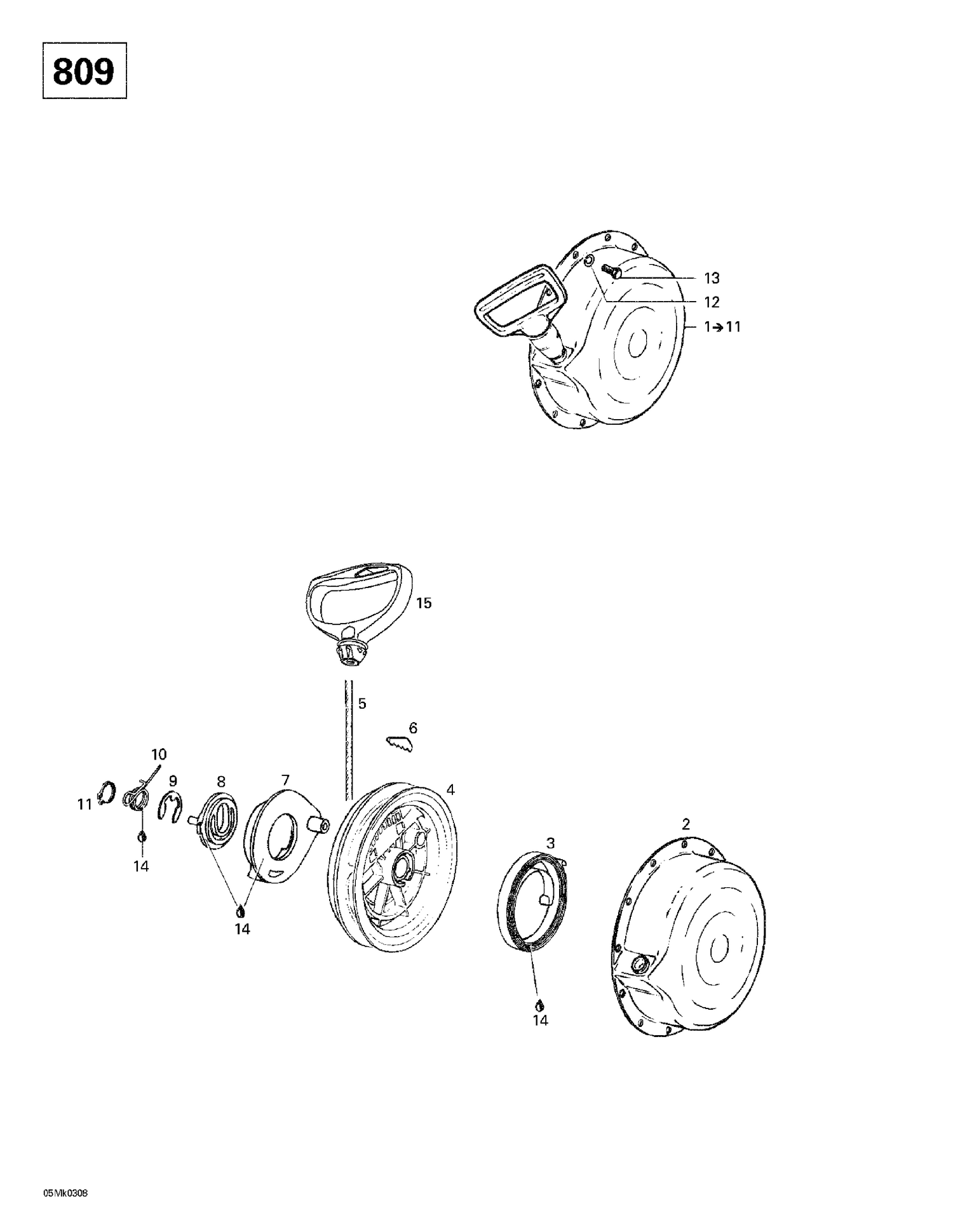

04- Rewind Starter
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420810819 | Starter Housing |
| 3 | 420939115 | Rewind Spring |
| 4 | 420852283 | Rope Sheave |
| 5 | 219704403 | Was 412500100 Rope-Starter |
| 6 | 420852070 | Key Clamp |
| 7 | 420852296 | Pawl |
| 8 | 420852302 | PAWL LOCK - Call your local BRP dealership |
| 9 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 10 | 420938986 | Pawl Spring |
| 11 | 420945770 | LOCK RING - Call your local BRP dealership |
| 12 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 13 | 207161644 | Hex. Screw M6 X 16 |
| 14 | 420899763 | Molykote PG 54, 10 g |
