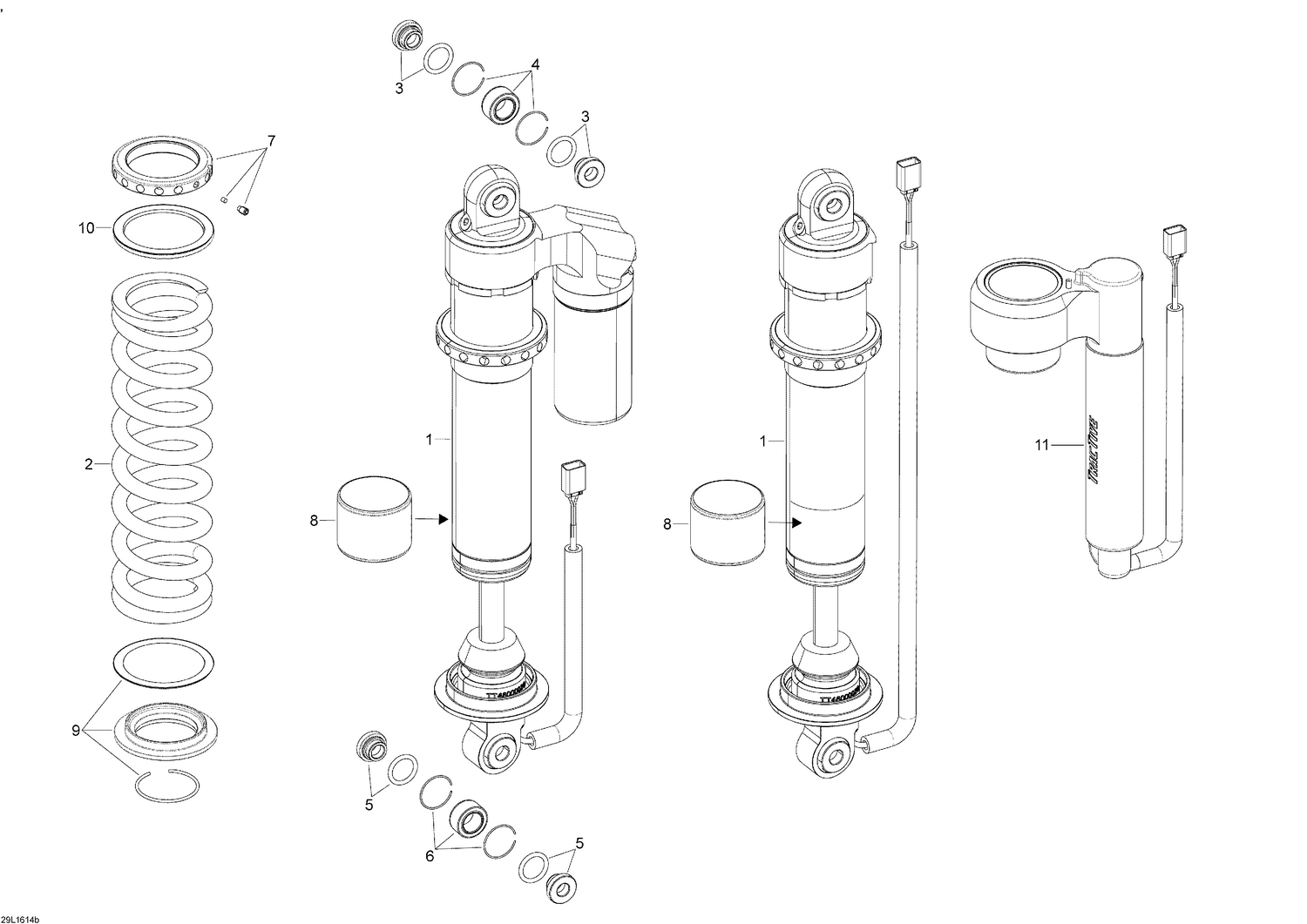

08- Rear Shocks - Tractive
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Center Shock |
| 2 | 619300178 | Rear Shock Spring |
| 2 | 619300194 | Center Shock Spring |
| 3 | 619300183 | Center Shock Upper Bearing Bushing |
| 4 | 619300185 | Center Shock Upper Bearing |
| 4 | 619300186 | Rear Shock Upper Bearing |
| 5 | 619300183 | Center Shock Lower Bearing Bushing |
| 6 | 619300185 | Center Shock Lower Bearing |
| 6 | 619300187 | Rear Shock Lower Bearing |
| 7 | 619300188 | Upper Spring Retainer Kit |
| 8 | 619300189 | Rubber Protection Sleeve |
| 9 | 619300190 | Lower Spring Retainer Kit |
| 10 | 619300191 | Upper Spring Spacer |
