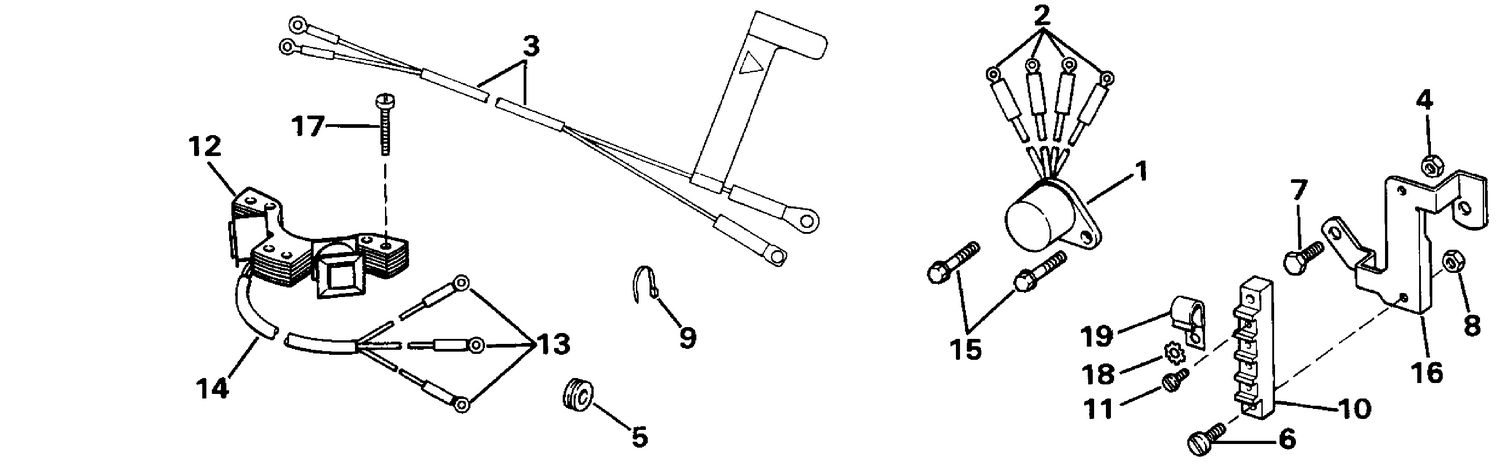

| Ref | Part Number | Description |
|---|
| 1 |
0173692 |
RECTIFIER ASSEMBLY, DC |
| 6 |
0306644 |
VIS, capteur de papillon |
| 7 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 |
0511949 |
BORNIER |
| 11 |
0329182 |
VIS, borne |
| 12 |
0584342 |
STATOR ASSEMBLY, DC This part replaces 0583652. |
| 15 |
0324813 |
ECREW,Exhaust cover,1-3/8"long |
| 16 |
0123695 |
BRACKET, Terminal block |
| 0174891 |
0175277 |
BATTERY CHARGING KIT, 4 This part replaces 0174891. |
| 0174892 |
0175278 |
BATTERY CHANGING KIT, 6 & 8 This part replaces 0174892. |
