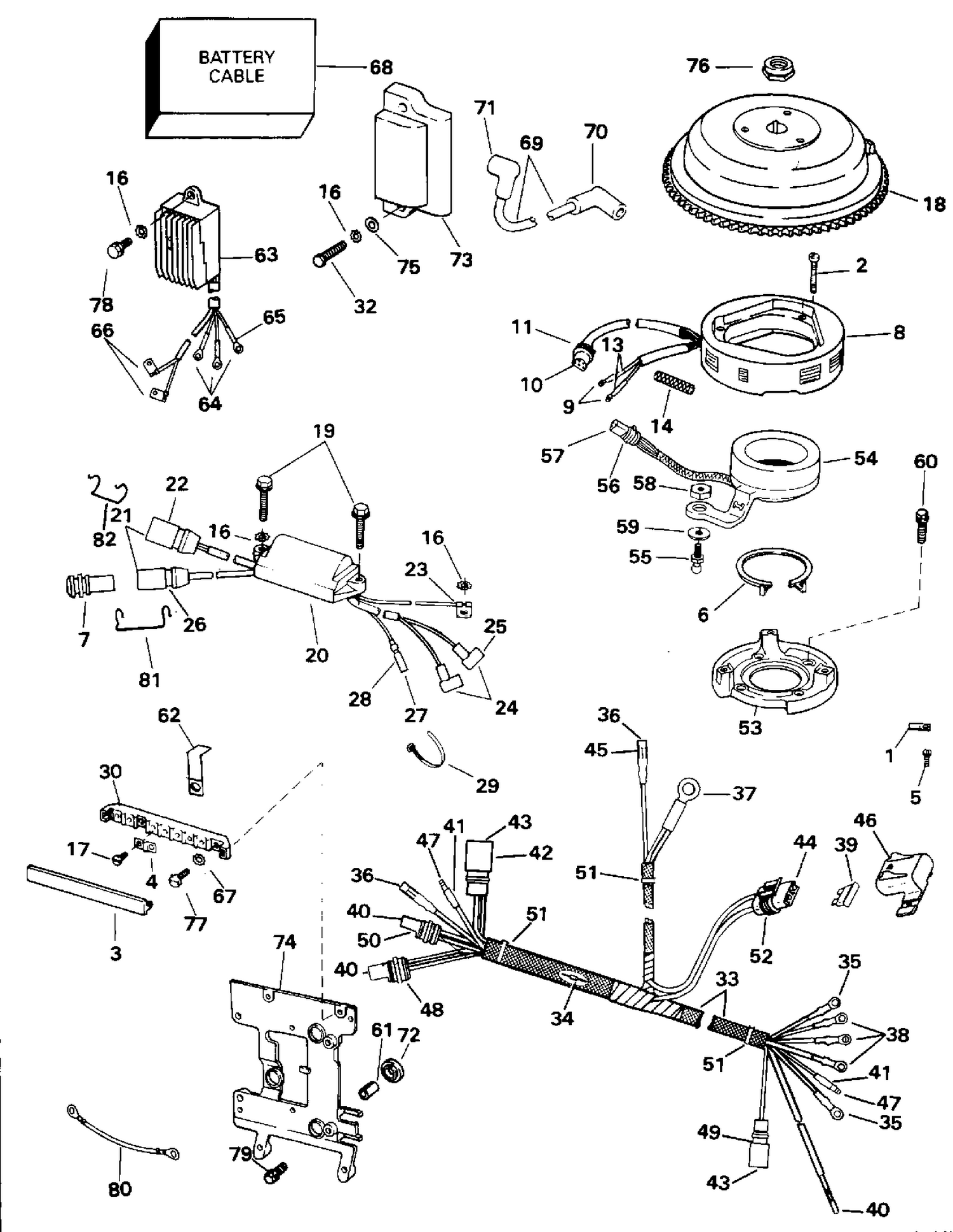

IGNITION SYSTEM - ELECTRIC START 40-50TE - 40TTL MODELS
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0126582 | CLAMP, Timer base |
| 2 | 0325042 | SCREW, Starter mounting |
| 3 | 0329896 | CACHE DE BORNIER |
| 4 | 0315004 | FIL DE LIAISON, bornier |
| 5 | 0306014 | VIS, ancrage |
| 8 | 0584560 | STATOR |
| 17 | 0329182 | VIS, borne |
| 18 | 0585190 | FLYWHEEL Assy This part replaces 0175385. |
| 19 | 0328726 | SCREW (Use existing coil screw) |
| 20 | 0175316 | POWER PACK |
| 30 | 0329895 | BORNIER |
| 31 | 0512743 | DISPOSITIF DE RETENUE |
| 33 | 0584695 | MOTOR CABLE ASSY. |
| 53 | 0126671 | PLATE, Stator mounting |
| 54 | 0175386 | TIMER BASE Assy |
| 61 | 0302406 | SLEEVE |
| 63 | 0585001 | REDRESSEUR & FIL This part replaces 0584476. |
| 68 | 0584381 | CÂBLE DE BATTERIE |
| 69 | 0582365 | H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 72 | 0326136 | GROMMET |
| 73 | 0583740 | COIL Assy |
| 74 | 0338431 | BRACKET |
| 76 | 0326111 | NUT |
| 77 | 0303714 | SCREW |
| 80 | 0376349 | FIL, masse |
| 81 | 0512742 | DISPOSITIF DE RETENUE, connecteur |
