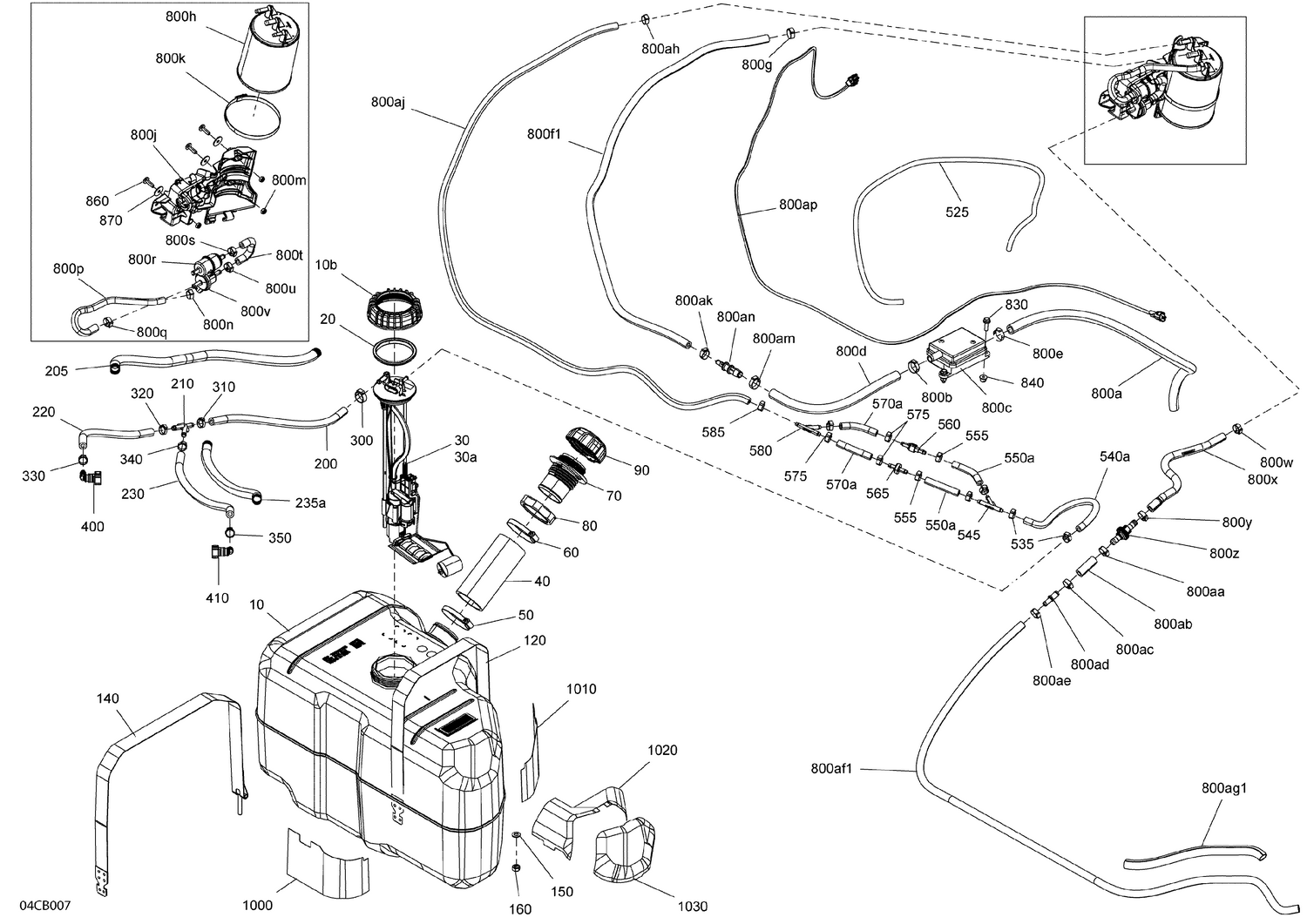

02- Engine - Fuel - EVAP
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 709000328 | Fuel Pump Module Nut |
| 20 | 709000208 | Seal |
| 30a | 715900322 | Prefilter Fuel Pump Kit 86mm Long |
| 40 | 709000595 | Hose Filler Neck |
| 50 | 293650081 | Norma Clamp |
| 60 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 120 | 709001291 | Retaining Strap This part replaces 709001140. |
| 140 | 709001141 | Retaining Strap |
| 150 | 234081410 | Flat Washer 8 mm |
| 160 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 219704475 | Hose 7,94 MM ID 3000MM Long This part replaces 715900706. |
| 205 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 210 | 709001329 | Y Fitting |
| 220 | 219704475 | Hose 7,94 MM ID 3000MM Long This part replaces 715900706. |
| 230 | 219704475 | Hose 7,94 MM ID 3000MM Long This part replaces 715900706. |
| 235a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 293650053 | Crimp Clamp |
| 310 | 293650053 | Crimp Clamp |
| 320 | 293650053 | Crimp Clamp |
| 330 | 293650053 | Crimp Clamp |
| 340 | 293650053 | Crimp Clamp |
| 350 | 293650053 | Crimp Clamp |
| 400 | 275500700 | Quick Attach 90° |
| 410 | 275500700 | Quick Attach 90° |
| 525 | 219704389 | Polyurethane Hose 4000MM Long |
| 535 | 293650042 | Oetiker Clamp |
| 540a | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 545 | 293710059 | Y-Fitting |
| 550a | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 555 | 293650042 | Oetiker Clamp |
| 560 | 513033469 | Check Valve |
| 565 | 275500398 | Check Valve |
| 570a | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 575 | 293650042 | Oetiker Clamp |
| 580 | 293710059 | Y-Fitting |
| 585 | 293650042 | Oetiker Clamp |
| 800a | 707800699 | Crankcase Breather |
| 800aa | 293650053 | Crimp Clamp |
| 800ab | 709000882 | Hose |
| 800ac | 293650053 | Crimp Clamp |
| 800ad | 709000933 | Flow Reducer |
| 800ae | 293650047 | Crimp Clamp, 15.3-706R |
| 800af1 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 800ag1 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 800ah | 293650046 | Oetiker Clamp |
| 800aj | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704442. |
| 800ak | 293650053 | Crimp Clamp |
| 800am | 293650186 | Oetiker Clamp |
| 800an | 709001208 | Flow Reducer |
| 800ap | 710007546 | Purge Valve Cable |
| 800b | 293650186 | Oetiker Clamp |
| 800c | 709000524 | Air Filter |
| 800d | 707800965 | Hose Fuel Vapour Canister |
| 800e | 293650186 | Oetiker Clamp |
| 800f1 | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 800g | 293650053 | Crimp Clamp |
| 800h | 709001673 | Charcoal Canister This part replaces 709000806. |
| 800j | 709000851 | Canister Support |
| 800k | 293650054 | Tridon Clamp |
| 800m | 232561600 | Hex. Elastic Stop Nut M6 |
| 800n | 293650042 | Oetiker Clamp |
| 800p | 709000853 | Formed Hose |
| 800q | 293650046 | Oetiker Clamp |
| 800r | 513034047 | Fuel Filter This part replaces 513033719. |
| 800s | 293650047 | Crimp Clamp, 15.3-706R |
| 800t | 709000857 | Formed Hose |
| 800u | 293650047 | Crimp Clamp, 15.3-706R |
| 800v | 709000443 | Bleed Valve |
| 800w | 293650047 | Crimp Clamp, 15.3-706R |
| 800x | 709000937 | Formed Hose |
| 800y | 293650053 | Crimp Clamp |
| 800z | 275500941 | Check Valve |
| 830 | 207662054 | Hex. Flange Screw M6 X 20 |
| 840 | 250100198 | Panel Nut M6 X 1.0 |
| 860 | 250000712 | Torx Screw M6 X 20 |
| 870 | 250200162 | Flat Washer M6.6 X 22 |
| 1000 | 707002670 | Heat Shield |
| 1010 | 707002671 | Heat Shield |
| 1020 | 707002673 | Heat Shield |
| 1030 | 707002719 | Heat Shield |
