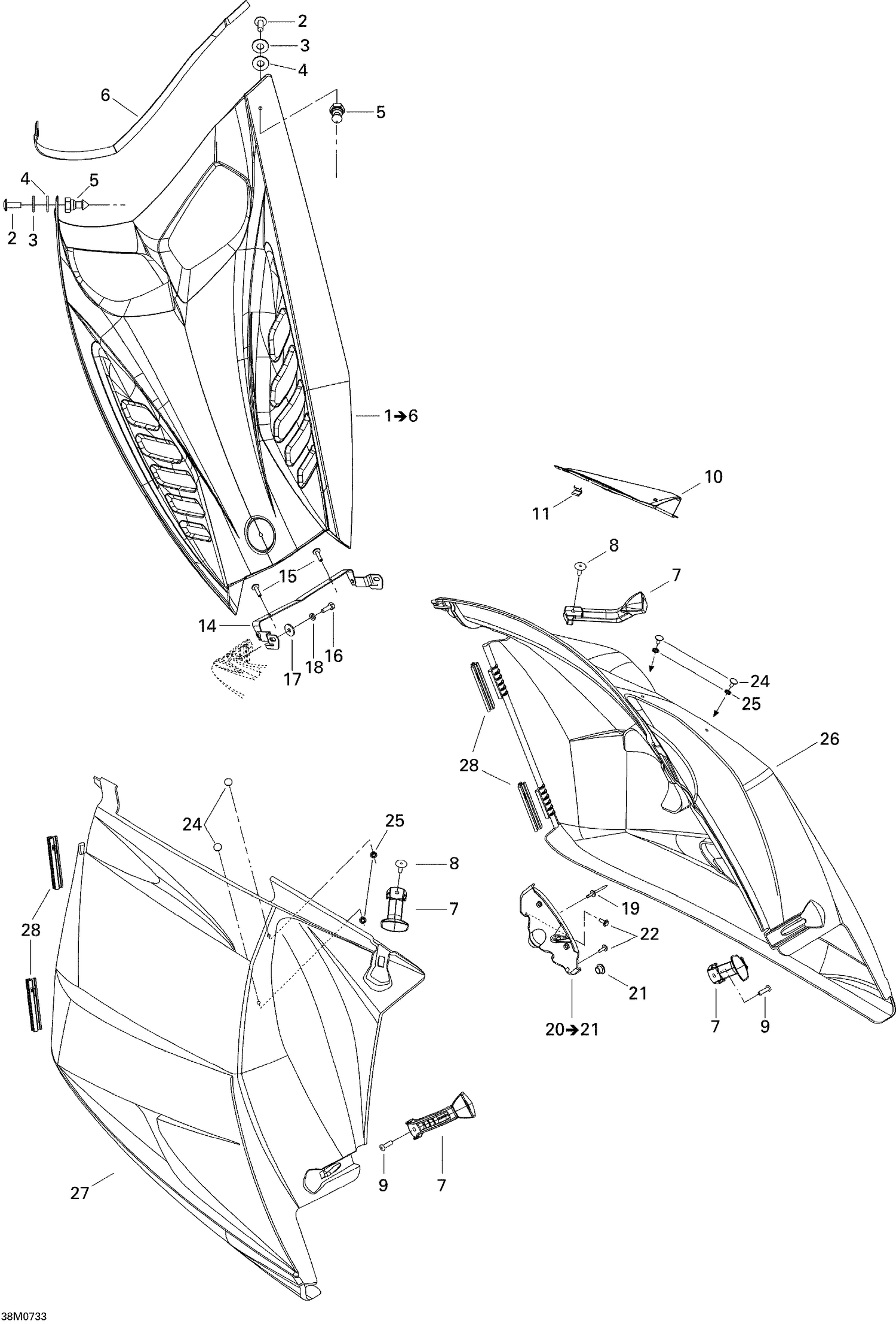

09- Hood
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 3 | 250200025 | Washer M5 |
| 4 | 250200024 | Rubber Washer 5 mm |
| 5 | 517303729 | Knob |
| 6 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 7 | 517302448 | Panel Latch |
| 8 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 9 | 390410100 | Pop Rivet 3/16” |
| 10 | 517302938 | RH PANEL GRILL - Call your local BRP dealership |
| 11 | 517302789 | CLIP - Call your local BRP dealership |
| 14 | 517303679 | HINGE - Call your local BRP dealership |
| 15 | 293150103 | Pop Rivet 3/16" |
| 16 | 207161844 | Hex. Screw M6 X 18 |
| 17 | 224061121 | Flat Washer |
| 18 | 234161471 | Lock Washer M6, Black |
| 19 | 293150102 | Rivet 3/16" |
| 21 | 275500241 | Black, Cap |
| 22 | 293150103 | Pop Rivet 3/16" |
| 24 | 517303070 | Windshield Dart |
| 25 | 250100034 | Push Nut |
| 26 | 517303182 | Panneau DR, Jaune, B-190 |
| 27 | 517302805 | LH PANEL, YELLOW B-190 - Call your local BRP dealership |
