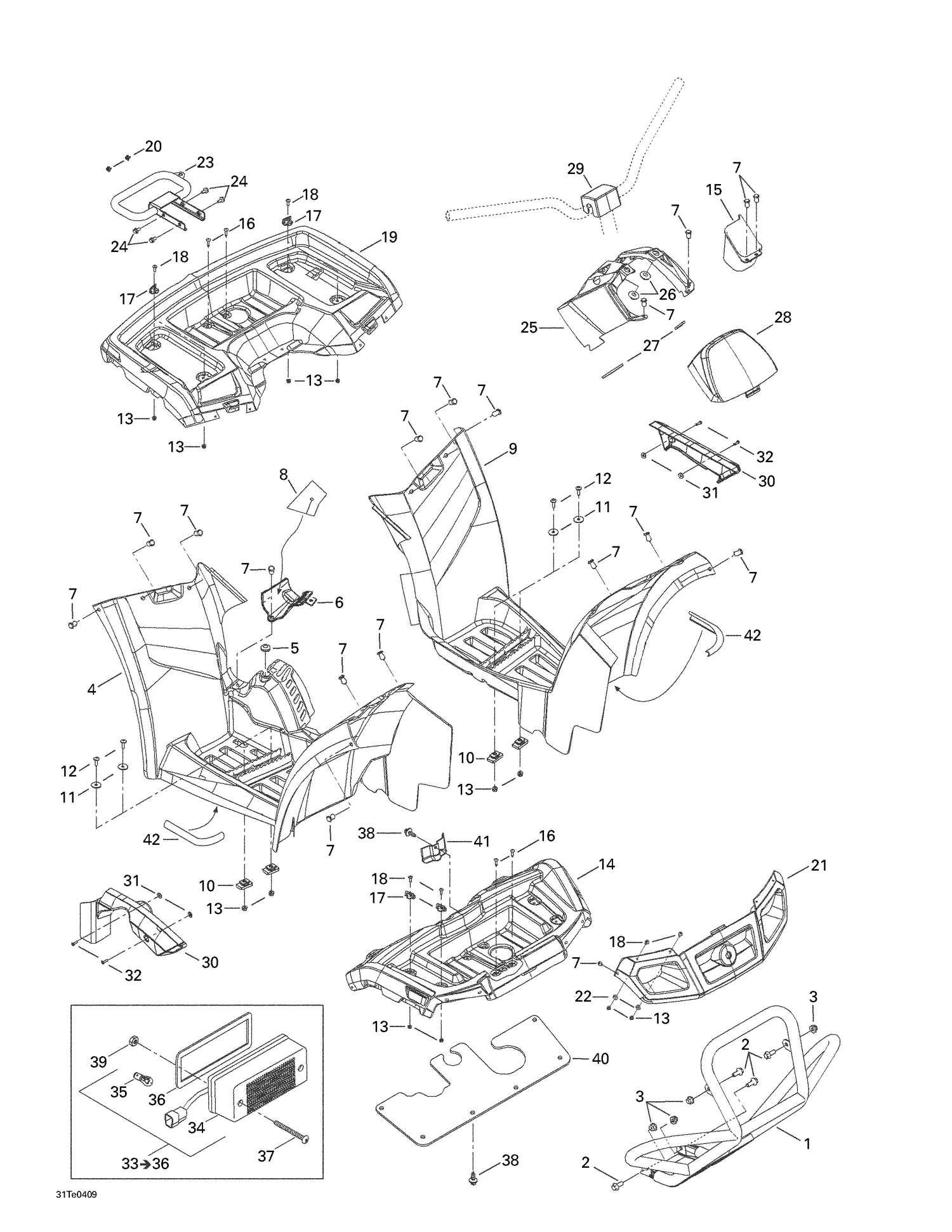

| Ref | Part Number | Description |
|---|
| 1 |
705000346 |
Front Bumper |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
705000899 |
RH Foot-Well, Laurentian Green B-241 |
| 5 |
293720062 |
Grommet |
| 6 |
705000410 |
Chain Cover |
| 7 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 8 |
705000563 |
Reflective Sheet |
| 9 |
705000900 |
LH Foot-Well, Laurentian Green B-241 |
| 10 |
705000407 |
Rubber Stopper |
| 11 |
250200029 |
Washer M6 |
| 12 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
705000867 |
Front Fender- Luggage Rack, green(b-204 |
| 15 |
705000451 |
Cup |
| 16 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 17 |
705000560 |
HOOK - Call your local BRP dealership |
| 18 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 19 |
705000351 |
Rear Fender, green, b-204) |
| 20 |
250100035 |
Jack Nut M5 |
| 21 |
705000868 |
Viper Red, Front Fascia |
| 22 |
224060201 |
Flat Washer |
| 23 |
705000353 |
Rear Bumper |
| 24 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 25 |
705000902 |
Dash Board, Laurentian Green B-241 |
| 26 |
705005156 |
Oval Washer |
| 27 |
570023800 |
Windshield Latch |
| 28 |
705000903 |
Console Cover, Laurentian Green B-241 |
| 29 |
705000371 |
COVER - Call your local BRP dealership |
| 30 |
705000564 |
RH Cover |
| 31 |
293900049 |
Spacer |
| 32 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 34 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 35 |
520000758 |
Bulb This part replaces 410504100. |
| 36 |
710000129 |
GASKET - Call your local BRP dealership |
| 37 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 38 |
293730011 |
Black, Dart |
| 39 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 40 |
705000632 |
Deflector |
| 41 |
705000883 |
Deflector |
| 705000515 |
Viper |
Red, RH Foot-Well 705000515 |
| 705000516 |
2000 |
Yellow, RH Foot-Well 705000516 |
| 705000521 |
Viper |
Red, LH Foot-Well 705000521 |
| 705000522 |
2000 |
Yellow, LH Foot-Well 705000522 |
| 705000527 |
Console, |
Rouge vipère B-176 705000527 |
| 705000527 |
Viper |
Red, Dash Board 705000527 |
| 705000528 |
2000 |
Yellow, Dash Board 705000528 |
| 705000528 |
Console, |
Jaune B-190 705000528 |
| 705000530 |
Couvercle |
De console, Rouge vipère B-176 705000530 |
| 705000530 |
Viper |
Red, Console Cover 705000530 |
| 705000531 |
2000 |
Yellow, Console Cover 705000531 |
| 705000531 |
Couvercle |
De console, Jaune B-190 705000531 |
| 705000565 |
LH |
Cover 705000565 |
| 705000565 |
Panneau |
GA 705000565 |
| 705000869 |
2000 |
Yellow, Front Fascia 705000869 |
| 705000901 |
Front |
Fascia, Laurentian Green B-241 705000901 |
