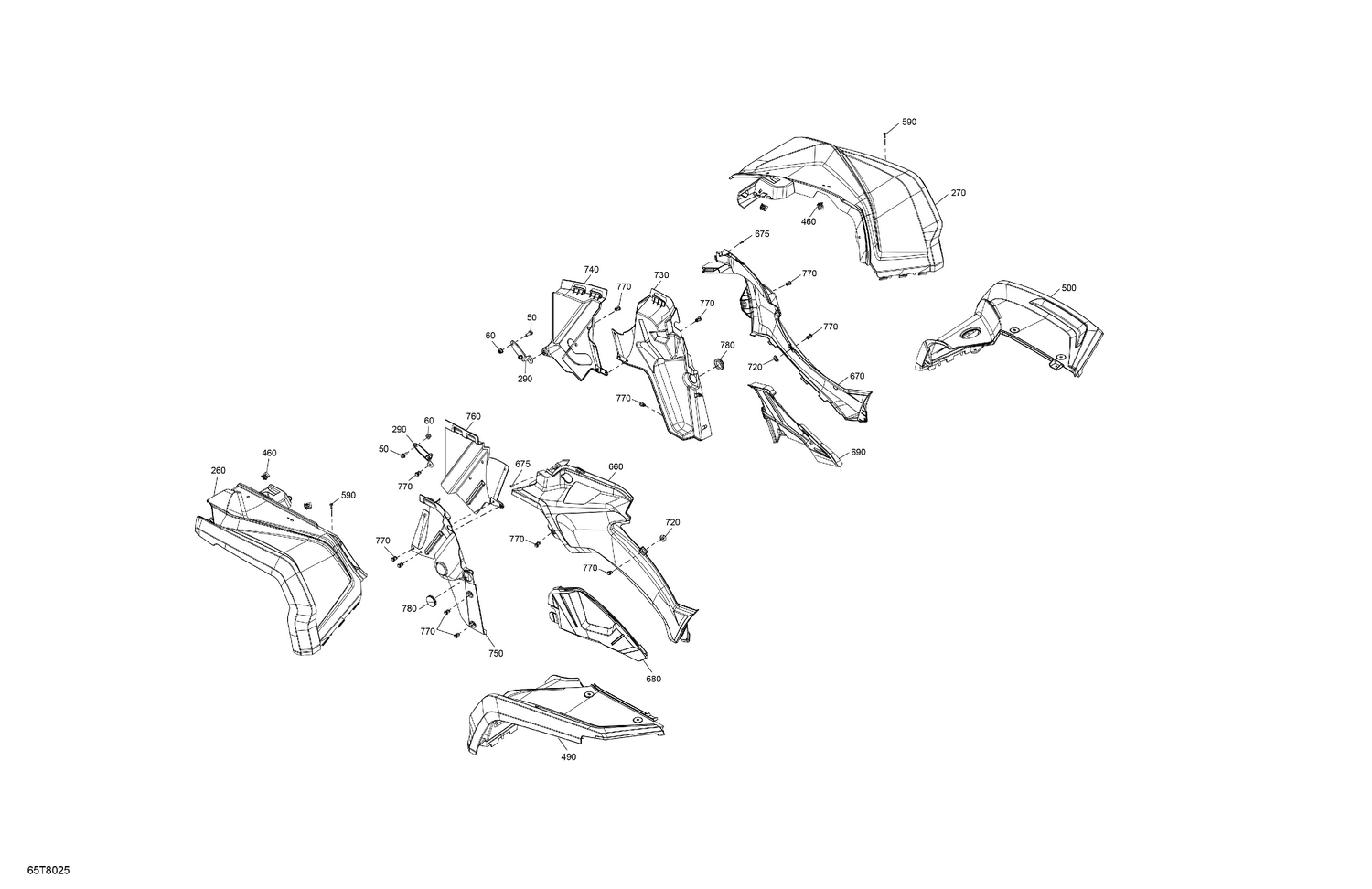

| Ref | Part Number | Description |
|---|
| 50 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 60 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 260 |
715002588 |
Brushed Aluminium LH Front Fender Kit |
| 270 |
715002620 |
Brushed Aluminium RH Front Fender Kit |
| 290 |
705004565 |
Lower Fender Support |
| 460 |
517302785 |
Edge Clip |
| 490 |
715002624 |
BRUSHED ALUMINIUM LH REAR FENDER KIT - Call your local BRP dealership This part replaces 715003217. |
| 500 |
715002599 |
BRUSHED ALUMINIUM RH REAR FENDER ASS'Y - Call your local BRP dealership |
| 590 |
250000722 |
Torx Screw M6 X 20 |
| 660 |
705008588 |
Brushed Aluminium LH Lateral Panel |
| 670 |
705008589 |
Brushed Aluminium RH Lateral Panel |
| 675 |
250000723 |
Phillips Screw K40 X 16 |
| 680 |
715007294 |
Deflector Body Panel Kit |
| 690 |
705003444 |
Engine Cover |
| 720 |
705003264 |
Grommet |
| 730 |
705011462 |
RH Rear Inner Fender |
| 740 |
705011463 |
RH Front Inner Fender |
| 750 |
705013111 |
LH Rear Inner Fender |
| 760 |
705017001 |
LH Front Wheel Arch Protector This part replaces 705011465. |
| 770 |
293150230 |
Tuflok Plastic Rivet |
