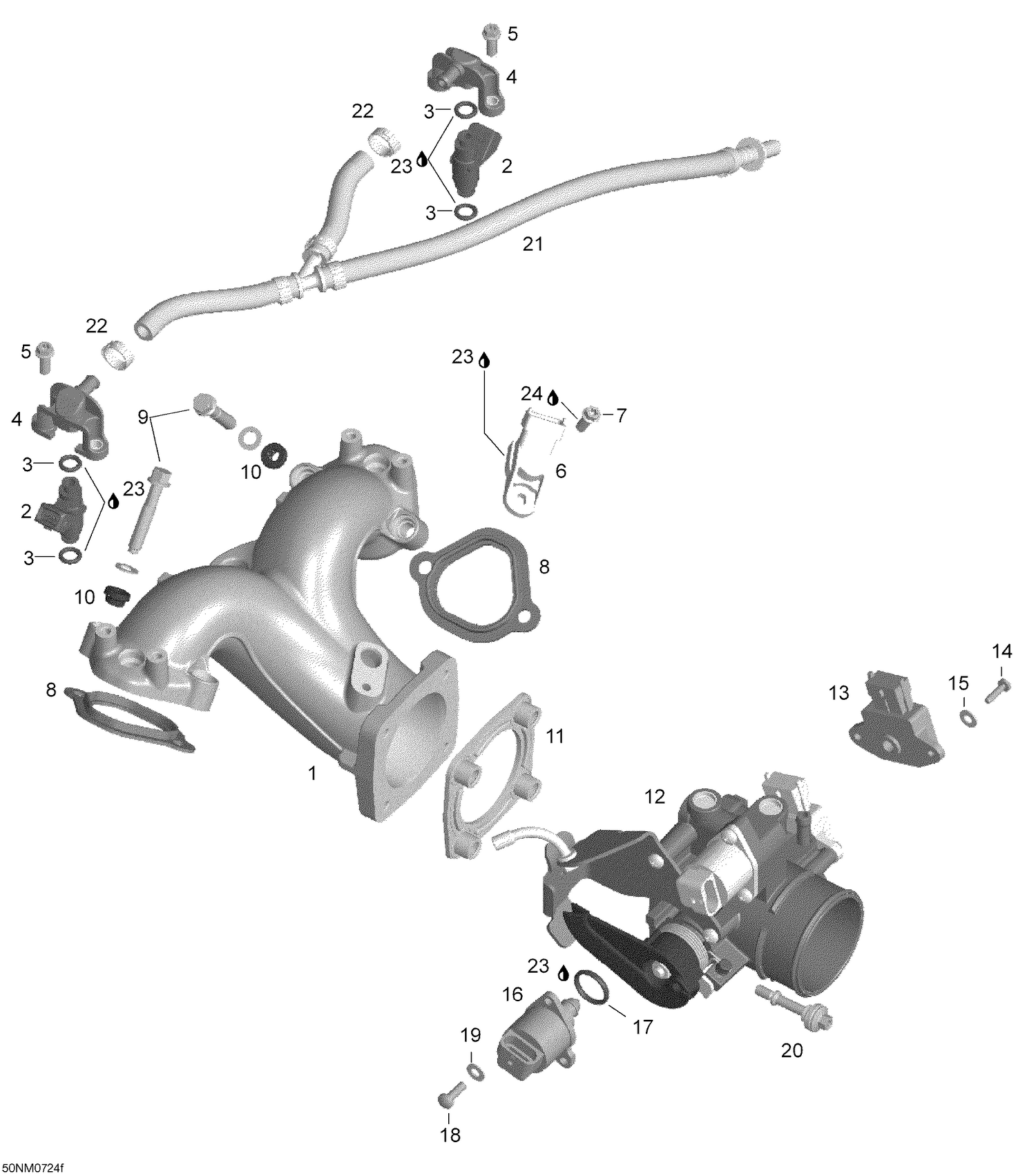

| Ref | Part Number | Description |
|---|
| 1 |
420867942 |
Air Inlet Manifold |
| 2 |
420874404 |
INJECTION VALVE - Call your local BRP dealership |
| 3 |
420631220 |
O-Ring |
| 4 |
420874410 |
Fuel Rail |
| 5 |
420440162 |
Torx Flange Screw M6 X 16 |
| 6 |
707000995 |
Pressure And Temperature Sensor This part replaces 420874650. |
| 7 |
420440162 |
Torx Flange Screw M6 X 16 |
| 8 |
420950692 |
GASKET - Call your local BRP dealership |
| 9 |
420440477 |
Distance Screw M8 |
| 10 |
420660190 |
RUBBER SLEEVE - Call your local BRP dealership |
| 11 |
420950792 |
Rubber Gasket |
| 12 |
420888902 |
THROTTLE BODY SOCKET - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Potentiometer |
| 14 |
Not |
Available As Spare Part - Screw |
| 15 |
Not |
Available As Spare Part - Washer |
| 16 |
420665941 |
Idle Air Control Valve This part replaces 420963055. |
| 17 |
420631780 |
O-Ring |
| 18 |
420440911 |
Binding Head Screw M5 X 16 |
| 19 |
420845710 |
Snap Ring |
| 20 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
| 21 |
420874562 |
Fuel Hose |
| 22 |
420851458 |
Clamp |
| 23 |
293550030 |
Grease, Super Lube |
