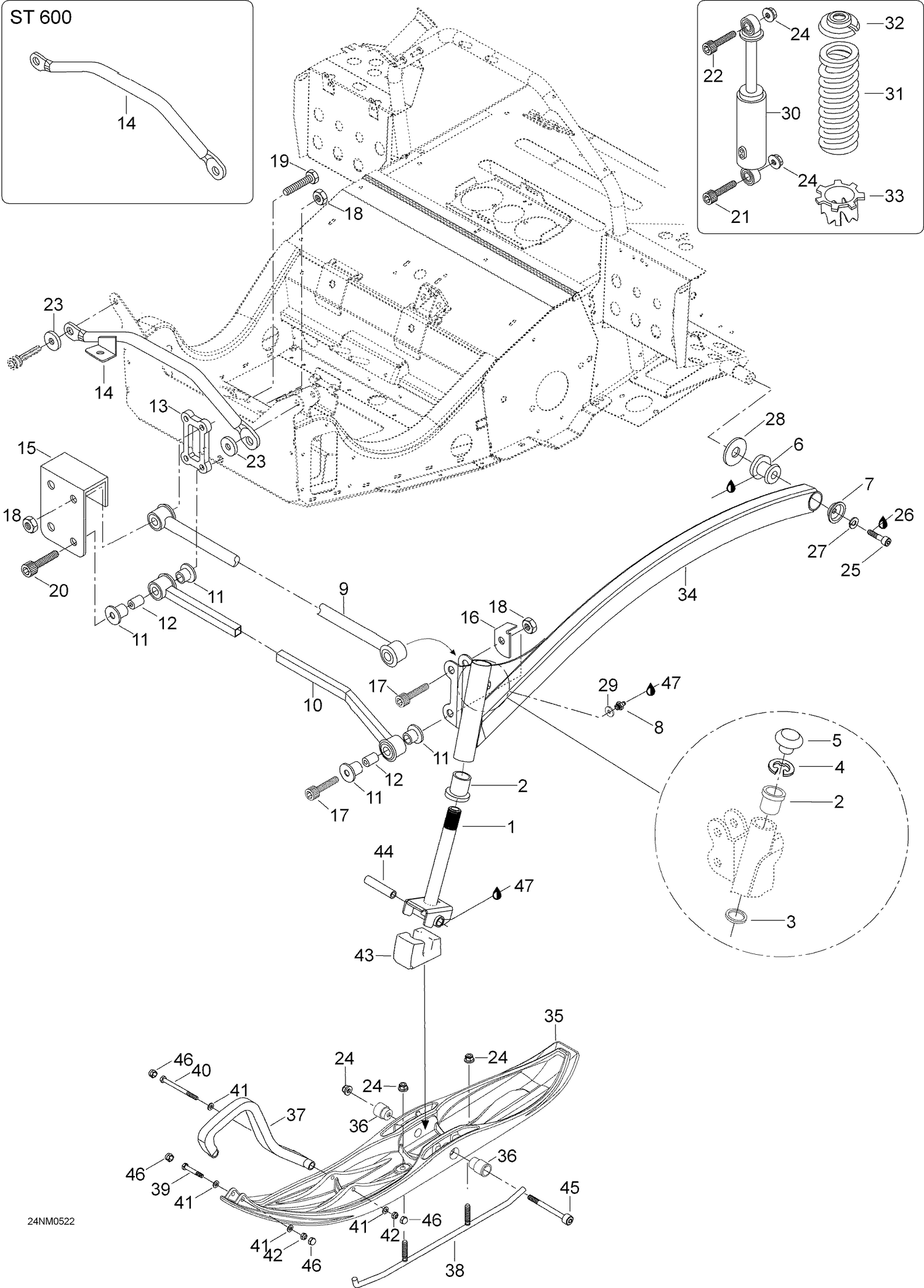

| Ref | Part Number | Description |
|---|
| 1 |
506151234 |
Ski leg |
| 2 |
505070003 |
Cushion |
| 3 |
505070004 |
WASHER - Call your local BRP dealership |
| 4 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 5 |
572091300 |
Cap |
| 6 |
570062200 |
DAMPER - Call your local BRP dealership |
| 7 |
705007171 |
Cup This part replaces 506115800. |
| 8 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 11 |
506149100 |
CUSHION - Call your local BRP dealership |
| 12 |
605450024 |
BUSHING - Call your local BRP dealership |
| 13 |
5345384 |
Spacer |
| 15 |
5345716 |
PLATE-LINK - Call your local BRP dealership |
| 16 |
605448861 |
R.H. Limiter |
| 16 |
605448862 |
L.H. Limiter |
| 17 |
40371 |
Socket head screw M12 x 55 |
| 18 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 19 |
40185 |
Hex. screw M12 x 75 |
| 20 |
205027544 |
SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership This part replaces 40370. |
| 21 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 22 |
40254 |
Socket head screw M10 x 65 |
| 23 |
605449801 |
WASHER - Call your local BRP dealership |
| 24 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 25 |
40810 |
Socket head screw M8 x 20 |
| 26 |
293800060 |
Loctite 243, 10ml |
| 27 |
20014 |
Lock washer A8 |
| 28 |
503146700 |
WASHER - Call your local BRP dealership |
| 29 |
20007 |
Washer A6,4 |
| 32 |
230076 |
Spring stopper |
| 33 |
230078 |
Adjusting Cam |
| 34 |
605251767 |
L.H. Swing arm ass'y |
| 34 |
605251768 |
R.H. Swing arm ass'y |
| 35 |
505073034 |
Plastic ski This part replaces 605148440. |
| 37 |
505070963 |
Handle |
| 38 |
860202822 |
Round Carbide Runner Kit This part replaces 605349311. |
| 39 |
40009 |
Hex. screw M8 x 50 |
| 40 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 41 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 42 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 43 |
605348458 |
SKI STOPPER - Call your local BRP dealership |
| 44 |
506133300 |
Sleeve |
| 45 |
40225 |
Socket head screw M10 x 140 |
| 46 |
28056 |
Cover |
