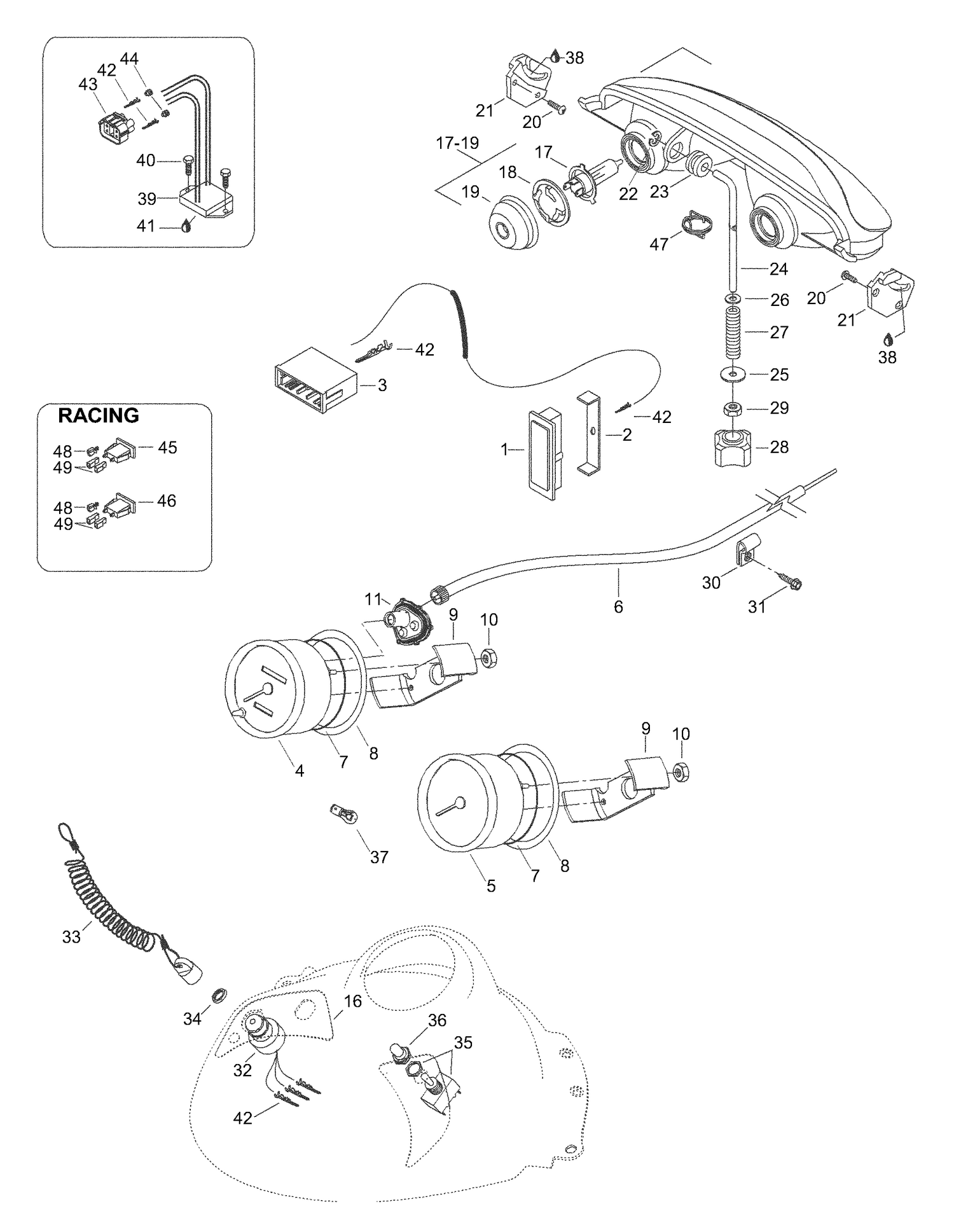

| Ref | Part Number | Description |
|---|
| 1 |
5447089 |
Signal lamp assy |
| 2 |
5442157 |
Fit plate |
| 3 |
42036 |
Connector Housing |
| 4 |
515175335 |
Speedometer white |
| 5 |
515175340 |
Tachometer white |
| 6 |
415101500 |
Speedometer cable |
| 7 |
414807100 |
O-ring |
| 8 |
517258500 |
Washer |
| 9 |
414806500 |
Holder |
| 10 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 11 |
515175400 |
Drive angle |
| 16 |
Not |
Available As Spare Part - Reflector, yellow - DOES NOT APPLY TO THIS MODEL |
| 17 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 18 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 19 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 20 |
40177 |
Headlamp screw |
| 21 |
517289300 |
R.H. headlamp support |
| 21 |
517289400 |
L.H. headlamp support |
| 22 |
732610072 |
Push Nut |
| 23 |
415100800 |
Grommet - Call your local BRP dealership |
| 24 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 25 |
20038 |
Washer |
| 26 |
20003 |
Washer |
| 27 |
415100600 |
SPRING - Call your local BRP dealership |
| 28 |
515175548 |
Handle - Call your local BRP dealership |
| 29 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 30 |
27025 |
Clamp |
| 31 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 32 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 33 |
515178284 |
Dess. This part replaces 515166900. |
| 34 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 35 |
410107300 |
Switch |
| 36 |
515175281 |
Rubber cover for switch |
| 37 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 38 |
413707500 |
Grease tube LMZ 400 g |
| 39 |
515175491 |
Regulator Assy |
| 40 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 41 |
413707500 |
Litium-grease |
| 42 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 43 |
42604 |
Connector Housing |
| 44 |
42605 |
Seal |
| 45 |
Not |
Available As Spare Part - Pilot lamp, blue - DOES NOT APPLY TO THIS MODEL |
| 46 |
Not |
Available As Spare Part - Pilot lamp, red - DOES NOT APPLY TO THIS MODEL |
| 47 |
5447238 |
Spring |
| 48 |
Not |
Available As Spare Part - Female terminal - DOES NOT APPLY TO THIS MODEL |
| 49 |
Not |
Available As Spare Part - Connector housing - DOES NOT APPLY TO THIS MODEL |
