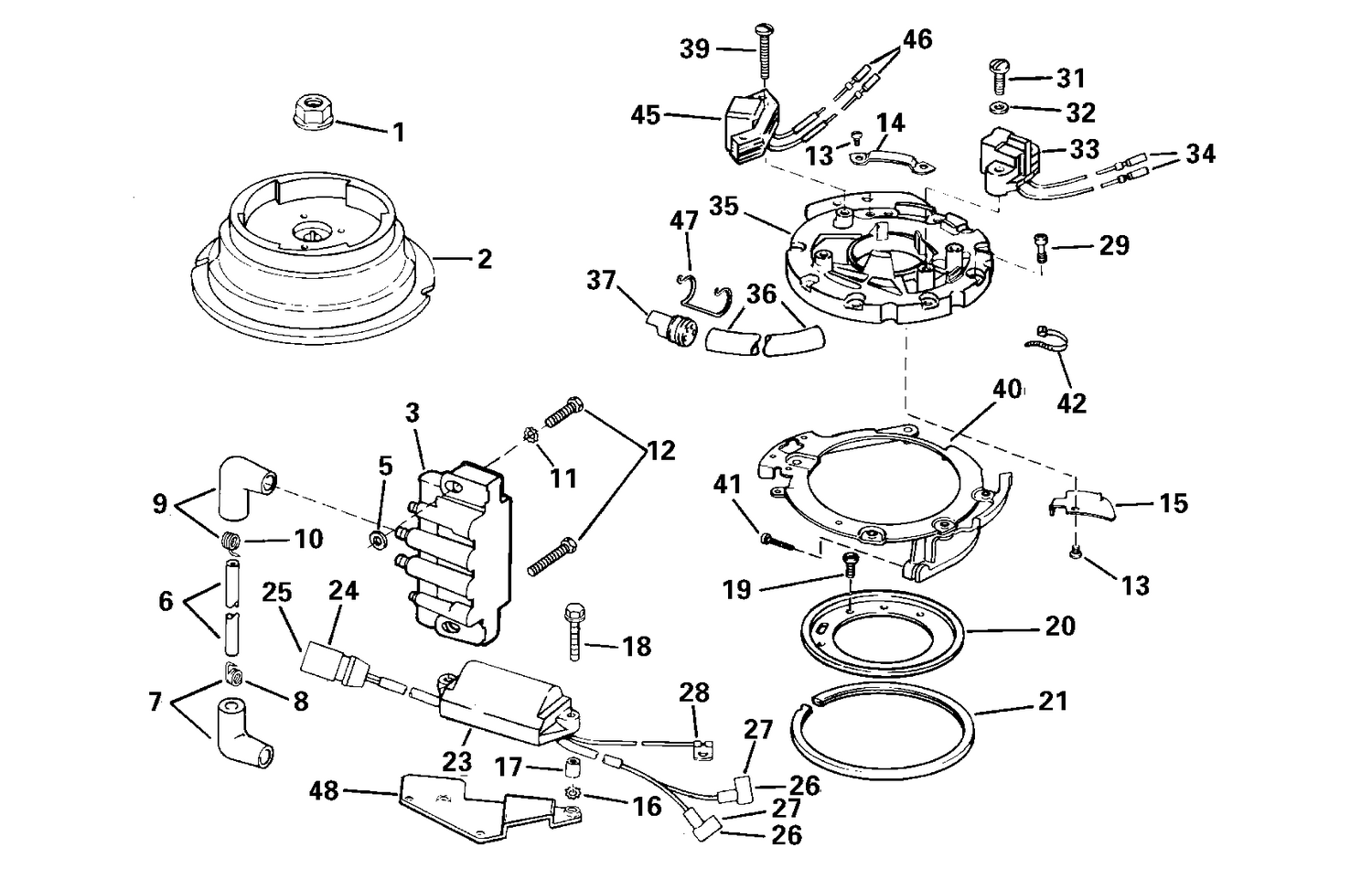

| Ref | Part Number | Description |
|---|
| 1 |
0326016 |
NUT, Flywheel |
| 2 |
0584222 |
FLYWHEEL ASSEMBLY |
| 3 |
0583740 |
COIL Assy |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0328726 |
SCREW (Use existing coil screw) |
| 13 |
0303212 |
VIS, collier & capot |
| 14 |
0511458 |
COLLIER, fils |
| 15 |
0511459 |
CACHE, fils |
| 17 |
0323144 |
SPACER |
| 18 |
0328726 |
SCREW (Use existing coil screw) |
| 19 |
0332070 |
SCREW, Retaining plate |
| 20 |
0332063 |
PLATE, Support |
| 21 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 23 |
0586800 |
POWER PACK ASSEMBLY This part replaces 0582285. |
| 29 |
0511460 |
VIS, dispositif de retenue |
| 31 |
0319682 |
VIS, capteur vers plaque |
| 33 |
0583387 |
SENSOR ASSEMBLY |
| 35 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 36 |
0512765 |
BRACKET |
| 39 |
0337522 |
VIS, ensemble bobine |
| 40 |
0439954 |
RETAINER, CAM & LINK Assy |
| 42 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 45 |
5000611 |
CHARGE COIL & LAM. ASSY. |
| 47 |
0512743 |
DISPOSITIF DE RETENUE |
