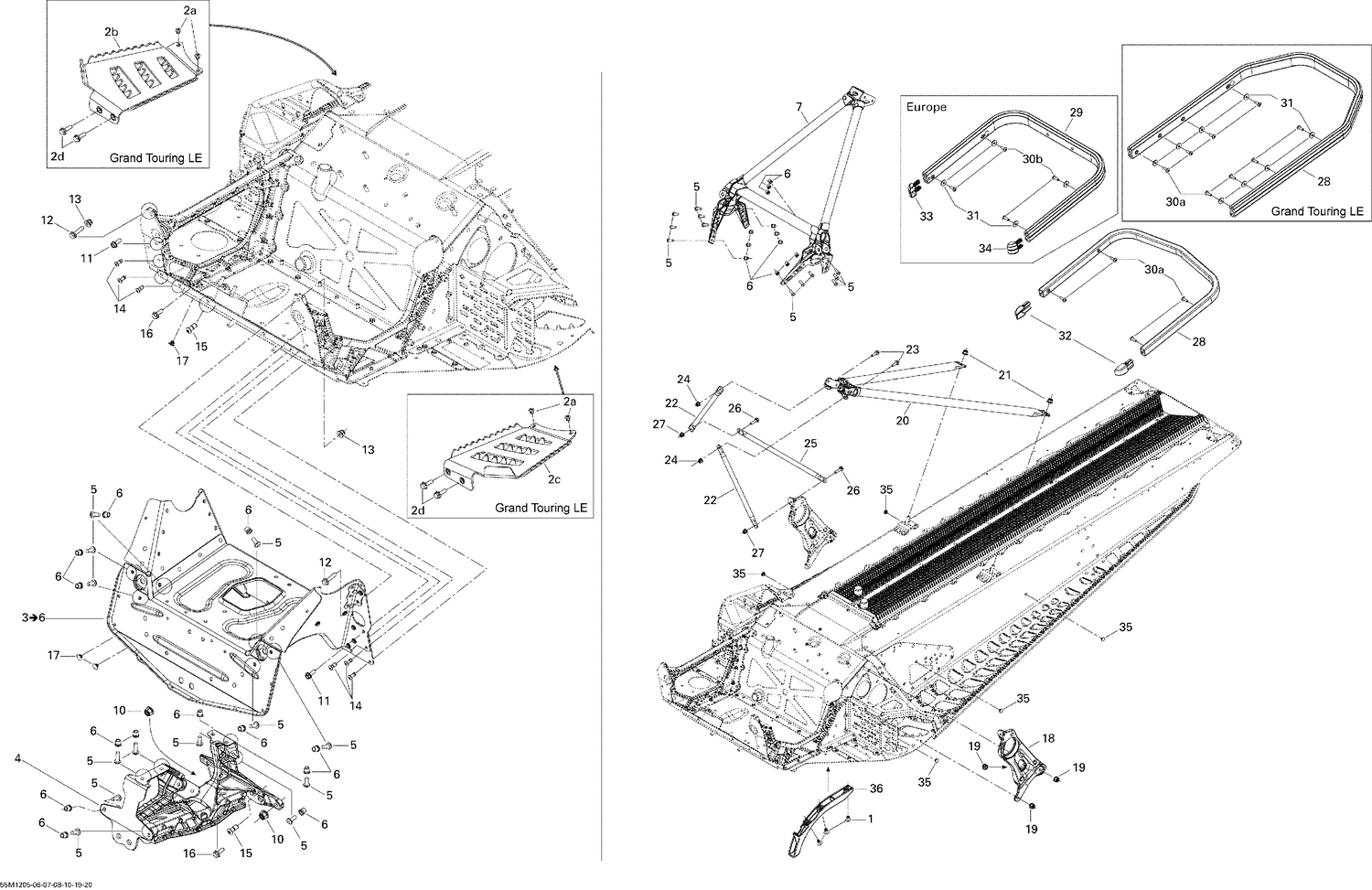

| Ref | Part Number | Description |
|---|
| 1 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 2a |
XXX |
Not Available As Spare Parts |
| 2b |
XXX |
Not Available As Spare Parts |
| 2c |
XXX |
Not Available As Spare Parts |
| 2d |
XXX |
Not Available As Spare Parts |
| 4 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 5 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
518326970 |
Front Member |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 12 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 15 |
293150182 |
Monobolt Rivet 6.4 |
| 16 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 17 |
293730042 |
Full Moon Dart 5 mm |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
518326559 |
Rear Member |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 22 |
518325114 |
Upper Lateral Column Support |
| 23 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 24 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 25 |
518325115 |
Center Column Support |
| 26 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
518325481 |
Black Rear Bumper 137" |
| 30a |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 32 |
520000840 |
BLACK CAP - Call your local BRP dealership |
| 35 |
293730047 |
Black, Dart 8 mm |
| 36 |
518326973 |
Front Tunnel Protector |
