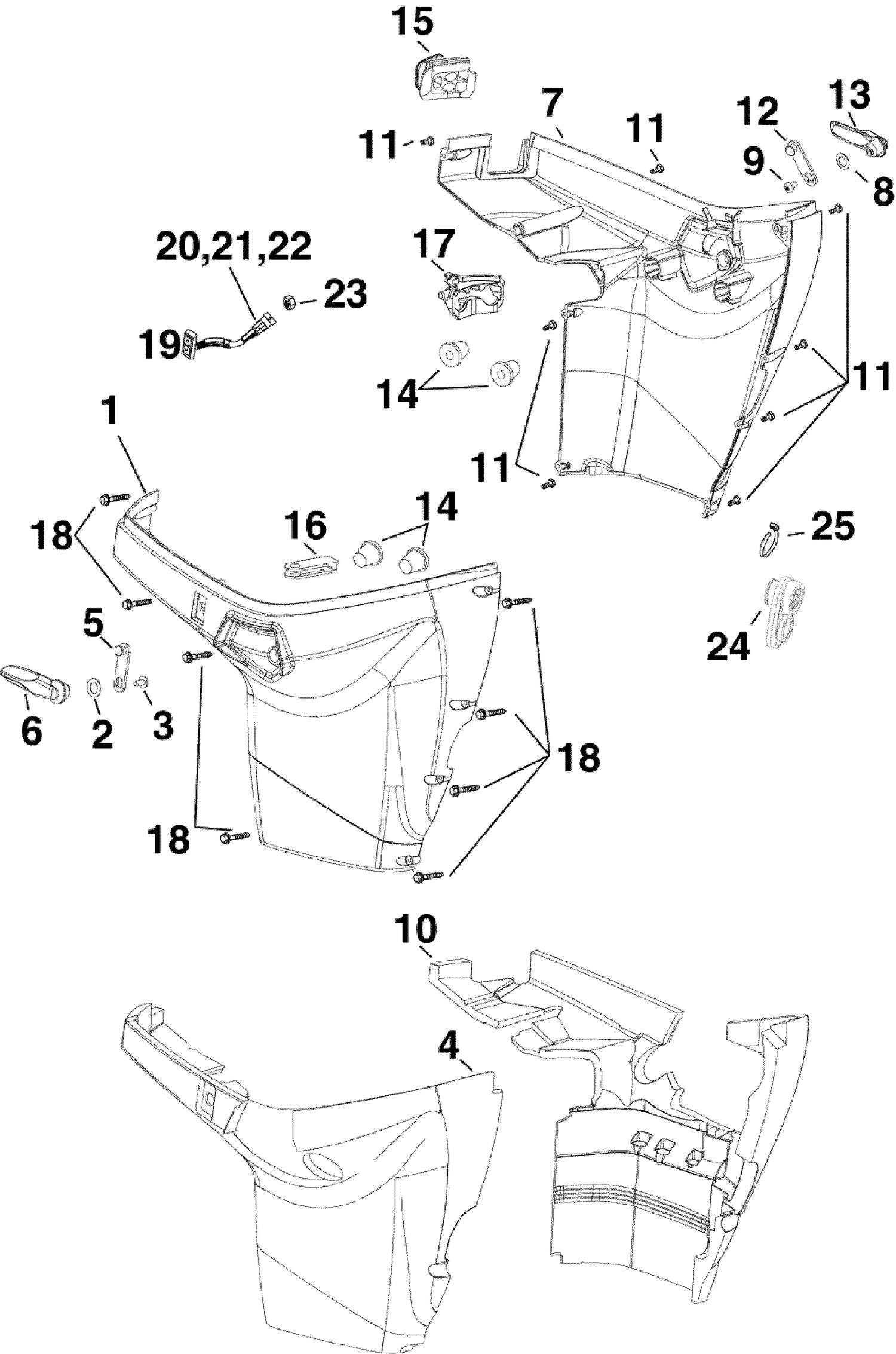

LOWER ENGINE COVER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008668 | LOWER COVER Assembly, Port This part replaces 5005365. |
| 1 | 5008670 | LOWER COVER Assembly, Port This part replaces 5005285. |
| 7 | 5008669 | LOWER COVER Assembly, Starboard This part replaces 5005366. |
| 7 | 5008671 | LOWER COVER Assembly, Starboard This part replaces 5005286. |
| 14 | 0332413 | MOUNT |
| 15 | 0350500 | GROMMET, Control cable |
| 17 | 0351674 | GROMMET, Steering arm |
| 18 | 0351152 | SCREW, Port cover to starboard cover |
| 24 | 0354162 | GROMMET This part replaces 0351232. |
