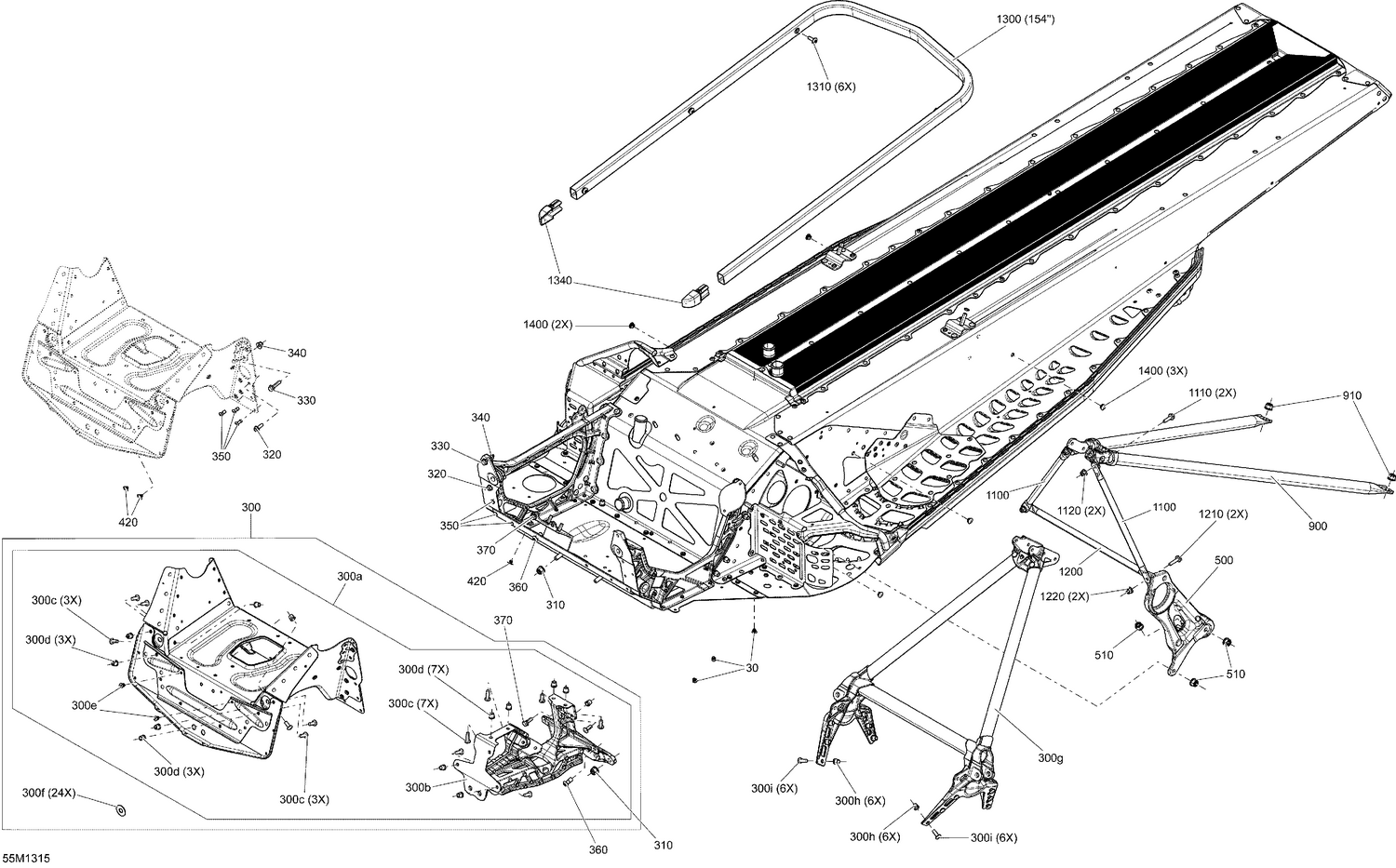

09- Frame And Components
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 390402400 | Pop Rivet 3/16" |
| 300b | 518327487 | Front Suspension Support This part replaces 518327475. |
| 300c | 207662044 | Hex. Flange Screw M6 X 20 |
| 300d | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300e | 293150144 | Stavex Rivet |
| 300f | 505072392 | Washer |
| 300g | 518327565 | Front Member |
| 300h | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 300i | 207662044 | Hex. Flange Screw M6 X 20 |
| 310 | 233281414 | Hex. Flange Elastic Nut M8 |
| 320 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 330 | 207662544 | Hex. Flange Screw M6 X 25 |
| 340 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 350 | 293150191 | Monobolt Rivet, 4.8 mm |
| 360 | 293150182 | Monobolt Rivet 6.4 |
| 370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 420 | 293730053 | Black Dart 5 mm |
| 500 | 518327460 | Driven Pulley Support This part replaces 518327133. |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 900 | 518326559 | Rear Member |
| 910 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1100 | 518325114 | Upper Lateral Column Support |
| 1110 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1200 | 518325115 | Center Column Support |
| 1210 | 207662544 | Hex. Flange Screw M6 X 25 |
| 1220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1300 | 518326049 | Black Rear Bumper, 154" |
| 1310 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 1340 | 520000840 | BLACK CAP - Call your local BRP dealership |
