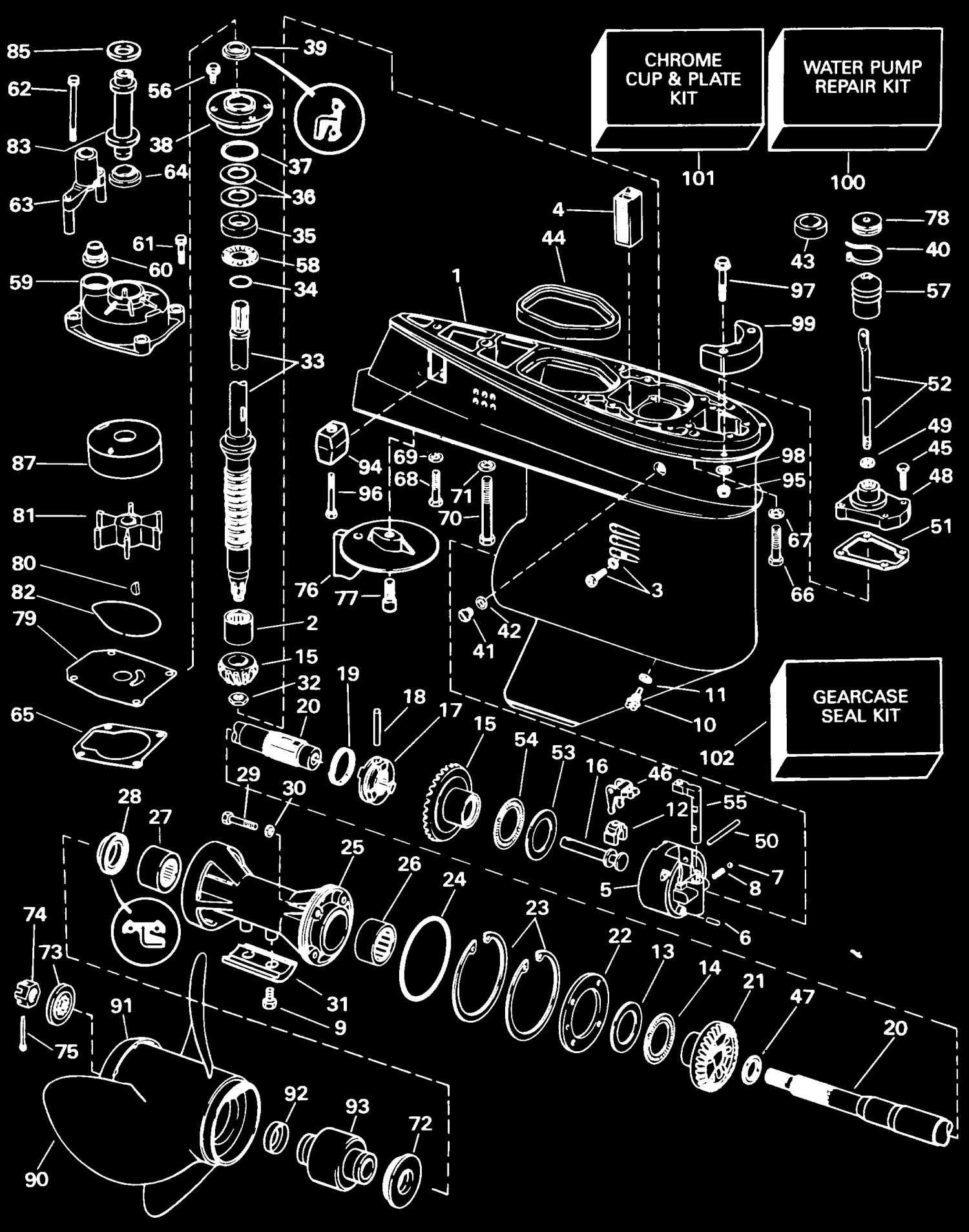

| Ref | Part Number | Description |
|---|
| 1 |
5009348 |
Grcse&Brg Prime This part replaces 0437031. |
| 28 |
0342787 |
SEAL |
| 33 |
5000167 |
DRIVESHAFT ASSY. |
| 33 |
5000168 |
DRIVESHAFT ASSY. |
| 33 |
5000169 |
DRIVESHAFT ASSY. |
| 37 |
0313754 |
O RING |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 |
0438545 |
IMPELLER HOUSING |
| 63 |
0438424 |
BRACKET, Water tube |
| 66 |
0305282 |
BOLT, Bowl & suction piece |
| 67 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 68 |
0306503 |
SCREW, Short |
| 68 |
0328561 |
SCREW, Gearcase mounting |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 70 |
0329022 |
SCREW, Gearcase to exh. hsg. |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0127466 |
TRIM TAB |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 85 |
0329171 |
SEAL, Extension to exh housing |
| 90 |
0765182 |
PROPELLER - W Models This part replaces 0391198. |
| 100 |
5000308 |
WATER PUMP REPAIR KIT |
| 101 |
0389145 |
CHROME CUP & PLATE KIT |
| 0392461 |
0392461 |
ANODE KIT |
| 5000251 |
5000251 |
GEARCASE ASSY. |
| 5000252 |
5000252 |
GEARCASE ASSY. |
| 5000253 |
5000253 |
GEARCASE ASSY. |
