Parts Catalog

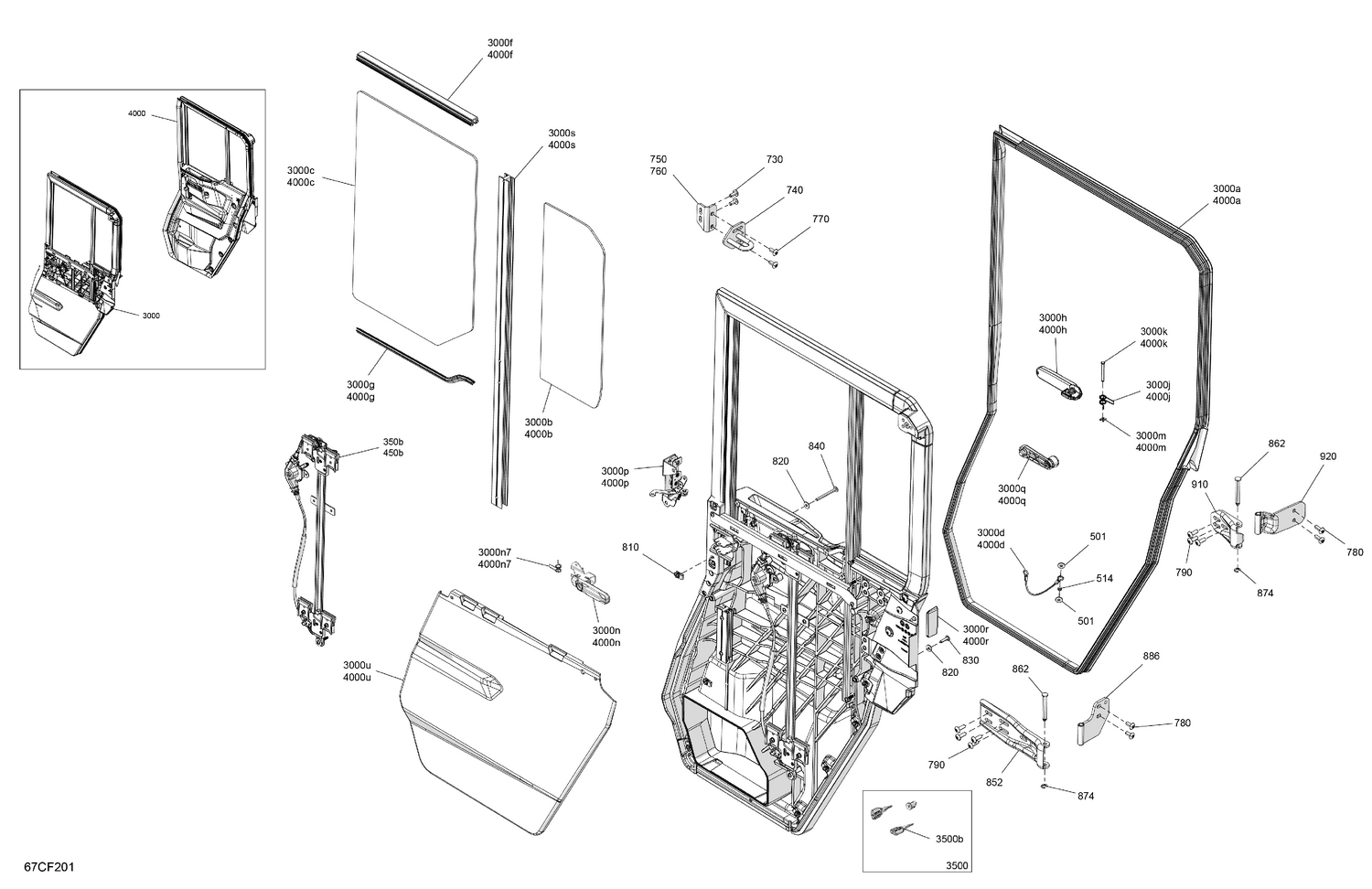

07- Enclosure Cab - Rear Doors

Parts (54)

Ref	Part Number	Description
350b	715900996	LH Rear Window Regulator
450b	715900997	RH Rear Window Regulator
501	250200029	Washer M6
508	250000722	Torx Screw M6 X 20
514	708300737	Bushing
730	250000953	Torx Truss M/S M8 X 20
740	705801024	Rear Door Stricker
750	705800851	LH Striker Support
760	705800852	RH Support Striker
770	250000953	Torx Truss M/S M8 X 20
780	250000953	Torx Truss M/S M8 X 20
790	250000874	Torx Truss M8 X 25
810	250100198	Panel Nut M6 X 1.0
820	234062670	Stainless Steel Flat Washer
830	250000807	Torx Truss Screw M6 X 25
840	250000954	Torx Screw M6 X 70
852	705800751	Door Hinge
862	705800781	Hinge Pin
874	293370125	Retaining Ring
886	705801025	Lower Hinge
910	705800752	Upper Door Hinge
920	705800755	Upper Door Hinge
3000a	705801314	Gasket
3000b	705801373	Rear Door Window
3000c	705801378	Sliding Cab Window
3000d	705800903	Retaining Cable
3000f	705801315	Gasket
3000g	705800870	Gasket
3000h	705017152	Door Handle
3000j	705013062	Handle Spring
3000k	705207440	Handle Axle
3000m	705601875	External Retaining Ring
3000n7	705013062	Handle Spring
3000p	705800874	LH Latch
3000q	705800871	Window Crank
3000r	705800993	Trim
3000s	705800723	Rear Window Guide Extrusion
3000u	705800718	LH Lower Door Panel
3500b	710010366	Key
4000a	705801316	Gasket
4000b	705801376	Rear Door Window
4000c	705801379	Sliding Cab Window
4000d	705800903	Retaining Cable
4000f	705801315	Gasket
4000g	705800870	Gasket
4000h	705017152	Door Handle
4000j	705013062	Handle Spring
4000k	705207440	Handle Axle
4000m	705601875	External Retaining Ring
4000n7	705013062	Handle Spring
4000p	705801467	RH Rear Door Latch This part replaces 705800875.
4000q	705800871	Window Crank
4000r	705800993	Trim
4000s	705800723	Rear Window Guide Extrusion
