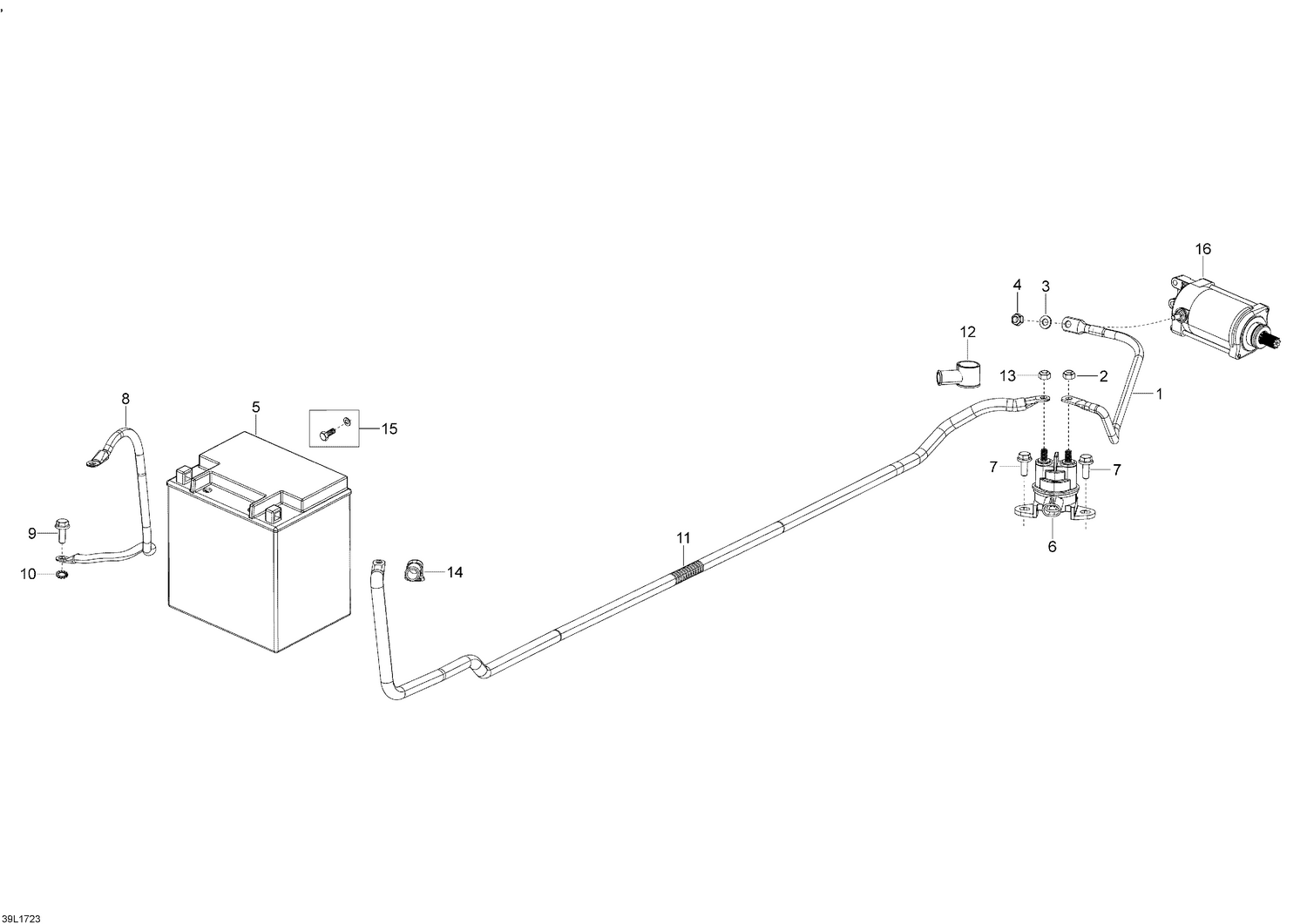

10- Battery And Electric Starter 2018
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176806 | Start Cable |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 415129898 | Battery YUASA YTX20HL |
| 6 | 278003012 | Starter Relay |
| 7 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 8 | 515176780 | Ground Cable |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 250200041 | Serrated Lock Washer |
| 11 | 515176805 | BATTERY CABLE - Call your local BRP dealership |
| 12 | 570151000 | Protection Cap |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 14 | 710000495 | Protector Cap |
| 15 | 250000282 | Battery Bolt Kit |
