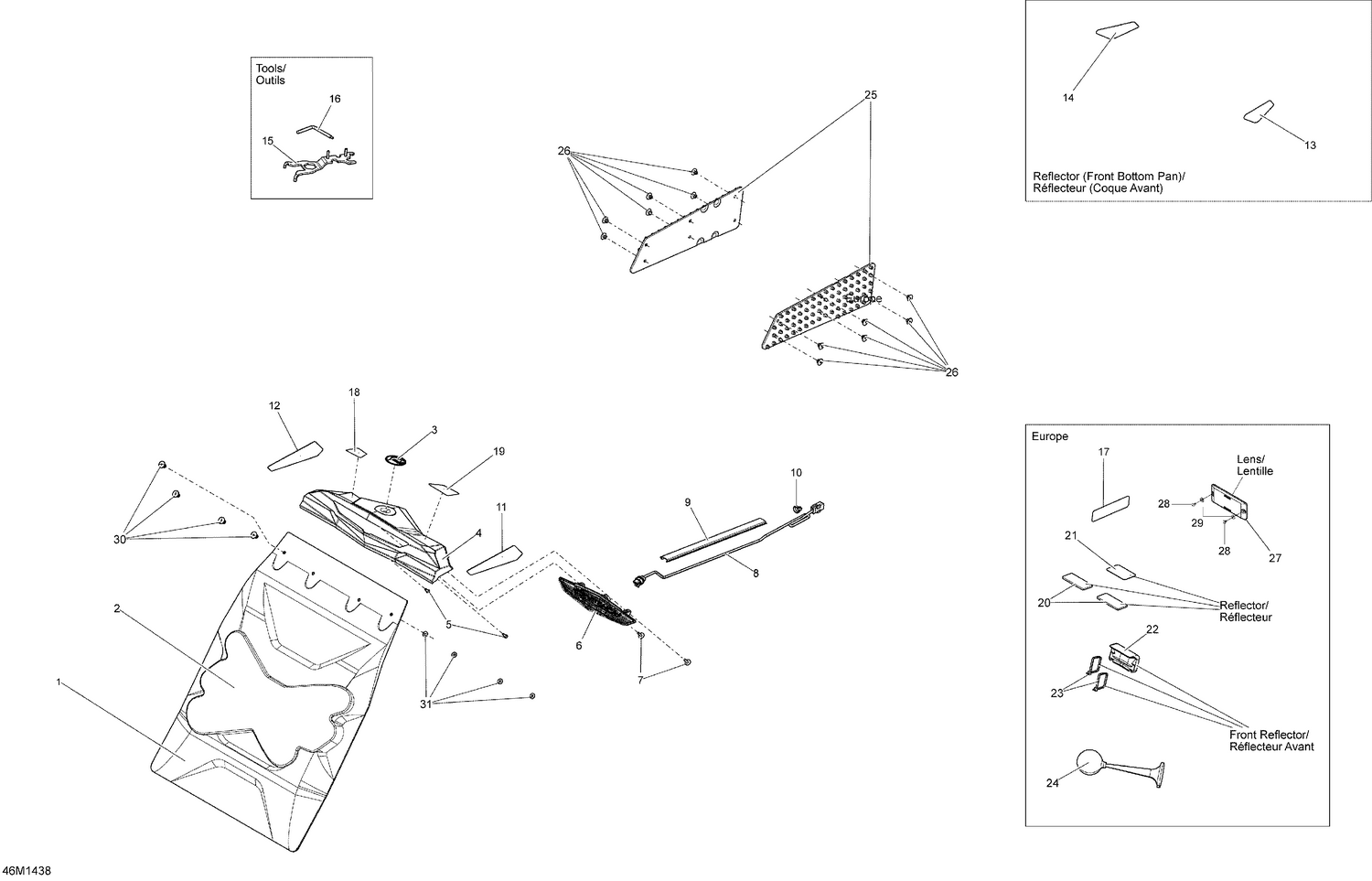

09- Utilities _46M1438
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001441 | Snow Flap |
| 2 | 516003647 | Decal X |
| 3 | 219903947 | BRP Logo 48 mm |
| 4 | 511000810 | Deep Black, Light Fairing |
| 5 | 241141340 | Hex. Screw K40 X 13 |
| 6 | 520001143 | Rear Light |
| 7 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 8 | 515177275 | Wiring Harness Ass'y |
| 9 | 520000829 | Radiator Trim |
| 10 | 293750002 | Tie Wrap 142 mm |
| 13 | 520001237 | Yellow, RH Front Reflector |
| 14 | 520001236 | Yellow, LH Front Reflector |
| 15 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 16 | 417127044 | Belt Installation Tool |
| 18 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership |
| 19 | 516005058 | Warning Decal, Safety |
| 25 | 860200164 | Grip Plate Kit |
| 26 | 293150103 | Pop Rivet 3/16" |
| 30 | 293150104 | Pop Rivet 3/16" |
