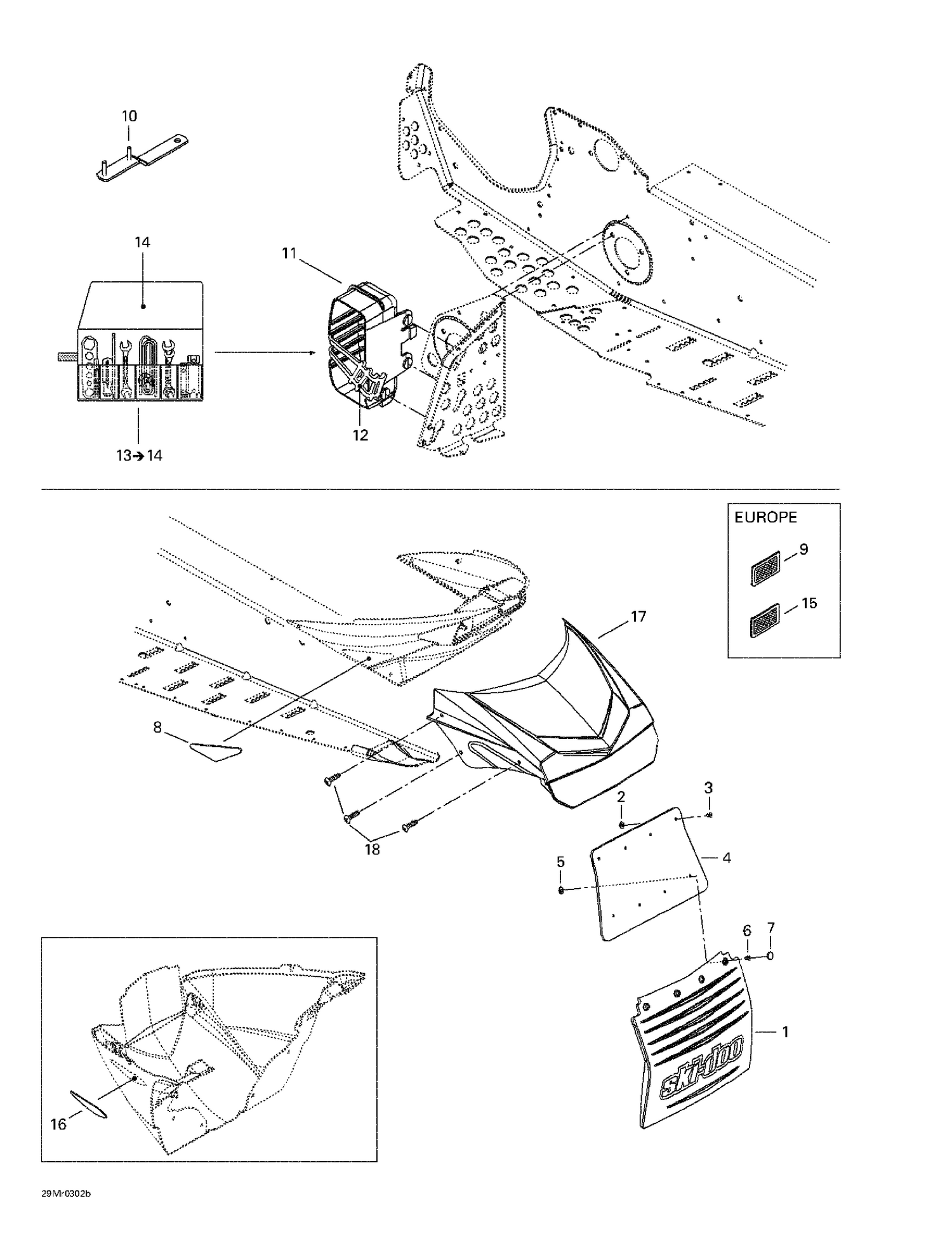

09- Accessories
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000332 | Snow guard |
| 2 | 517225900 | Flat Washer |
| 3 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 4 | 520000333 | Extension |
| 5 | 517225900 | Flat Washer |
| 6 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 7 | 415073300 | Cap |
| 10 | 520000126 | Adjustment Wrench |
| 11 | 520000322 | TRUNK - Call your local BRP dealership |
| 12 | 570069700 | LATCH - Call your local BRP dealership |
| 14 | 520000047 | Tool Bag |
| 16 | 516001336 | FRONT REFLECTOR - Call your local BRP dealership |
| 17 | 520000294 | Frame moulding |
