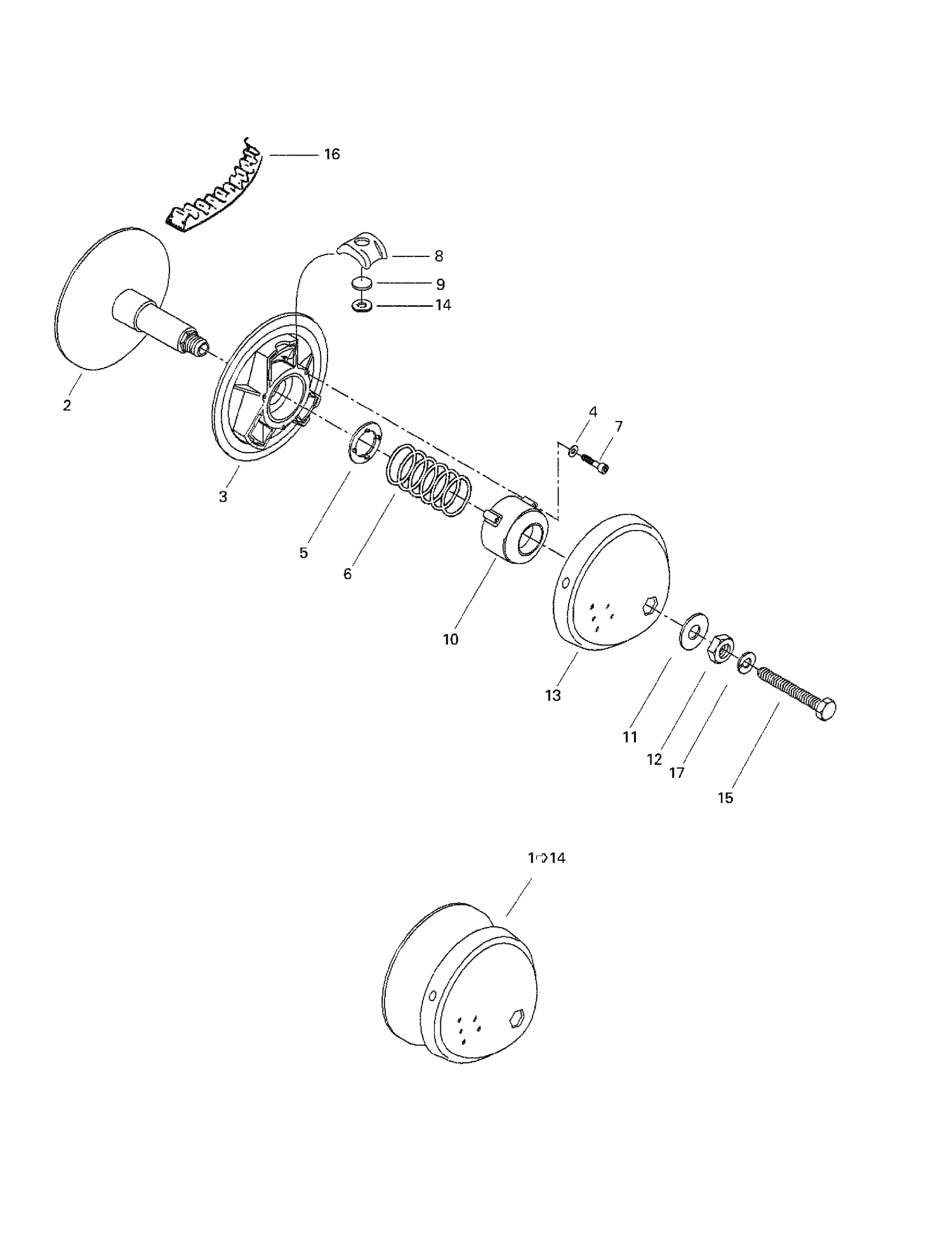

05- Pulleys
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 417121300 | Outer Sliding Flange |
| 4 | 420245370 | WASHER - Call your local BRP dealership |
| 5 | 417116200 | Guide Washer |
| 6 | 417118400 | Spring (Red/Blue) |
| 7 | 222964066 | Allen Screw M6 x 40 |
| 8 | 417118100 | CENTRIFUGE BLOCK - Call your local BRP dealership |
| 9 | 417120400 | ADJUSTMENT WEIGH - Call your local BRP dealership |
| 10 | 417121400 | Spring Cover |
| 11 | 417122400 | Washer |
| 12 | 417118300 | NUT - Call your local BRP dealership |
| 13 | 417125100 | Cap |
| 14 | 417114500 | CAPSULE - Call your local BRP dealership |
| 15 | 417113800 | BOLT - Call your local BRP dealership |
| 16 | 415060600 | Drive Belt |
| 17 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
