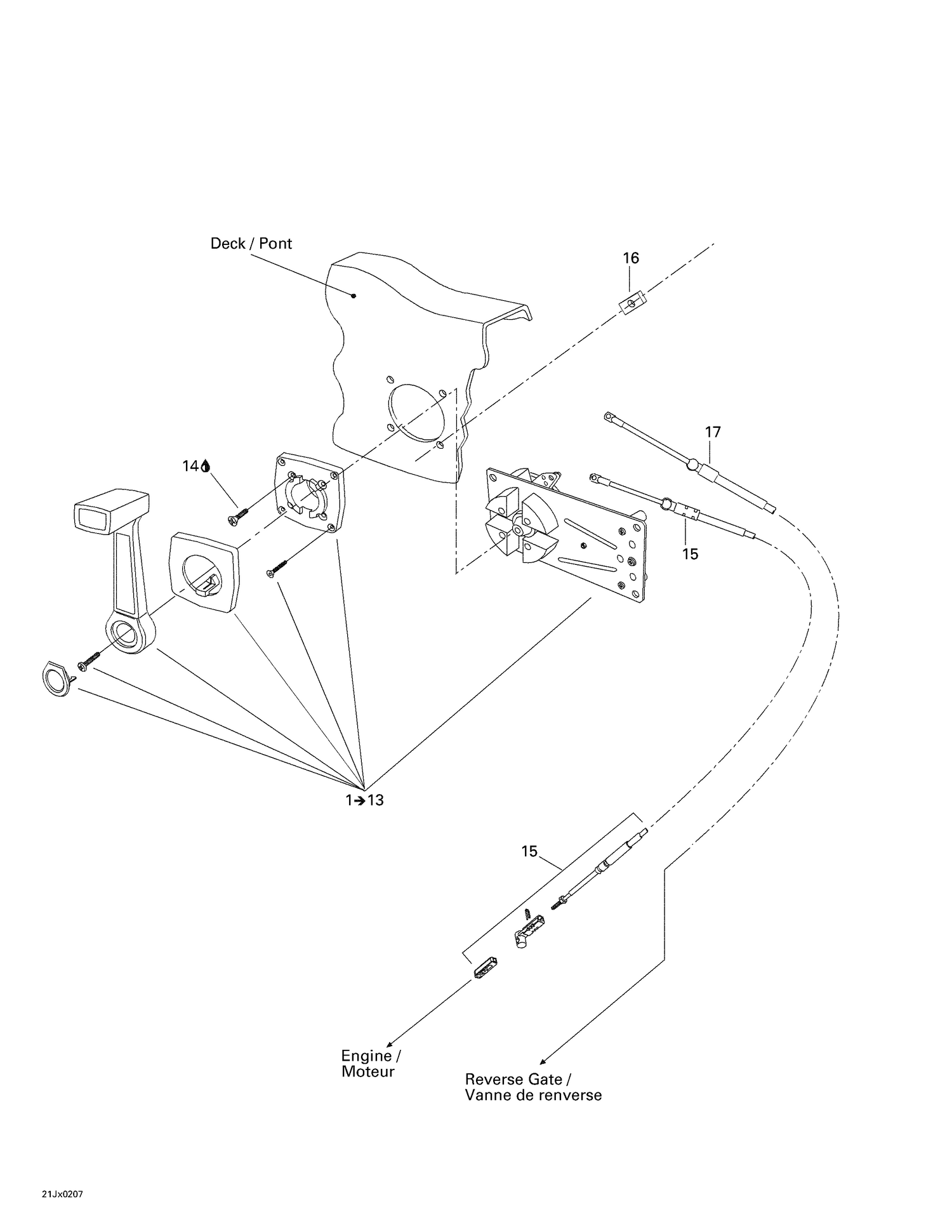

| Ref | Part Number | Description |
|---|
| 2 |
204390314 |
OUTER FLANGE - Call your local BRP dealership |
| 3 |
204100103 |
Screw M3 X 10 |
| 4 |
204100111 |
Locking Nut M3 |
| 5 |
278001195 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership This part replaces 204390315. |
| 6 |
204390316 |
Shifter Handle |
| 7 |
204390317 |
Shifter Mecanism |
| 8 |
204390318 |
Cable Retainer Kit |
| 9 |
204390319 |
CABLE RETAINER KIT - Call your local BRP dealership |
| 10 |
208462060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 11 |
295500919 |
Shift Rod Cable Kit |
| 12 |
204390321 |
LEVER CAP - Call your local BRP dealership |
| 13 |
204390322 |
INNER FLANGE - Call your local BRP dealership |
| 15 |
204390211 |
Throttle Cable |
| 16 |
Not |
Available As Spare Part - Aluminum Insert |
