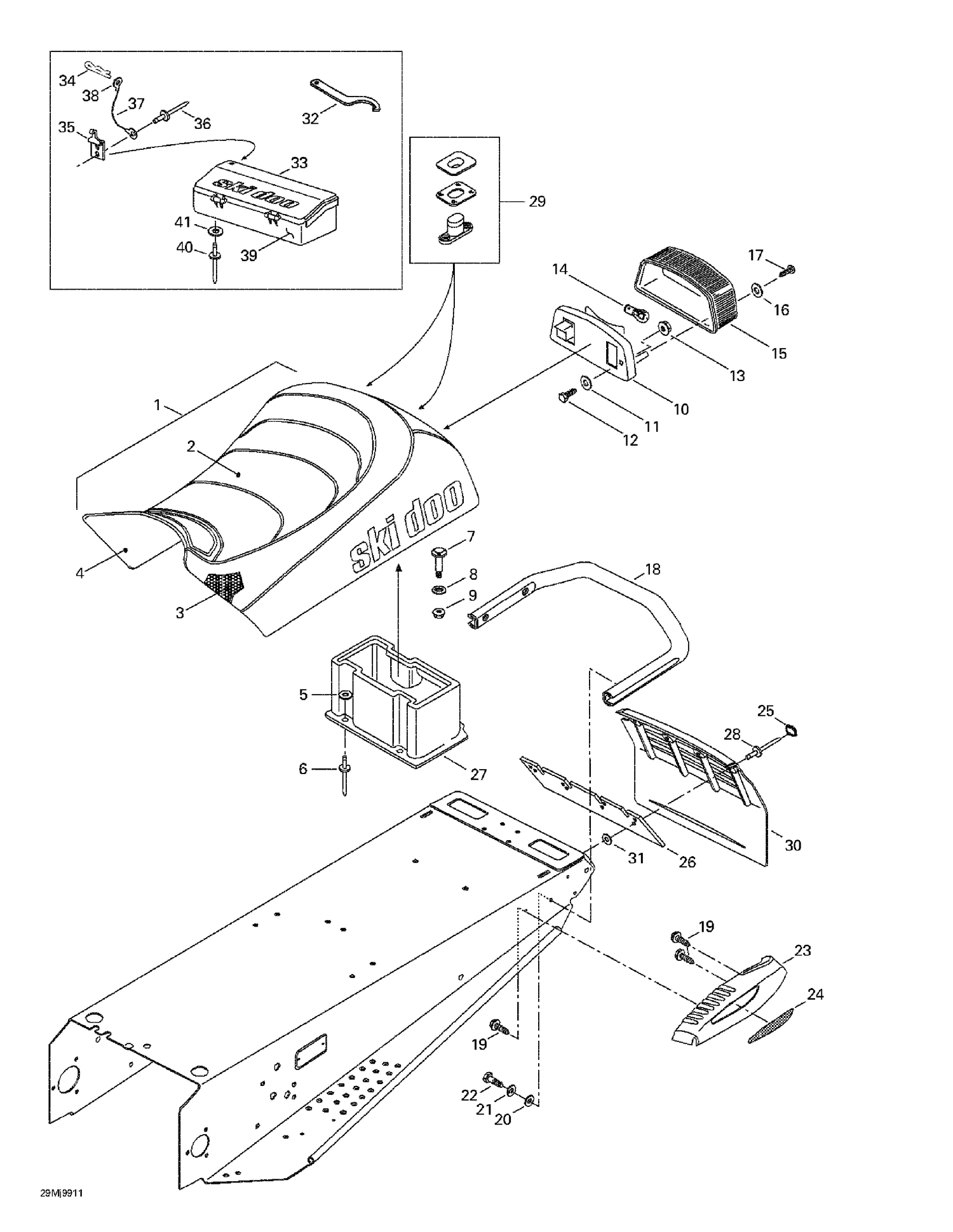

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Seat Ass'y |
| 2 |
510003770 |
Seat Cover |
| 3 |
415046302 |
Foam Seat |
| 4 |
572088200 |
Sub-Seat |
| 5 |
517297900 |
WASHER - Call your local BRP dealership |
| 6 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 8 |
732610072 |
Push Nut |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 11 |
517297900 |
WASHER - Call your local BRP dealership |
| 12 |
207053044 |
Hex. Screw M5 X 30 |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
414513700 |
Lens |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 17 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 18 |
518314000 |
REAR BUMPER - Call your local BRP dealership |
| 19 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 20 |
234081410 |
Flat Washer 8 mm |
| 21 |
234181401 |
Lock Washer 8 mm |
| 22 |
207182044 |
Hex. Screw M8 X 20 |
| 23 |
518321580 |
RH Moulding |
| 24 |
516000237 |
RH Reflector, Red |
| 25 |
415073300 |
Cap |
| 26 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 27 |
572106300 |
Rear Trunk, Se-Air |
| 28 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 29 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 30 |
572103805 |
Snow Guard |
| 31 |
517225900 |
Flat Washer |
| 32 |
529034100 |
ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership |
| 34 |
414112400 |
HAIR PIN - Call your local BRP dealership |
| 35 |
517168500 |
Latch |
| 36 |
Not |
Available As Spare Part - Rivet Pop 5/32 |
| 37 |
Not |
Available As Spare Part - Steel Wire |
| 38 |
561502800 |
Terminal Ring |
| 39 |
529035592 |
Tool Kit (Not Shown) |
| 40 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 41 |
517124300 |
Washer |
| 42 |
515175250 |
Female Terminal Housing, 3 Circuits |
| 43 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 44 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 45 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 518321579 |
LH |
Moulding 518321579 |
