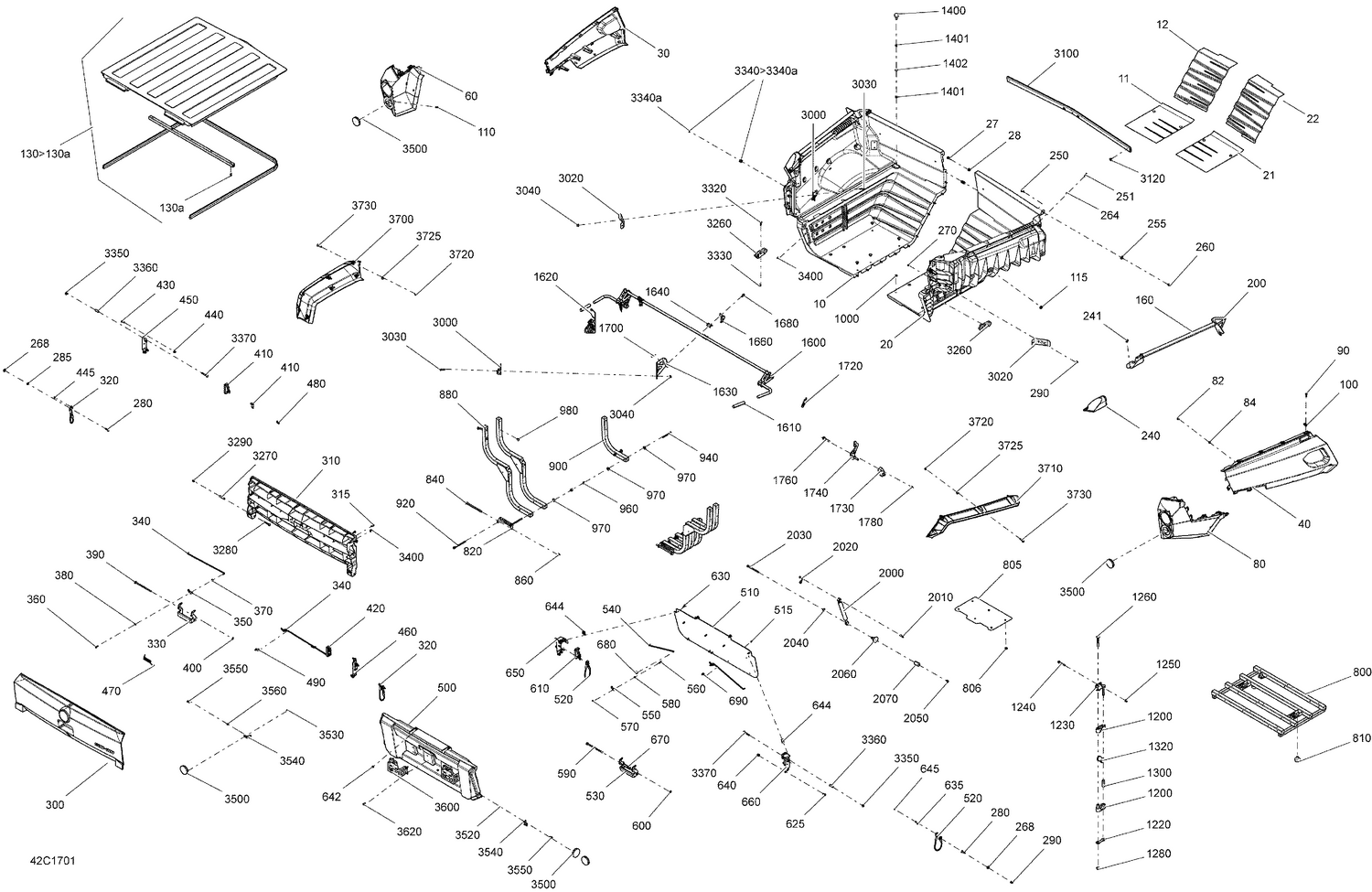

| Ref | Part Number | Description |
|---|
| 10 |
715002361 |
Left Box Kit |
| 11 |
708300809 |
Heat Deflector Sheet |
| 12 |
708300811 |
Heat Deflector Sheet |
| 21 |
708300810 |
Heat Deflector Sheet |
| 22 |
708300812 |
Heat Deflector Sheet |
| 27 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
708301242 |
Yellow LH Rear Fender |
| 30 |
708301250 |
VIPER RED LH REAR FENDER - Call your local BRP dealership |
| 30 |
708301308 |
Quarry Gray LH Rear Fender |
| 30 |
708301312 |
Brush Aluminum LH Rear Fender |
| 30 |
708301687 |
Camo, LH Rear Fender |
| 30 |
708302378 |
Midnight Blue, LH Rear Fender This part replaces 708302019. |
| 30 |
708302380 |
Timeless Black, LH Rear Fender This part replaces 708302052. |
| 40 |
708301243 |
YELLOW RH REAR FENDER - Call your local BRP dealership |
| 40 |
708301251 |
VIPER RED RH REAR FENDER - Call your local BRP dealership |
| 40 |
708301309 |
QUARRY GRAY RH REAR FENDER - Call your local BRP dealership |
| 40 |
708301313 |
Brush Aluminum RH Rear Fender |
| 40 |
708301688 |
Camo, RH Rear Fender |
| 40 |
708302379 |
Midnight Blue, RH Rear Fender This part replaces 708302020. |
| 40 |
708302381 |
Timeless Black, RH Rear Fender This part replaces 708302053. |
| 60 |
708301383 |
LH Rear Facia |
| 80 |
708301384 |
RH Rear Facia |
| 82 |
234081100 |
Flat Washer 8 mm, Nylon |
| 84 |
732610072 |
Push Nut |
| 90 |
250000724 |
Torx Screw M5 X 20 |
| 100 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 110 |
250000720 |
Torx Screw K50 X 16 |
| 115 |
234062670 |
Stainless Steel Flat Washer |
| 130a |
250000720 |
Torx Screw K50 X 16 |
| 250 |
250000721 |
Torx Truss Screw M6 X 16 |
| 251 |
250000722 |
Torx Screw M6 X 20 |
| 255 |
234062670 |
Stainless Steel Flat Washer |
| 260 |
232361493 |
Domed Nut M6 |
| 264 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 268 |
234062670 |
Stainless Steel Flat Washer |
| 270 |
708300737 |
Bushing |
| 280 |
250000758 |
Torx Screw M6 X 25 |
| 285 |
224061121 |
Flat Washer |
| 290 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 300 |
708301256 |
Yellow Outside Top Pannel |
| 300 |
708301257 |
VIPER RED OUTSIDE TOP PANNEL - Call your local BRP dealership |
| 300 |
708301310 |
QUARRY GRAY OUTSIDE TOP PANNEL - Call your local BRP dealership |
| 300 |
708301693 |
Camo, Outside Top Panel |
| 300 |
708302363 |
Midnight Blue, Top Panel This part replaces 708302021. |
| 300 |
708302403 |
Timeless Black, Top Panel This part replaces 708301583. |
| 310 |
708300053 |
Inside Top Pannel |
| 315 |
250000720 |
Torx Screw K50 X 16 |
| 320 |
708300763 |
Upper Retainer Cable |
| 330 |
708300398 |
Handle |
| 340 |
708300160 |
Top Rod |
| 350 |
708300184 |
Activator |
| 360 |
250000720 |
Torx Screw K50 X 16 |
| 370 |
234061410 |
Flat Washer 6 mm |
| 380 |
708300365 |
Bushing |
| 390 |
230663084 |
Hex. Flange Screw M6 X 130 |
| 400 |
732610072 |
Push Nut |
| 410 |
708300162 |
LH Latch |
| 420 |
708300201 |
RH Latch |
| 430 |
250000722 |
Torx Screw M6 X 20 |
| 440 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 445 |
708300737 |
Bushing |
| 450 |
708300359 |
LH Upper Support |
| 460 |
708300360 |
RH Upper Support |
| 470 |
708300219 |
Spring |
| 480 |
708300182 |
LH Tie Rod Clip |
| 490 |
708300202 |
RH Tie Rod Clip |
| 500 |
715002365 |
Outside Bottom Pannel Ass'y |
| 510 |
708300073 |
INSIDE BOTTOM PANNEL - Call your local BRP dealership |
| 515 |
250000720 |
Torx Screw K50 X 16 |
| 520 |
708300762 |
Lower Retainer Cable |
| 530 |
708300398 |
Handle |
| 540 |
708300164 |
Lower Bottom Rod |
| 550 |
708300184 |
Activator |
| 560 |
250000720 |
Torx Screw K50 X 16 |
| 570 |
234061410 |
Flat Washer 6 mm |
| 580 |
708300365 |
Bushing |
| 590 |
230663084 |
Hex. Flange Screw M6 X 130 |
| 600 |
732610072 |
Push Nut |
| 610 |
708300162 |
LH Latch |
| 610 |
708300201 |
RH Latch |
| 625 |
250000721 |
Torx Truss Screw M6 X 16 |
| 630 |
250000721 |
Torx Truss Screw M6 X 16 |
| 635 |
250000722 |
Torx Screw M6 X 20 |
| 640 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 642 |
232361493 |
Domed Nut M6 |
| 644 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 645 |
708300737 |
Bushing |
| 650 |
708300361 |
LH Lower Support |
| 660 |
708300362 |
RH Lower Support |
| 670 |
708300219 |
Spring |
| 680 |
708300182 |
LH Tie Rod Clip |
| 690 |
708300202 |
RH Tie Rod Clip |
| 800 |
708300875 |
Black Box Support |
| 805 |
708300780 |
Heat Deflector |
| 806 |
293150103 |
Pop Rivet 3/16" |
| 810 |
708000884 |
Rubber Stopper |
| 820 |
708300185 |
Bracket Pivot |
| 840 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 860 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 880 |
708300879 |
Black Welded Lateral Support |
| 900 |
708300877 |
Black Lateral Support |
| 920 |
207669584 |
Hex. Flange Screw M6 X 95 |
| 940 |
207066544 |
Hex. Screw M6 X 65 |
| 960 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 970 |
234062410 |
Flat Washer 6 mm |
| 980 |
293150100 |
Pop Rivet 3/16" |
| 1000 |
293150104 |
Pop Rivet 3/16" |
| 1200 |
506150400 |
Housing Half |
| 1220 |
506150600 |
Stopper Plate |
| 1230 |
708300210 |
Adjustable Stopper Plate |
| 1240 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 1250 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1260 |
207787044 |
Carriage Bolt M8 X 70 |
| 1280 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1300 |
506150500 |
Housing Bushing |
| 1320 |
708300172 |
Pivot Bushing |
| 1400 |
293720091 |
Frame Rubber Bumper |
| 1401 |
232180600 |
Hex. Jam Nut M8 |
| 1402 |
234181401 |
Lock Washer 8 mm |
| 1600 |
708300751 |
Cargo Handle Ass'y |
| 1610 |
708300358 |
Cap Latch Lever |
| 1620 |
708300278 |
LH Latch Lever Support |
| 1630 |
708300351 |
RH Latch Lever Support |
| 1640 |
705500033 |
Half Ring |
| 1660 |
708300392 |
Clamp Reatiner |
| 1680 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 1700 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1720 |
708300454 |
Spring |
| 1730 |
708300902 |
Spacer |
| 1740 |
708300136 |
Box Retainer |
| 1760 |
207684586 |
Hex. Flange Screw M8 X 45 |
| 1780 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2000 |
708301136 |
Gaz Shock |
| 2010 |
414079100 |
Pin |
| 2020 |
414575600 |
Hair Pin |
| 2030 |
207069044 |
Hex. Screw M6 X 90 |
| 2040 |
234062410 |
Flat Washer 6 mm |
| 2050 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2060 |
708301059 |
Spacer |
| 2070 |
708300470 |
Spacer |
| 3000 |
708300183 |
Retaining Plate |
| 3020 |
708300206 |
Retaining Plate Support |
| 3030 |
250000758 |
Torx Screw M6 X 25 |
| 3040 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3100 |
708301633 |
Front Support |
| 3120 |
293150104 |
Pop Rivet 3/16" |
| 3260 |
708300345 |
Upper Pivot Support |
| 3270 |
708300735 |
Bushing |
| 3280 |
250000749 |
Torx Truss Screw M6 X 50 |
| 3290 |
232361493 |
Domed Nut M6 |
| 3320 |
250000722 |
Torx Screw M6 X 20 |
| 3330 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3340a |
232561600 |
Hex. Elastic Stop Nut M6 |
| 3350 |
234062670 |
Stainless Steel Flat Washer |
| 3360 |
708300736 |
Spacer |
| 3370 |
250000748 |
Torx Screw M6 X 45 |
| 3400 |
293830005 |
Rubber Bumper |
| 3500 |
705011221 |
Red Reflector |
