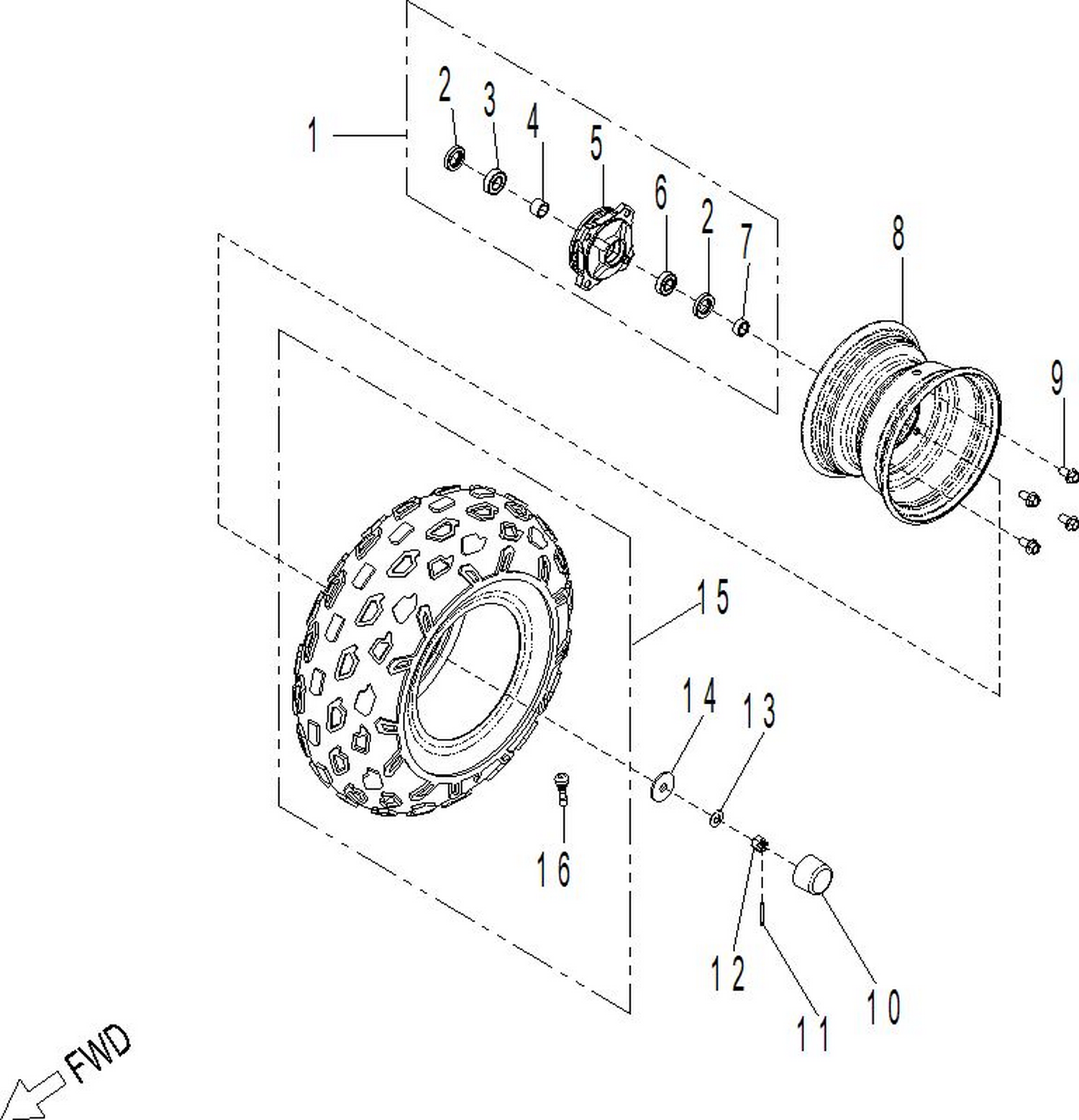

04- Drive - Front Wheel 110
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A96500223507A7271 | Oil Seal |
| 3 | A9610060030ZZ000C0 | Ball Bearing |
| 4 | A4431113100A | Spacer, Inner |
| 5 | A45130204000 | Front Brake Drum |
| 6 | A9610060020ZZ000C0 | Ball Bearing |
| 7 | A4431213100A | Spacer, Outer |
| 8 | A42701153067 | Black, Rim This part replaces A42701153160. |
| 9 | A960001002080B3 | Hexagonal Bolt M10 X 20 |
| 10 | A42730151000 | Rubber Cap |
| 11 | A94201323203 | Cotter Pin |
| 12 | A90351120000C3 | Hexagonal Castelated Nut |
| 13 | A9412112240160C3 | Belleville Washer |
| 14 | A9410112430300C3 | Flat Washer |
