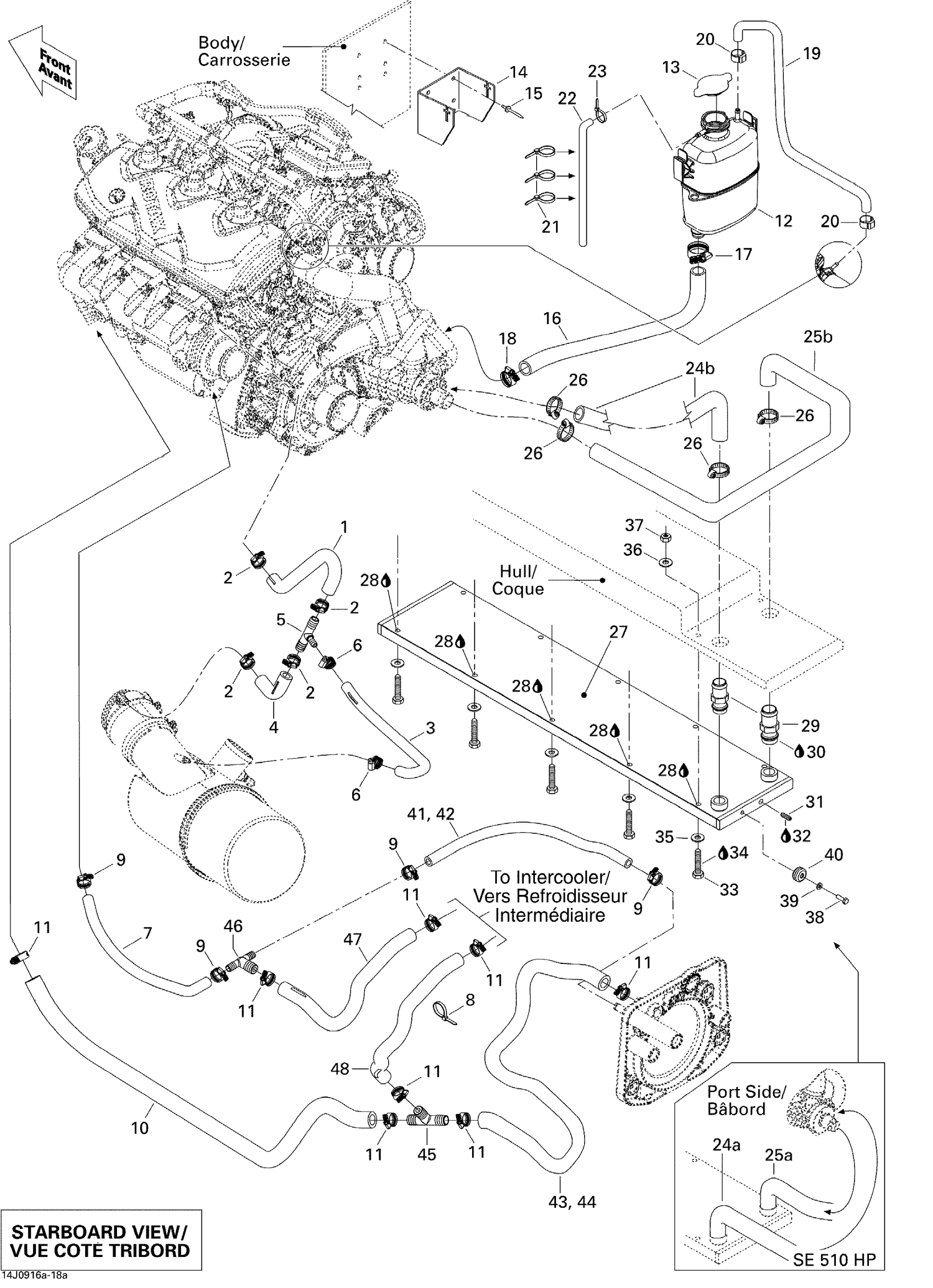

01- Cooling System 1
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 276000484 | Hose, Bypass Upper This part replaces 276000191. |
| 2 | 293650172 | Tridon Gear Clamp |
| 3 | 276000246 | Formed Hose This part replaces 276000209. |
| 4 | 276000455 | Hose, Bypass Lower This part replaces 276000137. |
| 5 | 293710116 | T-Fitting |
| 6 | 293650171 | Tridon Gear Clamp |
| 8 | 293750008 | Tie Wrap 368 mm |
| 9 | 293650172 | Tridon Gear Clamp |
| 11 | 293650051 | Tridon Gear Clamp |
| 12 | 276000086 | Coolant Tank |
| 13 | 276000100 | Pressure Cap |
| 14 | 204300213 | COOLANT TANK BRACKET - Call your local BRP dealership |
| 15 | 204000081 | Pop Rivet 3/16" |
| 17 | 293650051 | Tridon Gear Clamp |
| 18 | 293650019 | Tridon Gear Clamp |
| 20 | 293650025 | Oetiker Gear Clamp |
| 21 | 293750002 | Tie Wrap 142 mm |
| 23 | 293750001 | Tie Wrap 94 mm |
| 26 | 293650045 | Tridon Gear Clamp |
| 27 | 204300235 | HEAT EXCHANGER - Call your local BRP dealership |
| 28 | 219701421 | Instant Gasket This part replaces 293800088. |
| 29 | 204300133 | Hose Fitting - Call your local BRP dealership |
| 31 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 32 | 219704454 | Was 293800013 Loctite 56765 |
| 33 | 205405060 | SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 34 | 293800060 | Loctite 243, 10 ml |
| 35 | 234000600 | Flat Washer 10 mm, Stainless |
| 36 | 234002600 | Flat Washer 10 mm, Stainless |
| 37 | 232001600 | HEX. NUT M10 - Call your local BRP dealership |
| 38 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 39 | 234061600 | Stainless Flat Washer M6 |
| 40 | 271001813 | Anode Zinc This part replaces 271001487. |
| 45 | 293710131 | T-Fitting |
| 46 | 293710132 | T-Fitting |
