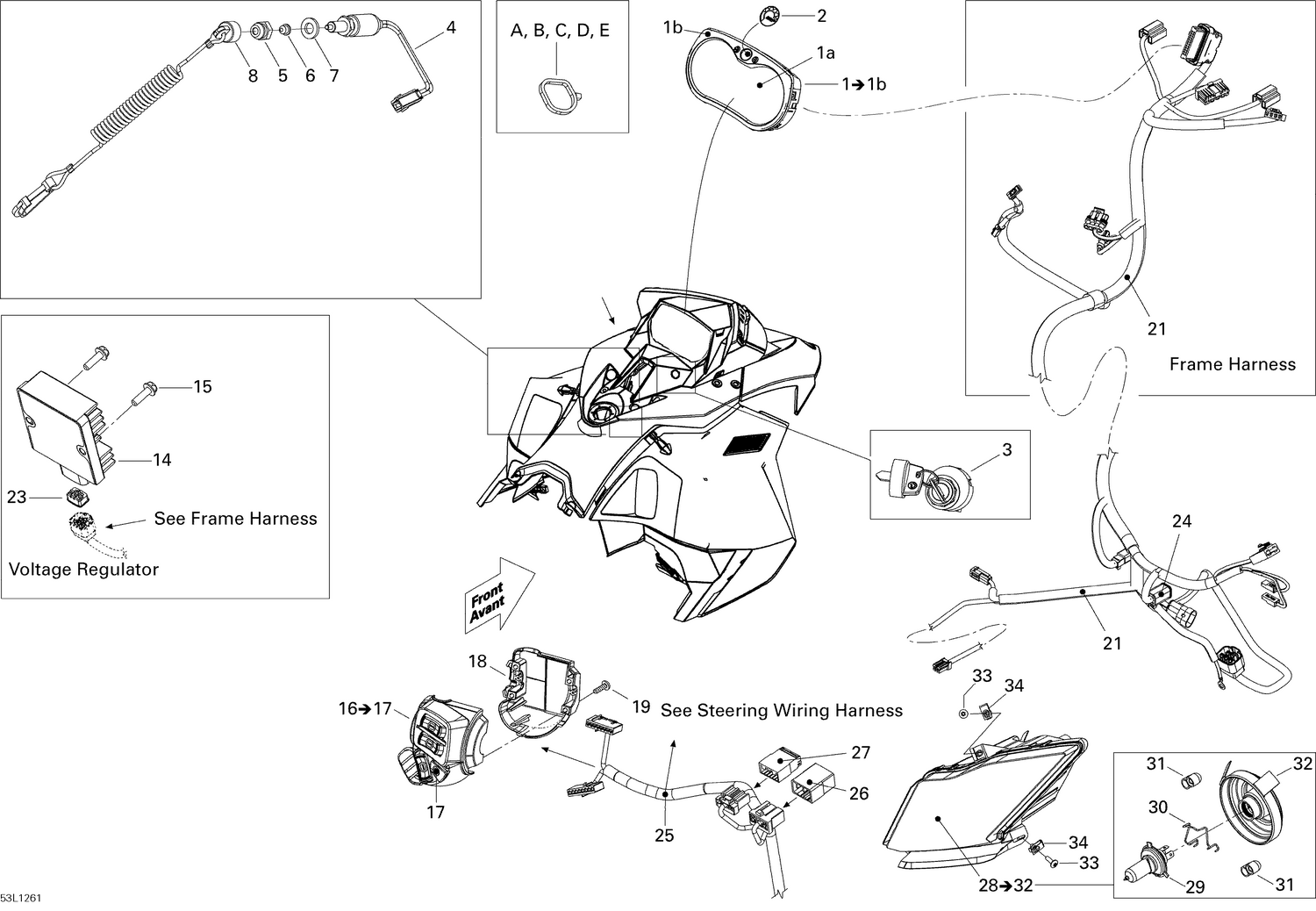

10- Electrical Accessories
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| A | 414115200 | Tie-Rap 180 mm |
| B | 293750002 | Tie-Rap 142 mm |
| C | 293750008 | Tie-Rap 368 mm |
| D | 293750001 | Tie-Rap 94 mm |
| 1a | 415129349 | Lens |
| 1b | 415129348 | Gauge Ring This part replaces 415129491. |
| 2 | 516006224 | BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 3 | 515177063 | Ignition Switch |
| 4 | 515175653 | Brake Switch |
| 5 | 515145900 | Switch Nut |
| 6 | 570151100 | Plunger Cap |
| 7 | 250200084 | Washer |
| 8 | 515178283 | Cap Ass'y This part replaces 515176463. |
| 14 | 515176699 | Voltage Regulator |
| 15 | 210262040 | Hex. Flanged Screw M6 X 20 |
| 17 | 515176088 | Start/RER Button |
| 18 | 515175926 | Housing Switch Plate |
| 19 | 250000263 | Torx Screw #8-18 |
| 21 | 515177094 | WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 23 | 515176681 | Lock |
| 24 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 25 | 515176995 | Steering Wiring Harness |
| 26 | 515175817 | Male Terminal Housing, 8 Circuits |
| 27 | 515175662 | Male Terminal Housing, 6 Circuits |
| 29 | 515176274 | Halogen Bulb, 60/55 W, 12 V |
| 30 | 515176493 | BULB HOLDER - Call your local BRP dealership |
| 31 | 515176498 | Cap |
| 32 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 33 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 34 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
