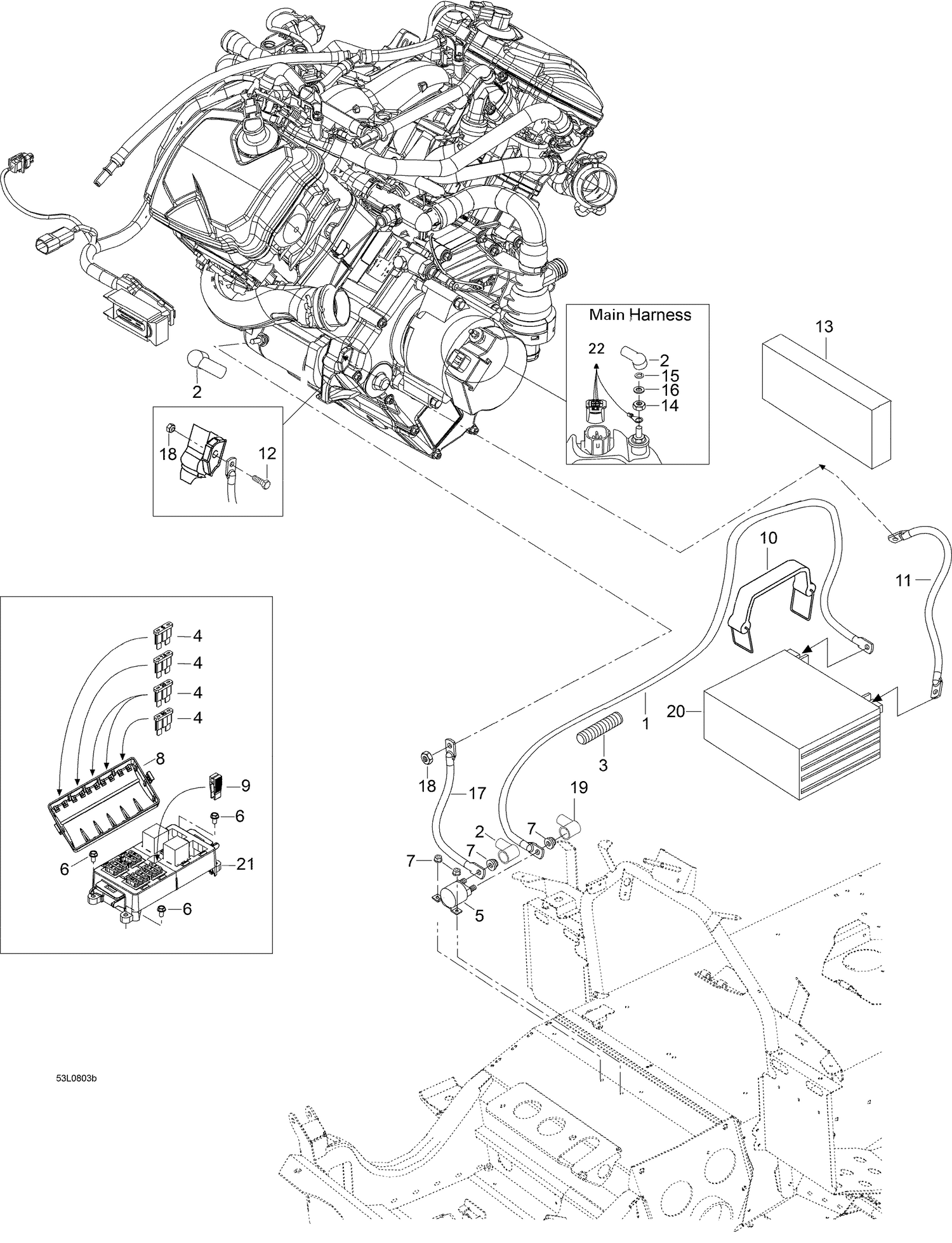

| Ref | Part Number | Description |
|---|
| 1 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 2 |
570151000 |
Cap |
| 3 |
28015 |
Tubing |
| 4 |
278000344 |
Fuse 5 A |
| 4 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 4 |
409003900 |
Fuse 20 A |
| 4 |
410917200 |
Fuse 30 A |
| 4 |
42044 |
FUSE 1 A - Call your local BRP dealership |
| 4 |
42045 |
Fuse 15 A |
| 5 |
515176011 |
Starter relay |
| 6 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 8 |
515176066 |
COVER - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - Tool |
| 10 |
605352573 |
STEEL STRIP - Call your local BRP dealership |
| 11 |
605455189 |
GROUND WIRE - Call your local BRP dealership |
| 12 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 13 |
605352572 |
COVER - Call your local BRP dealership |
| 14 |
20017 |
Nut M6 |
| 15 |
33002 |
Nut M6 |
| 16 |
20052 |
Washer A6,4 |
| 17 |
605355251 |
BATTERY WIRE - Call your local BRP dealership |
| 18 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 19 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 20 |
410922962 |
Battery YUASA YTX24-HL |
| 21 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
