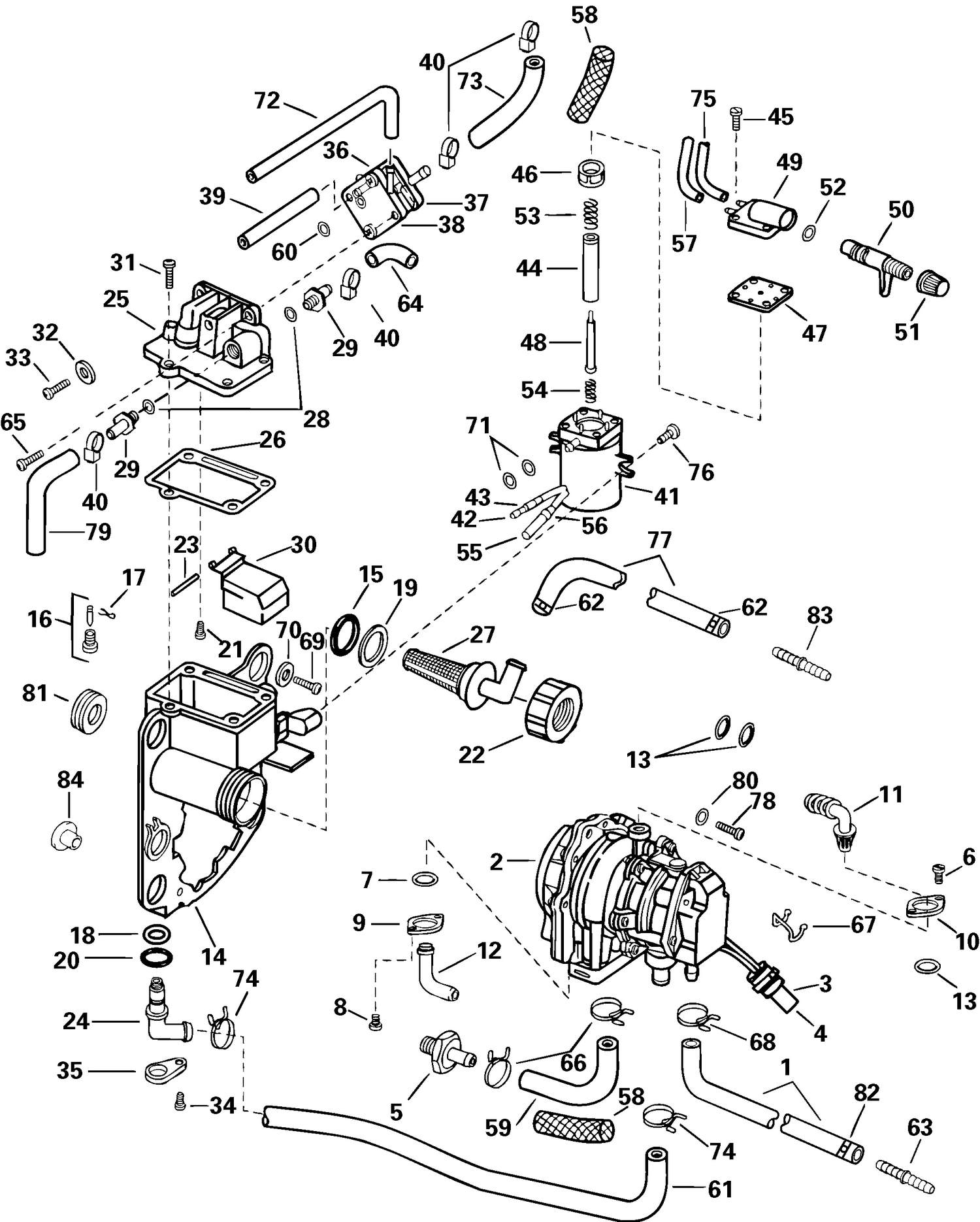

| Ref | Part Number | Description |
|---|
| 1 |
0349051 |
FLEXIBLE, entrée d'huile |
| 2 |
5007420 |
Kit Ay This part replaces 5004558. |
| 9 |
0340201 |
RETAINER |
| 13 |
0335230 |
O-RING |
| 14 |
0340082 |
SUPPORT, éléments du circuit de carburant |
| 17 |
0336842 |
CLIP, SPRING |
| 24 |
0340083 |
RACCORD, sortie du séparateur de vapeur |
| 36 |
0433352 |
PUMP AY, VAPOR |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 41 |
0437232 |
SOLENOID ASSEMBLY, priming |
| 59 |
0334131 |
FLEXIBLE, impulsions |
| 61 |
0339688 |
HOSE, pump to vapor separator |
| 63 |
0358042 |
FITTING, Fuel hose This part replaces 0349008. |
| 64 |
0339607 |
FLEXIBLE, Support to port manifold |
| 65 |
0335229 |
SCREW, Bracket to crkc. cover |
| 66 |
0339278 |
COLLIER DE SERRAGE |
| 67 |
0512743 |
DISPOSITIF DE RETENUE |
| 68 |
0339277 |
CLAMP, Exh back pressure hose |
| 70 |
0336316 |
WASHER, screw, bracket to hood |
| 71 |
0335231 |
O-RING, primer solenoid to bracket |
| 73 |
0336318 |
HOSE, pulses, steam pump to crankcase cover |
| 74 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 77 |
0349881 |
FLEXIBLE, raccord de carburant vers pompe à carburant |
| 79 |
0339606 |
HOSE, bracket to manifold- Starboard |
