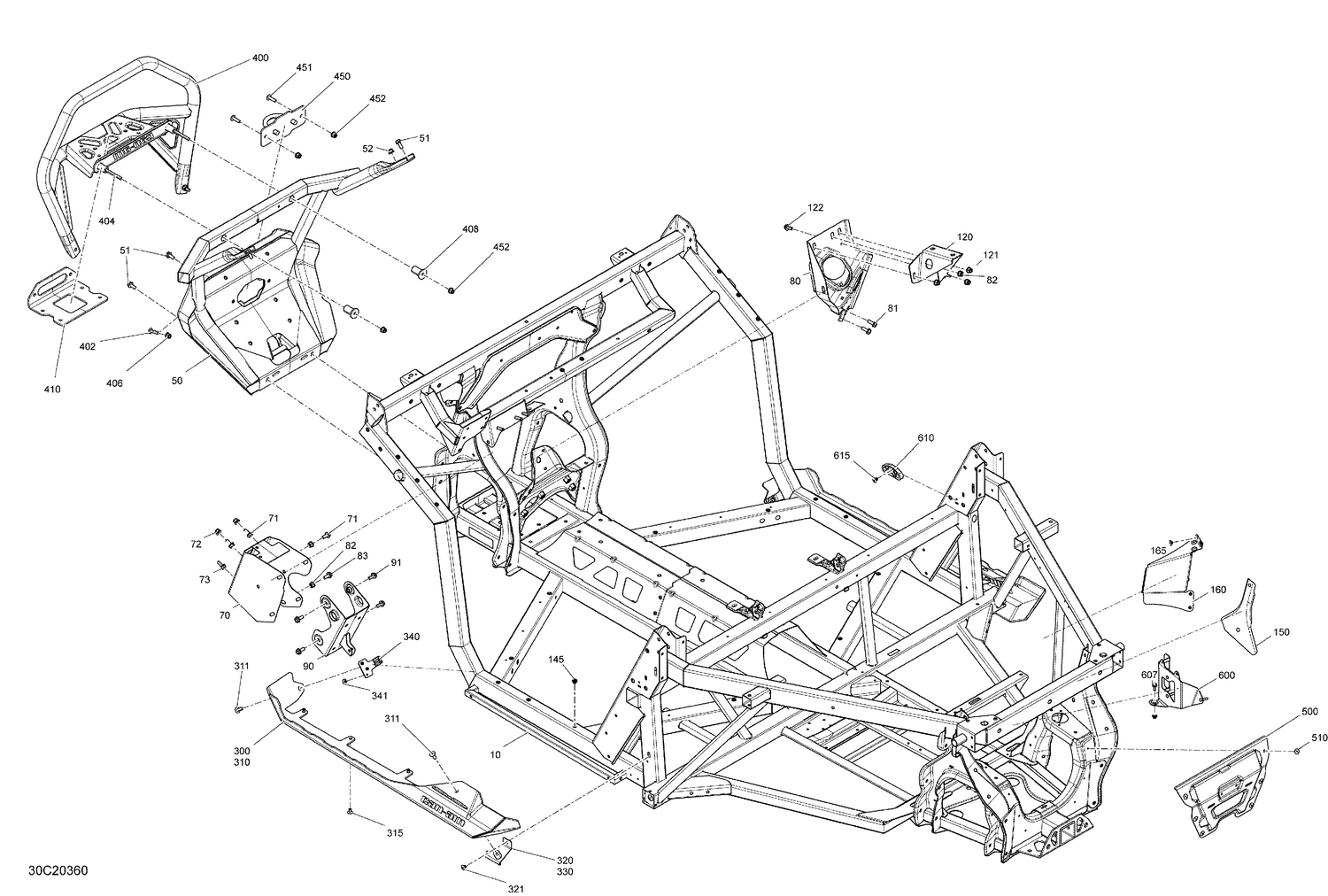

| Ref | Part Number | Description |
|---|
| 10 |
715009075 |
Deep Black, Chassis Kit This part replaces 715006536. |
| 50 |
705207588 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 70 |
705209388 |
Module Support This part replaces 705208747. |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
705208741 |
Power Steering Support |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90 |
705209190 |
Steering Column Support This part replaces 715005429. |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 120 |
705208742 |
Support |
| 121 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 150 |
705014849 |
Heat Shield |
| 160 |
707002717 |
Heat Shield |
| 165 |
293150092 |
Pop Rivet 3/16” |
| 300 |
705208694 |
Manta Green, LH Guard Panel |
| 310 |
705208695 |
Manta Green, RH Guard Panel |
| 311 |
250000874 |
Torx Truss M8 X 25 |
| 315 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 320 |
705206342 |
LH Rock Slider Support |
| 321 |
293150104 |
Pop Rivet 3/16" |
| 330 |
705206343 |
RH Rock Slider Support |
| 340 |
705208661 |
Front Guard Support |
| 341 |
293150104 |
Pop Rivet 3/16" |
| 400 |
715006144 |
XMR FRONT BUMPER - Call your local BRP dealership |
| 402 |
250000886 |
Torx Screw M8 X 30 |
| 404 |
250001106 |
Torx Truss M/S M8 x X 100 |
| 406 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 408 |
705207754 |
Spacer This part replaces 705206398. |
| 410 |
705211620 |
Deep Black, Winch Support This part replaces 705206371. |
| 450 |
705211623 |
Can-Am Red, Front Tow Hook This part replaces 705208723. |
| 451 |
250000886 |
Torx Screw M8 X 30 |
| 452 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 500 |
705207753 |
Rear Chassis Reinforcement |
| 510 |
293150104 |
Pop Rivet 3/16" |
| 600 |
710006644 |
Voltage Regulator Support |
| 607 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 |
705208203 |
Spacer |
