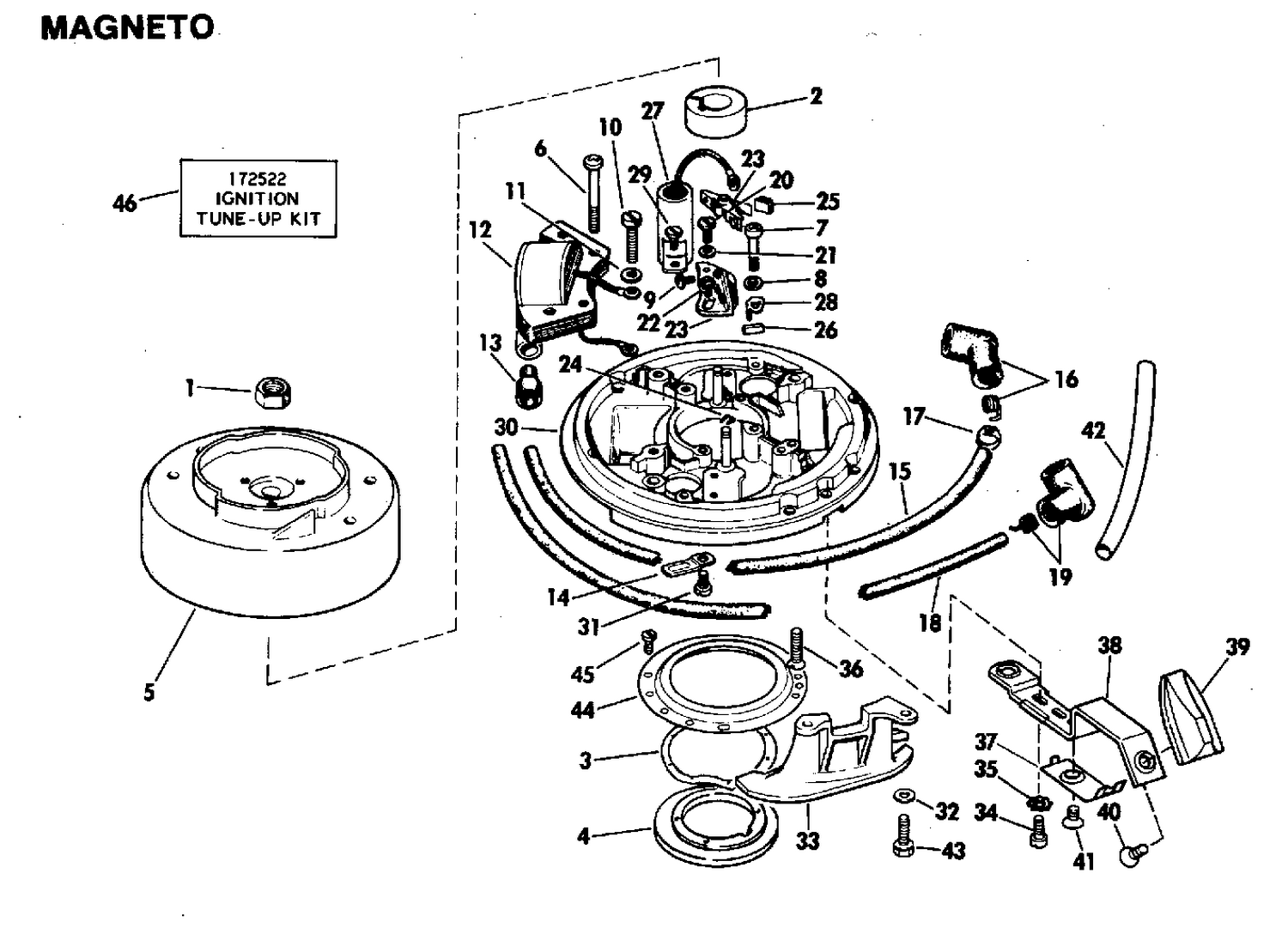

| Ref | Part Number | Description |
|---|
| 2 |
0510167 |
CAM, Magneto |
| 3 |
0552029 |
WAVE WASHER |
| 4 |
0319374 |
RING, Retaining |
| 5 |
0583564 |
FLYWHEEL This part replaces 0582280. |
| 6 |
0510191 |
SCREW |
| 7 |
0510192 |
SCREW |
| 8 |
0360252 |
WASHER This part replaces 0306311. |
| 9 |
0510194 |
SCREW |
| 10 |
0308554 |
SCREW, Detent to lever |
| 10 |
0510397 |
SCREW |
| 12 |
0580971 |
COIL & LAMINATION |
| 14 |
0510190 |
CLAMP |
| 15 |
H.T. |
LEAD ONLY, Upper |
| 17 |
0120783 |
BAND, Identification |
| 18 |
H.T. |
LEAD ONLY, Lower |
| 20 |
0510278 |
SCREW |
| 21 |
0510208 |
BOW WASHER |
| 22 |
0510185 |
ECCENTRIC SCREW |
| 23 |
0580148 |
BEAKER,Assy |
| 27 |
0580321 |
CONDENSER |
| 28 |
0510188 |
CLIP, Oiler |
| 30 |
0581453 |
ARMATURE PLATE AND POST |
| 33 |
0323420 |
THROTTLE CONTROL CAM |
| 34 |
0510338 |
SCREW |
| 35 |
0301736 |
WASHER |
| 36 |
0307163 |
SCREW |
| 37 |
0324509 |
DETENT |
| 38 |
0324508 |
LEVER |
| 39 |
0324510 |
KNOB |
| 40 |
0317502 |
SCREW, Handle knob |
| 44 |
0302599 |
SUPPORT, Armature plate |
| 45 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 0581902 |
0581902 |
H.T. LEAD ASSEMBLY, Upper |
| 0581999 |
0581999 |
ARMATURE PLATE ASSEMBLY |
