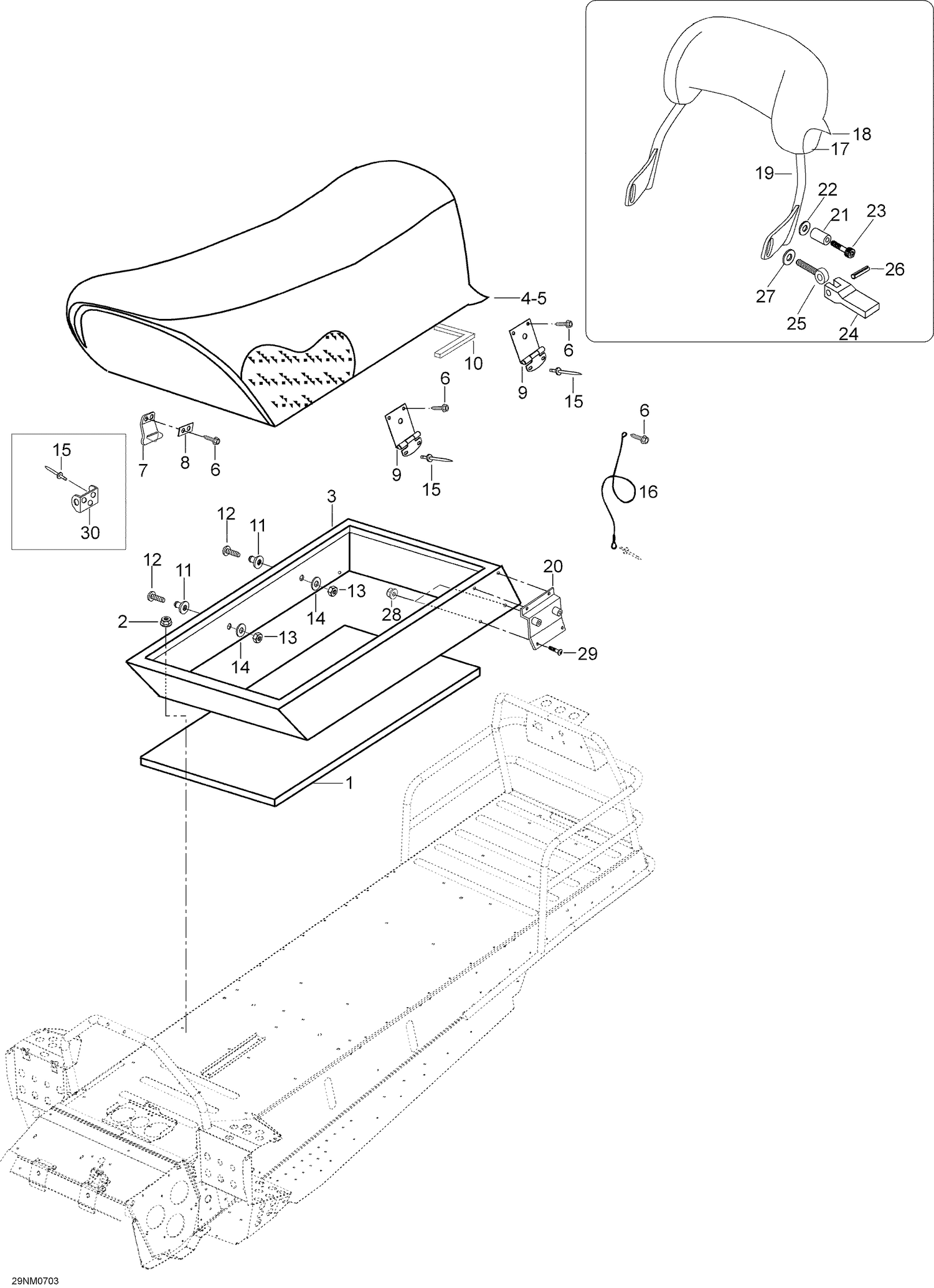

| Ref | Part Number | Description |
|---|
| 1 |
5346331 |
Cover for underseat storage - Call your local BRP dealership |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 |
5246336 |
Seat box |
| 5 |
605153077 |
COVER SEAT - Call your local BRP dealership |
| 6 |
40888 |
Wronic-screw 4,2 x 19 |
| 7 |
5346383 |
LATCH - Call your local BRP dealership |
| 8 |
5446848 |
Support plate |
| 9 |
5446374 |
Hinge for seat ass'y - Call your local BRP dealership |
| 10 |
390002 |
Seal |
| 11 |
605449087 |
Counter roll |
| 12 |
40168 |
Screw M4 x 25 |
| 13 |
33008 |
Nut elastic M4 |
| 14 |
20037 |
Washer A4,3 |
| 15 |
36083 |
Rivet |
| 16 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 17 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 18 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 19 |
5241820 |
Backrest |
| 20 |
5341818 |
L.H. Fixing plate |
| 20 |
5341889 |
R.H. Fixing plate |
| 21 |
5441814 |
Sleeve |
| 22 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 23 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 24 |
5243419 |
Locking Lever |
| 25 |
517250100 |
EYE BOLT - Call your local BRP dealership |
| 26 |
414821400 |
Pin |
| 27 |
20023 |
Washer 10mm |
| 28 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 29 |
40063 |
Screw M5 x 12 |
