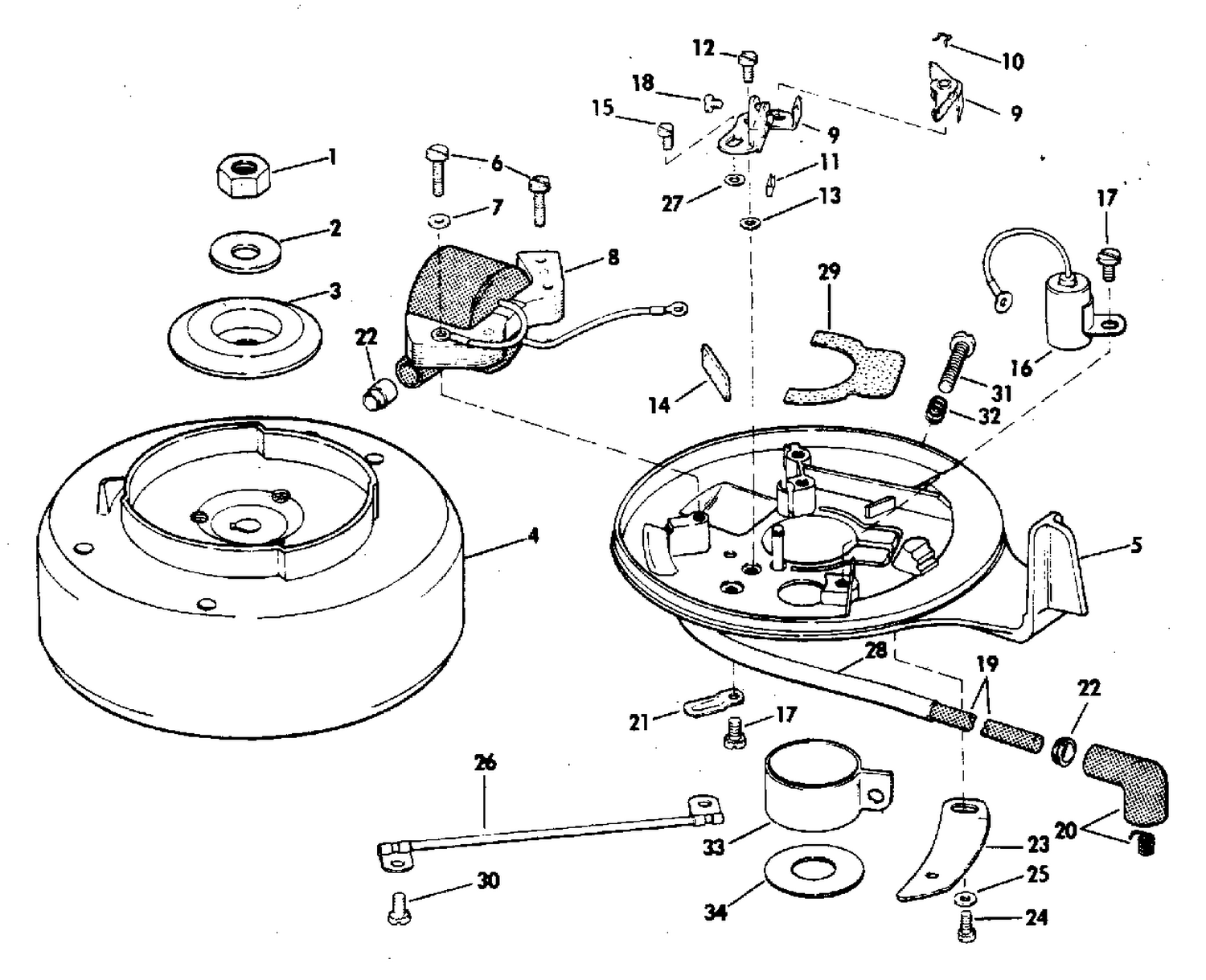

| Ref | Part Number | Description |
|---|
| 3 |
0312759 |
COVER, Flywheel |
| 4 |
0583563 |
FLYWHEEL This part replaces 0580892. |
| 5 |
0582957 |
ARMATURE PLATE & POST This part replaces 0580882. |
| 6 |
0510397 |
SCREW |
| 8 |
0580416 |
CLIP & LAMINATION |
| 9 |
0580148 |
BEAKER,Assy |
| 12 |
0510278 |
SCREW |
| 13 |
0510208 |
BOW WASHER |
| 15 |
0510185 |
ECCENTRIC SCREW |
| 16 |
0580321 |
CONDENSER |
| 18 |
0510194 |
SCREW |
| 19 |
LEAD |
Ref: 20 0581027 *COVER & TERMINAL Assy, Spark plug 0581027 |
| 21 |
0510190 |
CLAMP |
| 23 |
0313536 |
CAM, Armature plate |
| 24 |
0321701 |
SCREW, Cam This part replaces 0304441. |
| 26 |
0580733 |
FIL, masse solénoïde |
| 27 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 28 |
0510772 |
SLEEVE |
| 29 |
0314412 |
GASKET ARMATURE PLATE |
| 30 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 31 |
0306468 |
SCREW, Armature plate |
| 32 |
0307595 |
SPRING ,Armature plate |
| 33 |
0313381 |
LINER, Cyl. to armature plate |
| 0580142 |
0580142 |
LEAD ASST.,H.T. |
| 0580889 |
0581762 |
ARMATURE PLATE ASSY. This part replaces 0580889. |
