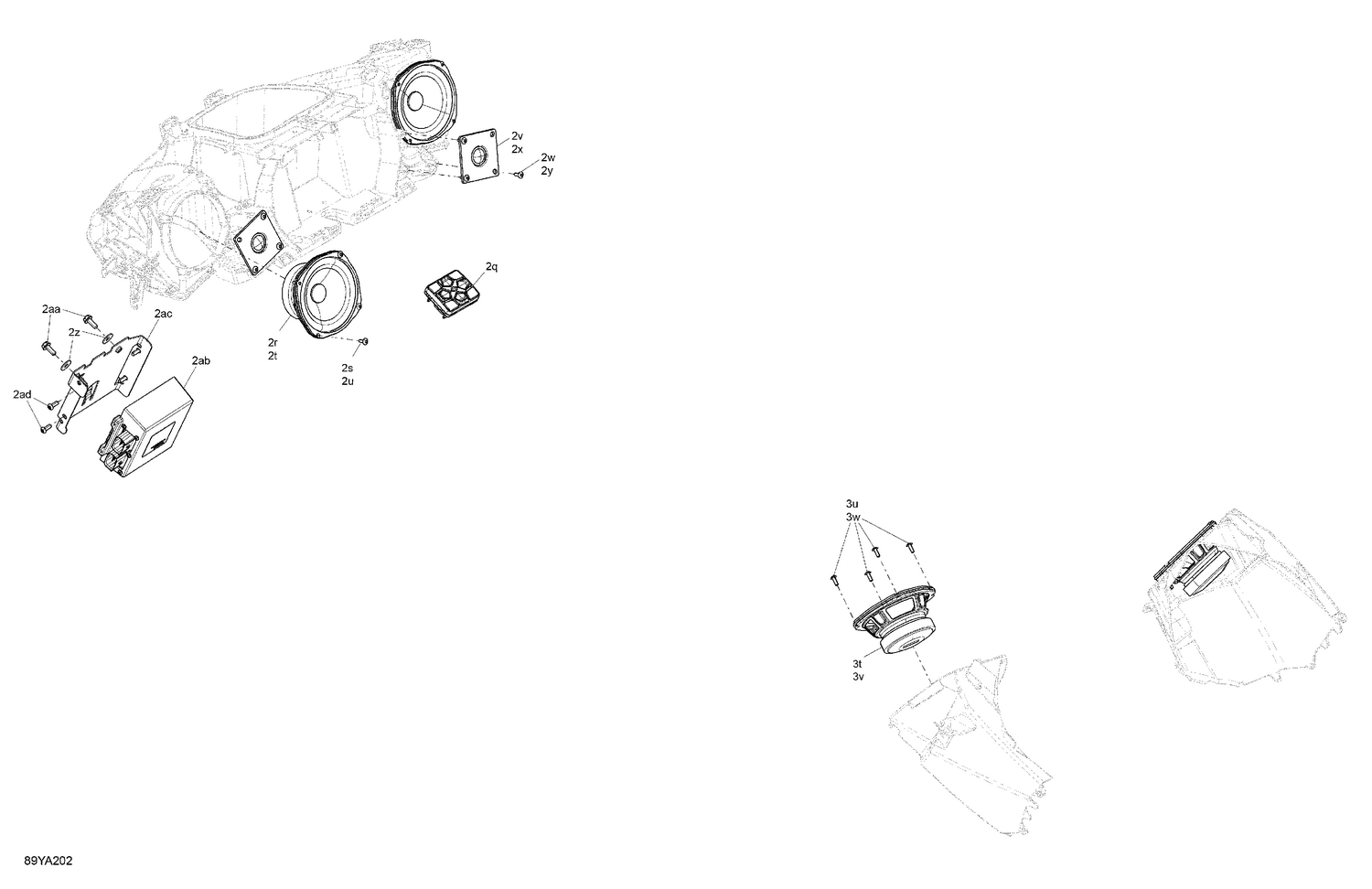

08- Electric - Audio System - Except North America
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2aa | 210261650 | Hex. Flange Screw M6 X 16 |
| 2ab | 710006566 | Amplifier 6 x 20 Watts |
| 2ac | 710005814 | Amplifier Holder |
| 2ad | 235551454 | Screw-Torx Button Head M5 X 14 |
| 2q | 710006793 | Audio Keypad |
| 2r | 710005433 | Haut-Parleur 4.5" |
| 2s | 250001131 | Torx Truss PT K40 x 12 |
| 2t | 710005433 | Haut-Parleur 4.5" |
| 2u | 250001131 | Torx Truss PT K40 x 12 |
| 2v | 710006796 | Loudspeaker Tweeter |
| 2w | 250001131 | Torx Truss PT K40 x 12 |
| 2x | 710006796 | Loudspeaker Tweeter |
| 2y | 250001131 | Torx Truss PT K40 x 12 |
| 2z | 234062670 | Stainless Steel Flat Washer |
| 3t | 710005433 | Haut-Parleur 4.5" |
| 3u | 250000577 | Torx Truss Screw K40 X 12 |
| 3v | 710005433 | Haut-Parleur 4.5" |
