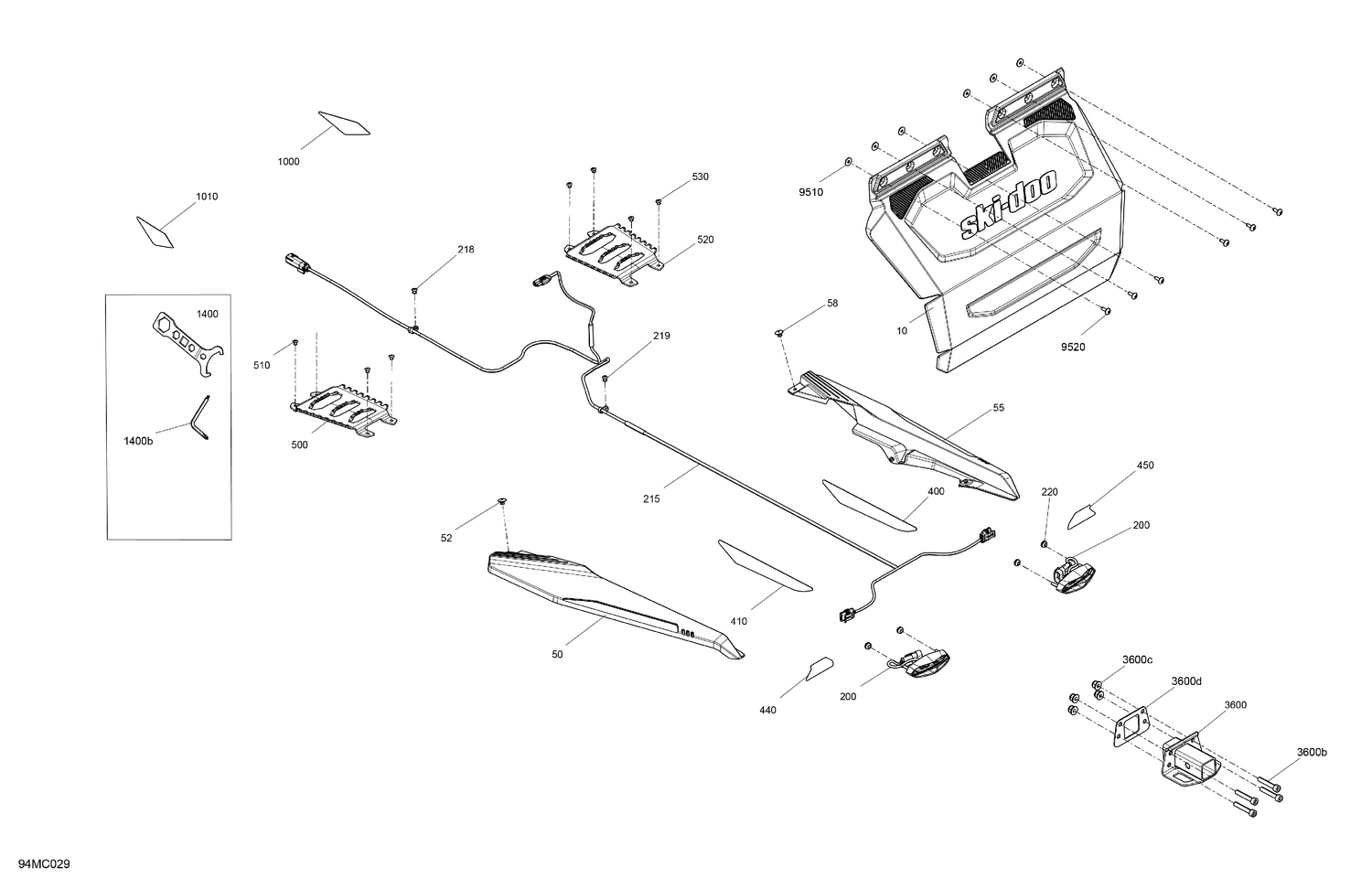

09- Miscellaneous - Utilities
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520003648 | Short Snow Guard This part replaces 520001712. |
| 50 | 520001941 | LH Rear Guard |
| 52 | 293150103 | Pop Rivet 3/16" |
| 55 | 520001942 | RH Rear Guard |
| 58 | 293150103 | Pop Rivet 3/16" |
| 200 | 520002636 | Tail Light |
| 215 | 515178633 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 500 | 520002896 | Deep Black, Passenger Footrest |
| 510 | 293150102 | Rivet 3/16" |
| 520 | 520002896 | Deep Black, Passenger Footrest |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3600b | 250001086 | Socket Head Screw M8 x 45 |
| 3600c | 233281466 | Elastic Flange Nut M8 |
| 3600d | 511001377 | Rear Chassis Reinforcement |
| 9510 | 250200025 | Washer M5 |
