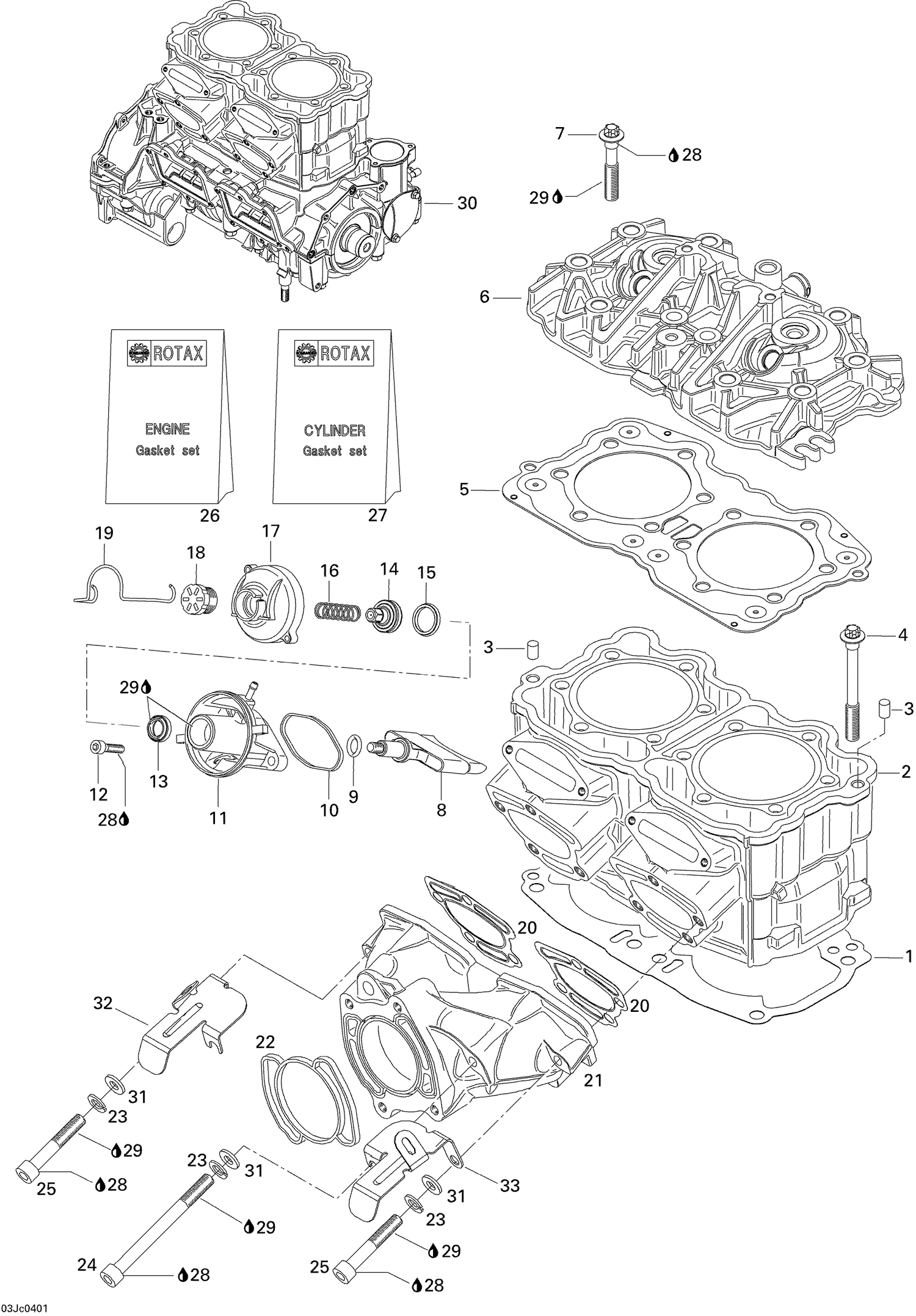

| Ref | Part Number | Description |
|---|
| 1 |
420931907 |
GASKET CYLINDER 0.8 MM - Call your local BRP dealership |
| 2 |
420613576 |
Cylinder With Sleeve, Silver |
| 2 |
421000205 |
REBUILD-CYLINDER 947-DI 2002 - Call your local BRP dealership |
| 3 |
420632010 |
Center Pin 8 X 12 |
| 4 |
420640293 |
TORX SCREW M10 X 94 - Call your local BRP dealership |
| 5 |
420931706 |
CYLINDER HEAD GASKET - Call your local BRP dealership |
| 6 |
420613681 |
Head Cylinder, Silver |
| 7 |
420640308 |
TORX SCREW M10 X 60 - Call your local BRP dealership |
| 8 |
420854540 |
EXHAUST VALVE - Call your local BRP dealership |
| 9 |
420250462 |
O-RING - Call your local BRP dealership |
| 10 |
420931670 |
RUBBER GASKET - Call your local BRP dealership |
| 11 |
420854555 |
Valve Housing |
| 12 |
205062560 |
Socket Head Screw M6 X 25 |
| 13 |
420931970 |
SEALING RING - Call your local BRP dealership |
| 14 |
420854560 |
EXHAUST VALVE PISTON - Call your local BRP dealership |
| 15 |
420931950 |
GROOVED RING - Call your local BRP dealership |
| 16 |
420939130 |
COMPRESSION SPRING - Call your local BRP dealership |
| 17 |
420911559 |
Valve Cover This part replaces 420911558. |
| 18 |
420241222 |
SCREW ADJUSTMENT - Call your local BRP dealership |
| 19 |
420838083 |
SPRING CLIP - Call your local BRP dealership |
| 20 |
420931653 |
EXHAUST MANIFOLD GASKET - Call your local BRP dealership |
| 21 |
420979607 |
Exhaust Manifold This part replaces 420979606. |
| 22 |
420931990 |
EXHAUST GASKET - Call your local BRP dealership |
| 23 |
234101601 |
Helicoidal Lock Washer M10 |
| 24 |
420941483 |
SOCKET HEAD SCREW M10 X 110 - Call your local BRP dealership |
| 25 |
205006060 |
SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership |
| 26 |
420888134 |
ENGINE GASKET SET - Call your local BRP dealership |
| 27 |
420888139 |
CYLINDER GASKET SET - Call your local BRP dealership |
| 28 |
293800060 |
Loctite 243, 10 ml |
| 29 |
413707000 |
Dow Corning 111, 150 g |
| 31 |
234000600 |
Flat Washer 10 mm, Stainless |
| 32 |
273000170 |
DUCT SUPPORT, MAG - Call your local BRP dealership |
| 420931905 |
GASKET |
CYLINDER 0.5 MM - Call your local BRP dealership 420931905 |
| 420931906 |
GASKET |
CYLINDER 0.6 MM - Call your local BRP dealership 420931906 |
| 420931908 |
GASKET |
CYLINDER 0.7 MM - Call your local BRP dealership 420931908 |
