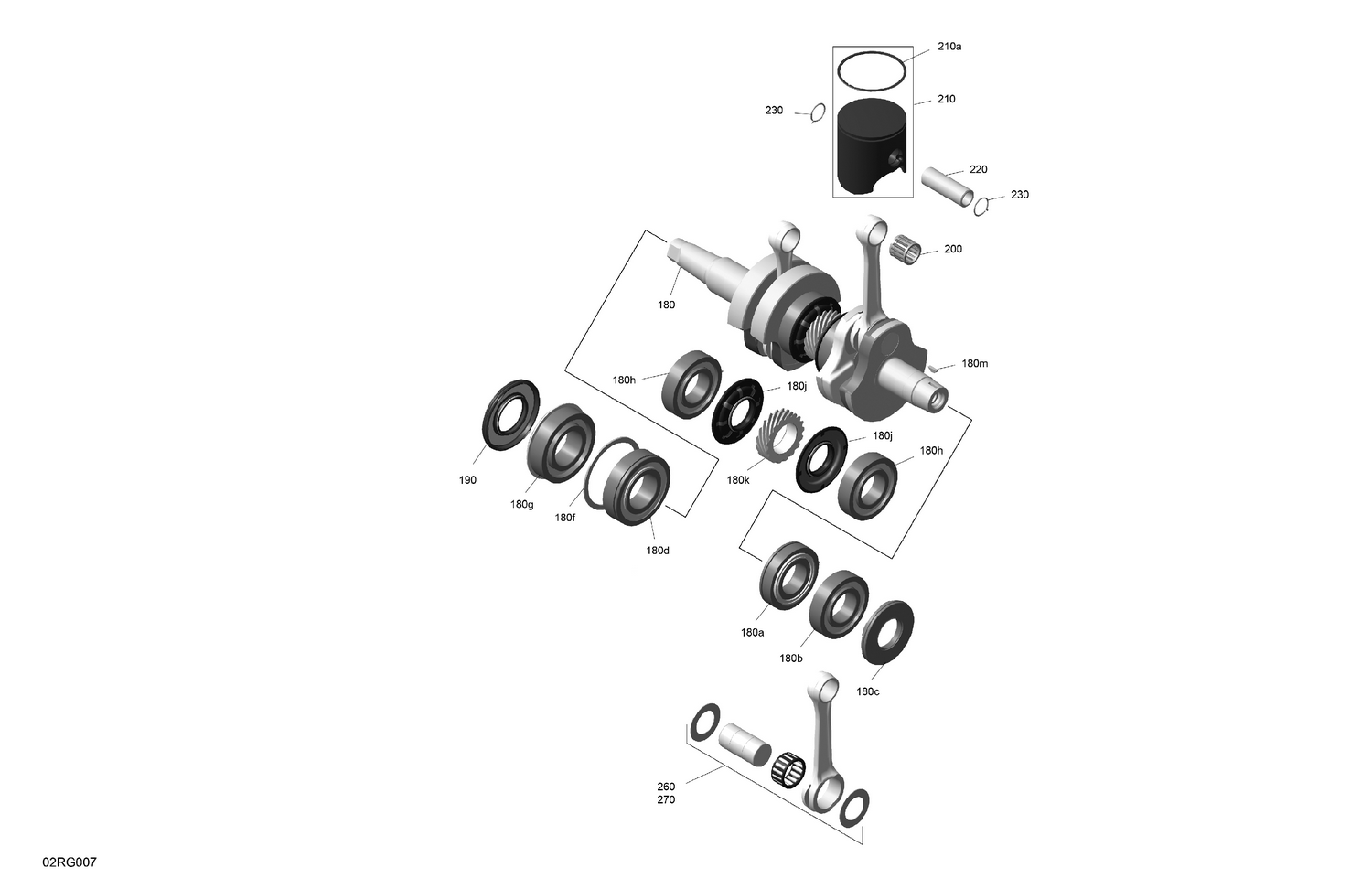

01- ROTAX - Crankshaft and Pistons
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 180a | 420832176 | Bearing_Ball |
| 180b | 420832575 | Ball Bearing 6207 |
| 180c | 420831955 | Oil Seal |
| 180d | 420832672 | Ball Bearing Sealed, 6208 |
| 180f | 420926190 | Retaining disk |
| 180g | 420832702 | Ball bearing 6208 |
| 180h | 420832575 | Ball Bearing 6207 |
| 180j | 420931455 | Oil seal |
| 180k | 420834566 | Central Gear |
| 180m | 420246015 | Woodruff Key |
| 190 | 420931284 | Oil Seal |
| 200 | 420832445 | Piston pin bearing |
| 210a | 420815470 | Semi Trapez Ring |
| 220 | 420916412 | Piston Pin |
| 230 | 420845106 | Piston Circlip |
| 260 | 420890958 | Rod repair kit (PTO side) |
