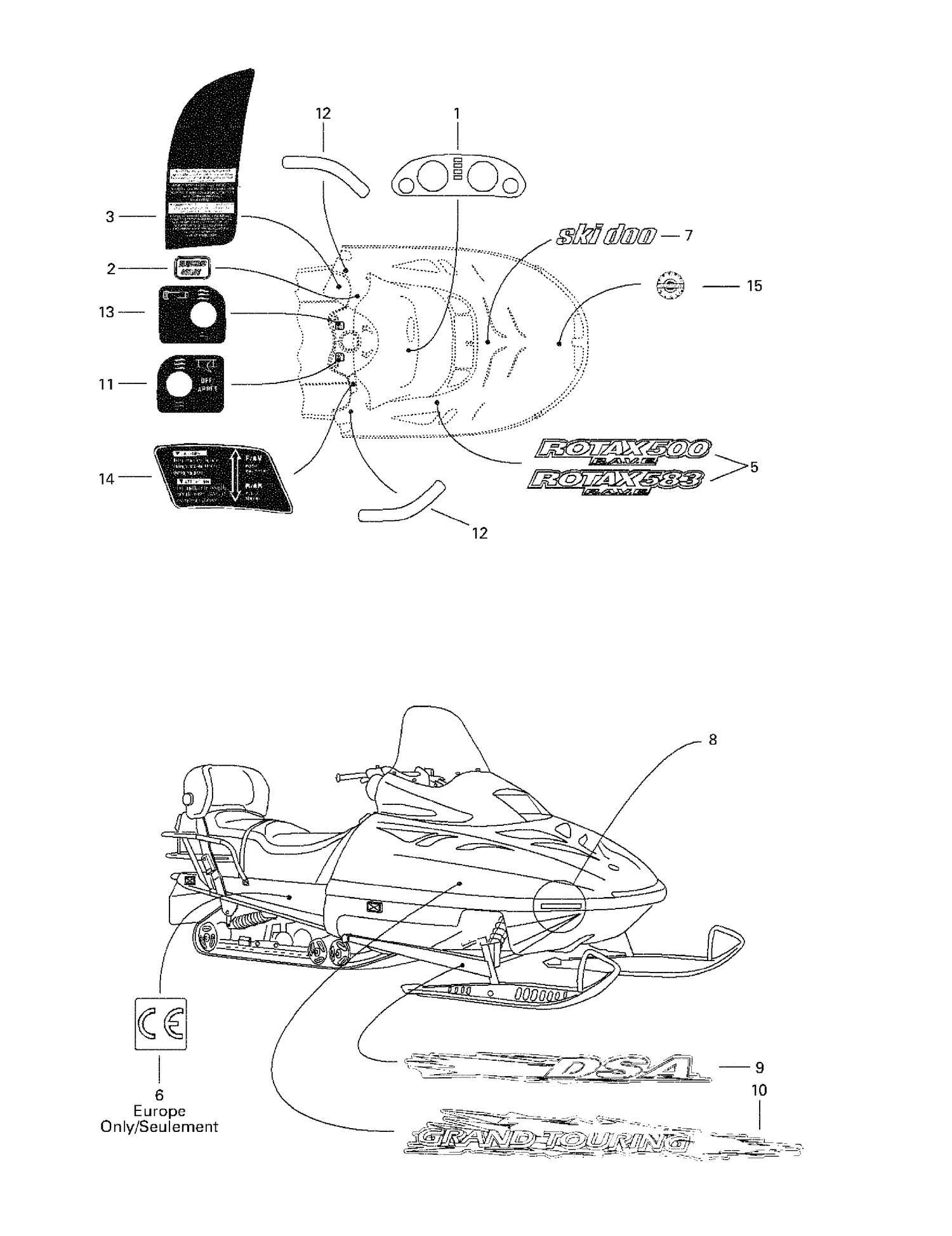

09- Decals
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 418000818 | Dash Decal |
| 2 | 418001300 | Electric Decal |
| 3 | 414935000 | Label - Warning (2 pass.) |
| 7 | 418000007 | Décalque «Ski-Doo» |
| 8 | 861805523 | Yellow, LH/RH Rear Reflector Kit This part replaces 418001009. |
| 9 | 415113500 | Arm Decal Kit |
| 10 | 415113400 | Side Decal Kit |
| 11 | 414898400 | Heat Thumb Decal |
| 12 | 414949110 | Reflector Decal Kit (Blue) |
| 13 | 414898500 | Heatgrip Decal |
| 14 | 414901600 | Reverse Decal |
| 414949111 | Decal | Reflector Kit (Red) (Europe) 414949111 |
