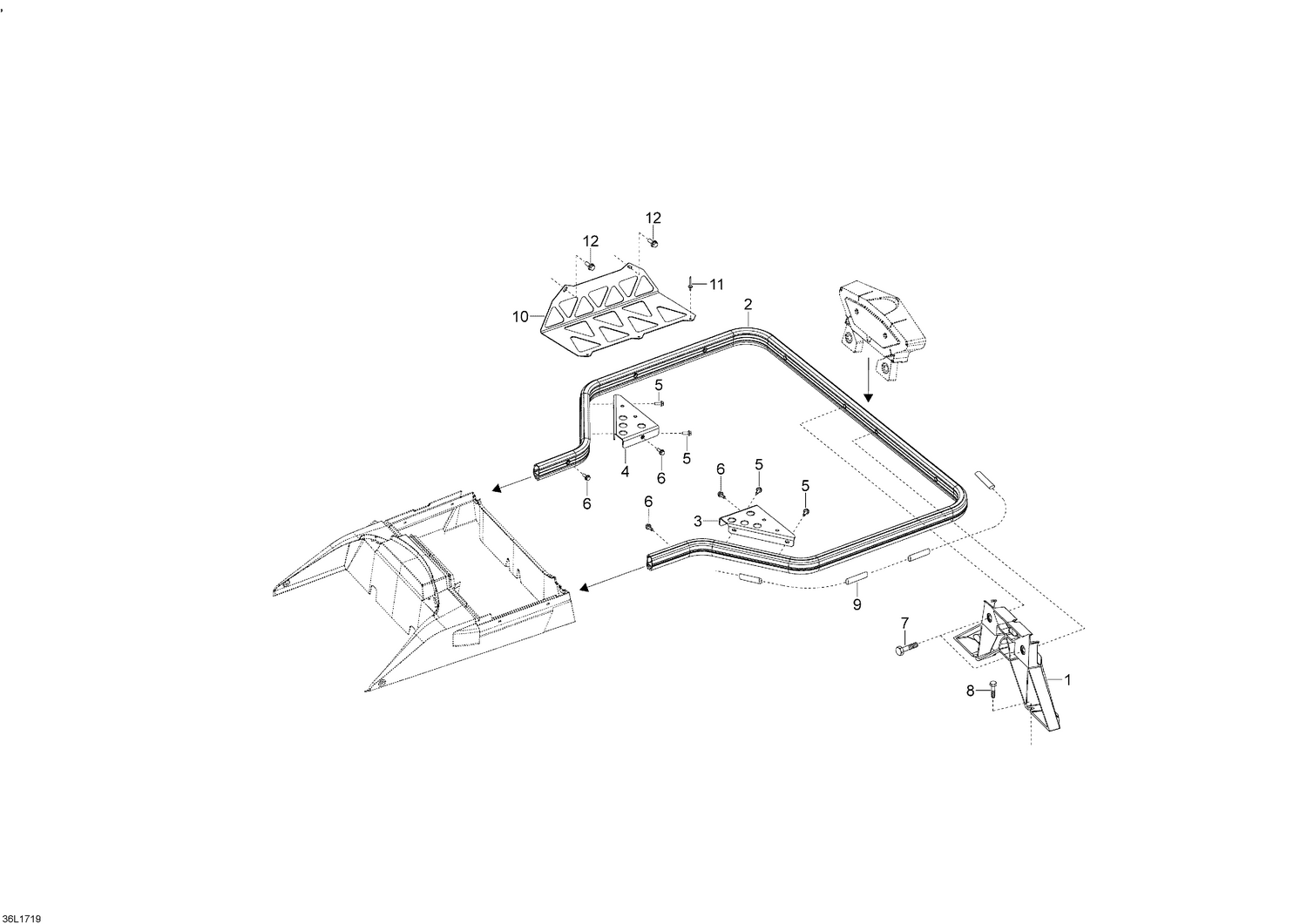

09- Cargo Rack
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000559 | Rear Light Support |
| 2 | 511000800 | Orange Rack Bar |
| 3 | 511000803 | Orange LH Rack Bar Fastening Plate |
| 4 | 511000804 | Orange RH Rack Bar Fastening Plate |
| 5 | 207662056 | Hex. Flange Screw M6 x 20 |
| 6 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 7 | 207663054 | Hex. Flange Screw M6 X 30 |
| 8 | 207662056 | Hex. Flange Screw M6 x 20 |
| 9 | 511000657 | SUPPORT HOSE - Call your local BRP dealership |
| 10 | 511000857 | Black Alpine Storage Plate |
| 11 | 390909200 | Avex Rivet |
