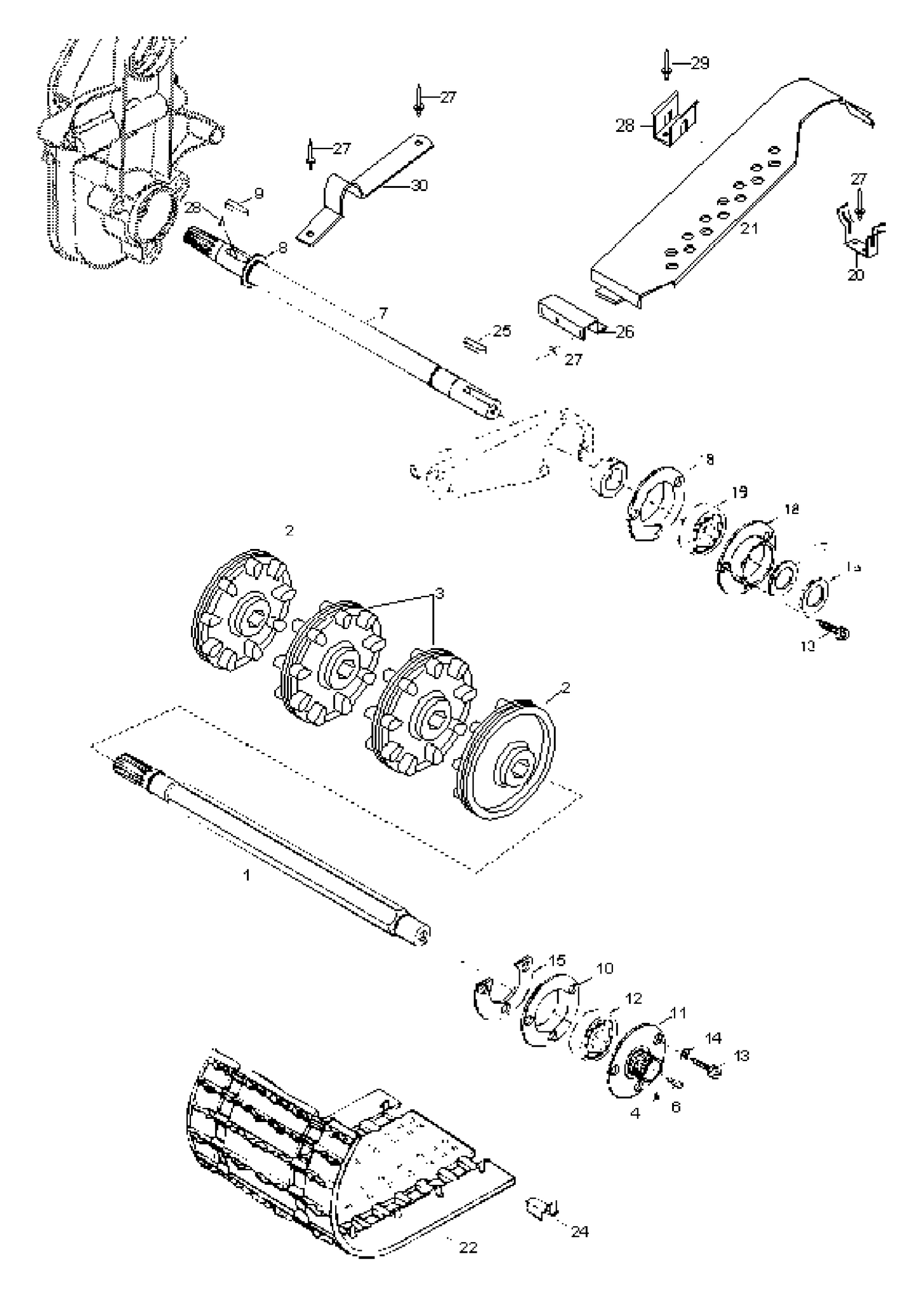

05- Drive Axle
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5241707 | Drive axle |
| 2 | 414990800 | Half sprocket 9 teeth |
| 3 | 414663900 | Sprocket |
| 4 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
| 6 | 542013 | Speed drive insert |
| 7 | 5244640 | Clutch shaft |
| 8 | 4187194 | Fixing Washer |
| 9 | 418740 | Key |
| 10 | 5341953 | Bearing house |
| 11 | 5341957 | Cover weld. |
| 12 | 31009 | Bearing ball |
| 13 | 40305 | Allen screw M8x20 |
| 14 | 20014 | Spring washer |
| 15 | 5441956 | Thrust ring |
| 16 | 31010 | Shim |
| 17 | 3125351 | Shim |
| 18 | 5341388 | Bearing housing |
| 19 | 31122525G | Bearing |
| 20 | 518202100 | Bracket |
| 21 | 5343939 | Belt guard |
| 24 | 415129528 | Track Guide This part replaces 500003400. |
| 25 | 619690074 | KEY - Call your local BRP dealership This part replaces 418763. |
| 26 | 5341317 | Support plate |
| 27 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 28 | 5172819052 | Holder of driven belt |
| 29 | 36083 | Rivet |
