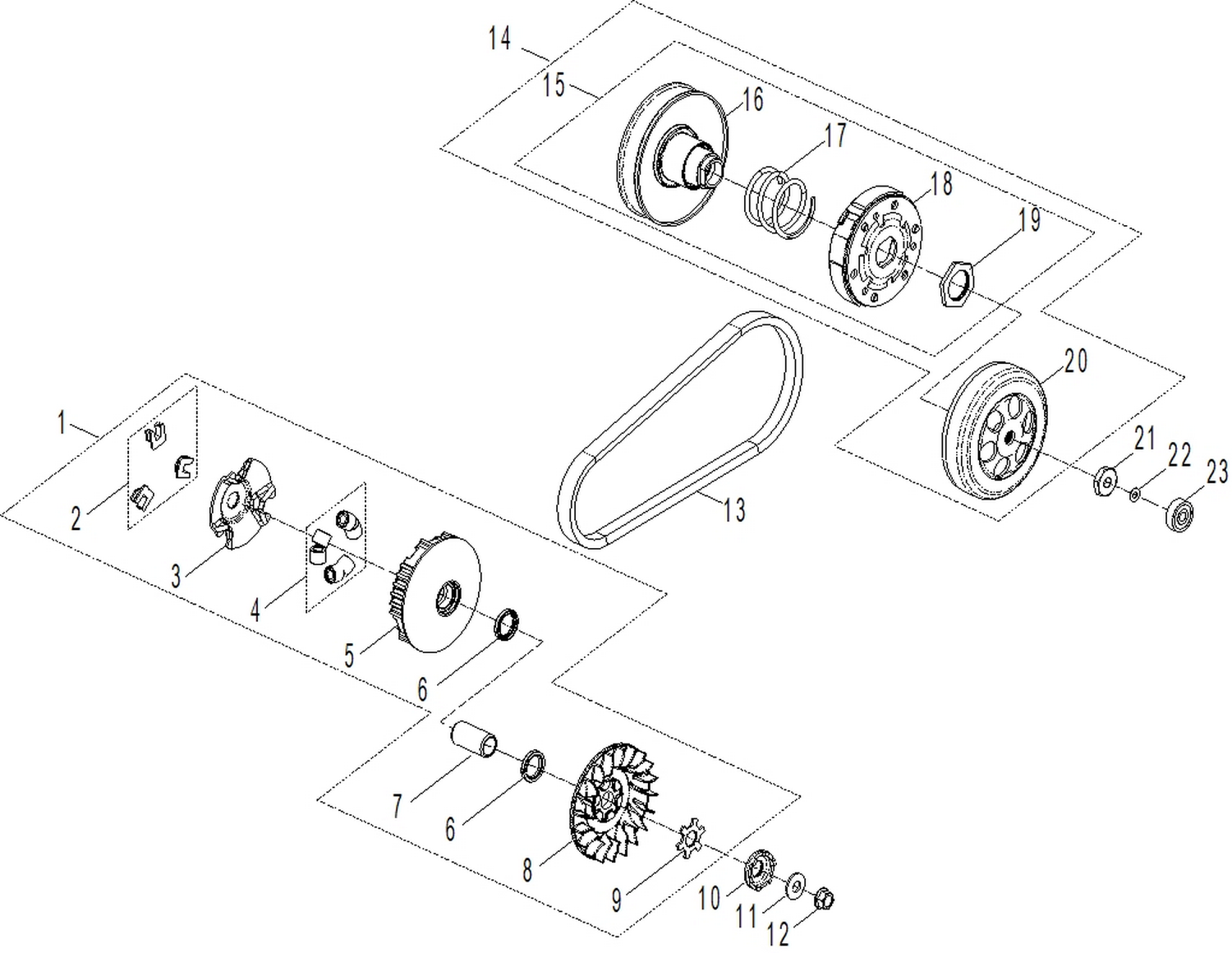

04- Drive - Drive Clutch 110
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A2213318S000 | Slider Set |
| 3 | A2213118S000 | Ramp Plate |
| 4 | A2212018S000 | Roller SET (6.6g) |
| 5 | A2211018S000 | Sliding Plate Set |
| 6 | A96500212804 | Oil Seal |
| 7 | A96401162142 | Grommet |
| 8 | A2210218S000 | Fixed Plate |
| 9 | A2215018S000 | Clamp Washer |
| 10 | A22140112000 | Single Way Clutch |
| 11 | A941251024020000 | Conical Spring Washer |
| 12 | A94050100000C3 | Hexagonal Head Nut |
| 13 | A2310018S000 | Belt |
| 15 | A2220018S00A | Transmission Set |
| 16 | A2201118S000 | Driven Pulley |
| 17 | A2323318S000 | Compression Spring |
| 18 | A2234918S000 | Clutch Ass'y |
| 19 | A90202240000B3 | Hexagonal Nut |
| 20 | A2210018S000 | Clutch Case |
| 21 | A94001100004C3 | Hexagonal Nut M10 x 24 |
| 22 | A9321000630 | O-RIng |
