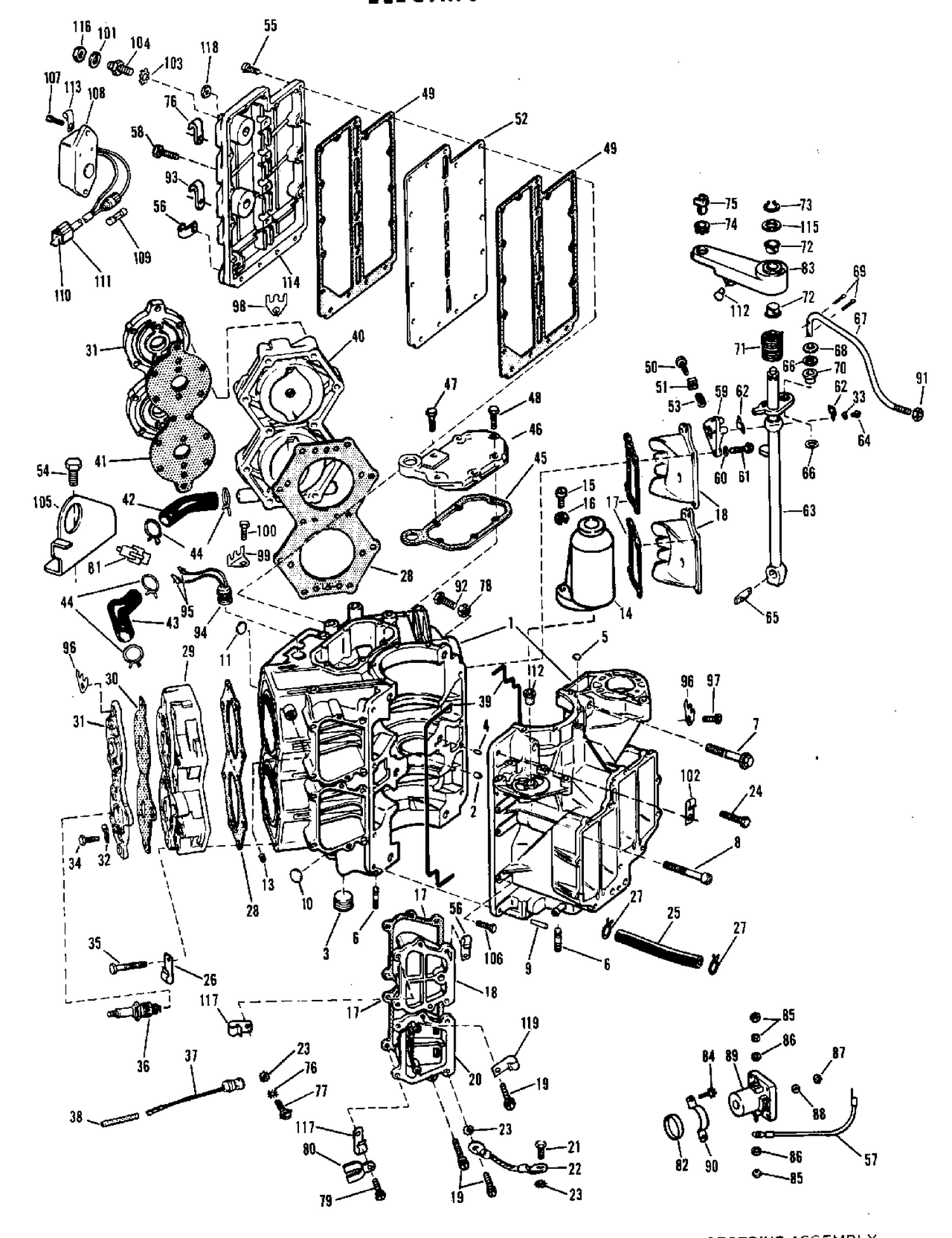

| Ref | Part Number | Description |
|---|
| 1 |
0382730 |
CYLINDER & C/CASE ASSY. |
| 3 |
0305121 |
PLUG, Cylinder |
| 4 |
0305124 |
PLUG |
| 6 |
0310872 |
STUD |
| 8 |
0305069 |
SCREW, Center |
| 10 |
0316221 |
PLUG, Core |
| 11 |
0306044 |
PLUG |
| 12 |
0305068 |
BUSHING |
| 14 |
0382959 |
BUSHING & HOUSING |
| 15 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 17 |
0307133 |
GASKET |
| 18 |
0310532 |
COVER BY-PASS |
| 19 |
0300646 |
VIS, ancrage |
| 20 |
0323045 |
COVER, By-pass This part replaces 0311240. |
| 22 |
0376349 |
FIL, masse |
| 24 |
0300646 |
VIS, ancrage |
| 25 |
0307139 |
HOSE, Cyl. to crankcase |
| 26 |
0310947 |
CLAMP |
| 28 |
0306048 |
GASKET |
| 29 |
0312936 |
CYLINDER HEAD, Starboard |
| 30 |
0318335 |
COVER, Cylinder head This part replaces 0307709. |
| 31 |
0307710 |
COVER |
| 33 |
0306358 |
FLAT WASHER, Helm mounting |
| 34 |
0300646 |
VIS, ancrage |
| 35 |
0307267 |
SCREW |
| 36 |
0381992 |
SPARK PLUG, AC V4 OFF |
| 36 |
0383181 |
SPARK PLUG, A-C V4 off |
| 37 |
0378176 |
SWITCH TEM P |
| 39 |
SEAL, |
Cylinder to crankcase |
| 40 |
0312935 |
CYLINDER HEAD, Port |
| 41 |
0318334 |
GASKET, Cover port This part replaces 0307257. |
| 42 |
0305644 |
HOSE, Cylinder head port |
| 43 |
0305645 |
HOSE, Cylinder head starboard |
| 44 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 45 |
0313988 |
GASKET, Water pass cover |
| 46 |
0313964 |
COVER, Water passage |
| 48 |
0309330 |
SCREW, Vacuum switch |
| 49 |
0305176 |
GASKET |
| 50 |
0312374 |
SCREW, Idle adj. |
| 52 |
0305746 |
COVER, Exh.inner |
| 54 |
0314515 |
SCREW |
| 55 |
0306049 |
SCREW |
| 56 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 57 |
0380096 |
CABLE, Starter to solenoid |
| 59 |
0313735 |
BRACKET, Control shaft |
| 60 |
0329241 |
RONDELLE This part replaces 0306482. |
| 61 |
0303398 |
VIS, support This part replaces 0302030. |
| 62 |
0313686 |
CLAMP, Bearing |
| 63 |
0313717 |
SHAFT, Control throttle |
| 64 |
0313684 |
SCREW, Bearing clamp |
| 65 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 66 |
0204757 |
BOW WASHER |
| 67 |
0313737 |
ROD, Throttle control |
| 68 |
0120590 |
WASHER LEVER ARM, Pulley |
| 71 |
0313739 |
SPRING, Control shaft |
| 73 |
0554516 |
RET. RING, Shaft to lever |
| 74 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 75 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 76 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 77 |
0328731 |
VIS, câble de verrouillage This part replaces 0307055. |
| 79 |
0306409 |
VIS, collecteur vers carter-moteur |
| 80 |
0311321 |
CLAMP, Cable |
| 82 |
0311217 |
MANCHON, solénoïde |
| 83 |
0313719 |
LEVER, Spark advance |
| 84 |
0303311 |
SCR,Clamp,eng cable |
| 90 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 91 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0314442. |
| 92 |
0314407 |
SCREW, Cylinder |
| 93 |
0310441 |
CLAMP, CPS lead |
| 94 |
0382700 |
THERMO SWITCH ASSY |
| 96 |
0313771 |
RET.,Leads |
| 97 |
0306419 |
SCREW |
| 98 |
0313773 |
RETAINER (#1 & COIL) CYLINDER HEAD, STARBOARD |
| 99 |
0313774 |
RETAINER CYL. HEAD COVER |
| 100 |
0552062 |
SCREW, Clamp |
| 102 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 105 |
0313718 |
LIFT BRACKET, Cylinder |
| 106 |
0309263 |
BOLT, Handle This part replaces 0307342. |
| 107 |
0304607 |
PULSE PACK SCREW ASSY |
| 108 |
0581580 |
VOLTAGE REGULATOR This part replaces 0580651. |
| 109 |
0510714 |
FUSE (3AB 30 AMP) |
| 112 |
0307947 |
BUMPER, Lever |
| 113 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 114 |
0313989 |
COVER, Exhaust outer |
| 115 |
0314409 |
WASHER, Ret. to control shaft |
| 116 |
0311375 |
NUT |
| 118 |
0308706 |
NUT |
| 119 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
